Home / BRP / 2011 / Rave / Rave SC 600 E-TEC, 2011 / 07- Take Apart Shock rear

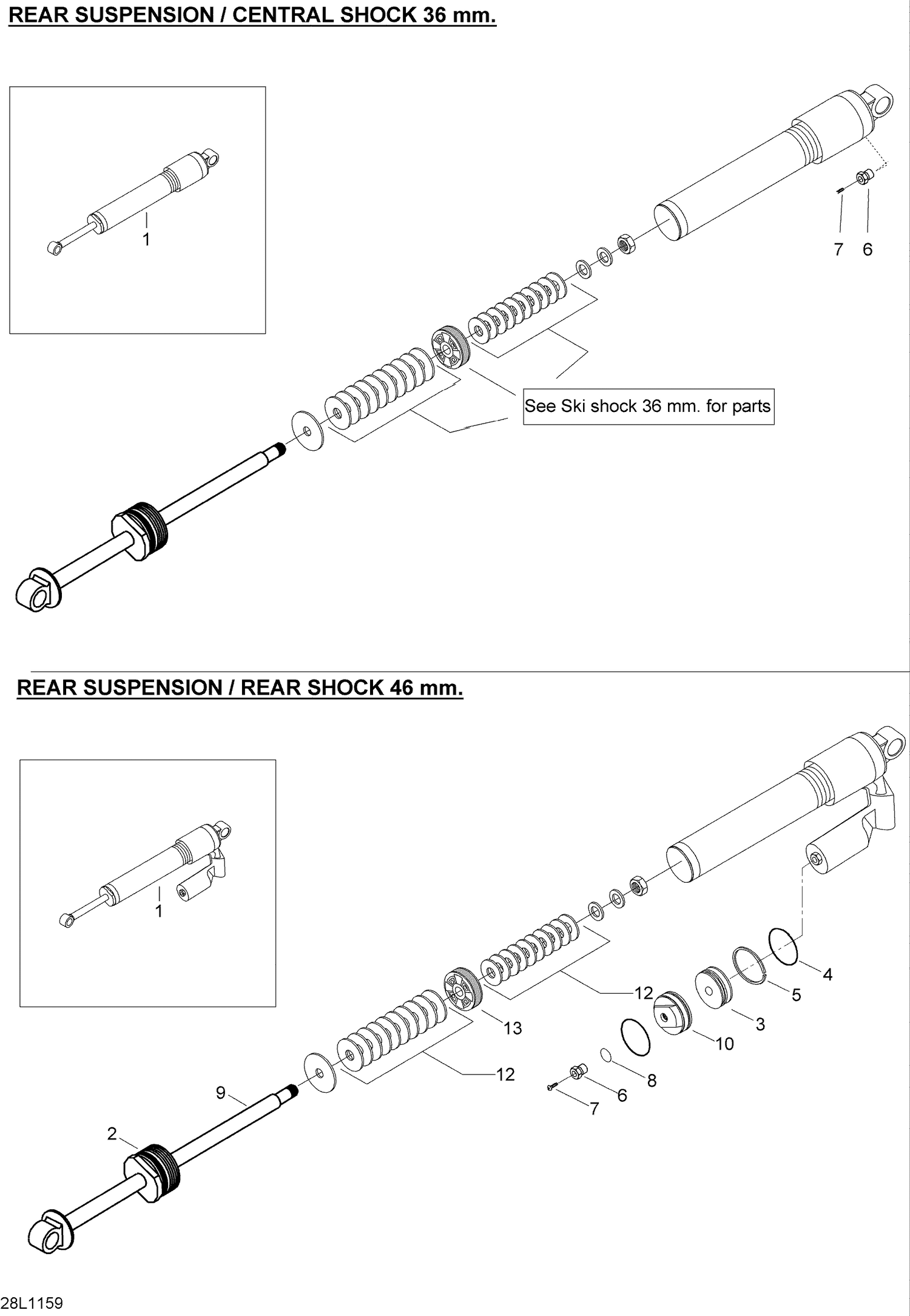

07- Take Apart Shock rear

07- Take Apart Shock rear

Parts (71)

RefPart NumberDescription
1 619330004 Shock, front arm (cal.503191863)
1 619330015 Shock rear, service (46 TA, PPS) - Call your local BRP dealership
2 230060 Seal carrier assy 46 mm.
3 Not Available As Spare Part - Floating piston
4 415093807 O-Ring
5 503189006 PISTON RING - Call your local BRP dealership
6 505070398 Air Valve
7 505070399 Screw
8 505070400 O-Ring
9 619300021 Rod ass'y, rear arm
9 Not Available As Spare Part - Rod ass'y, front arm
10 619300009 Seal carrier assy
12 230029 Shim 46 mm. 20 X 0,114
12 230030 Shim 46 mm. 20 X 0,152
12 230031 Shim 46 mm. 20 X 0,203
12 230032 Shim 46 mm. 20 X 0,254
12 230033 Shim 46 mm. 34 X 0,114
12 230034 Shim 46 mm. 34 X 0,152
12 230035 Shim 46 mm. 34 X 0,203
12 230036 Shim 46 mm. 34 X 0,254
12 230037 Shim 46 mm. 36 X 0,114
12 230040 Shim 46 mm. 38 X 0,152
12 230041 Shim 46 mm. 38 X 0,203
12 230042 Shim 46 mm. 38 X 0,254
12 230082 Shim 46 mm. 32 X 0,114
12 503189011 Shim 46 mm. 22 X 0,114
12 503189014 Shim 46 mm. 22 X 0,254
12 503189015 Shim 46 mm. 22 X 0,305
12 503189016 Shim 46 mm. 24 X 0,114
12 503189017 Shim 46 mm. 24 X 0,152
12 503189018 Shim 46 mm. 24 X 0,203
12 503189019 Shim 46 mm. 24 X 0,254
12 503189020 Shim 46 mm. 24 X 0,305
12 503189021 Shim 46 mm. 26 X 0,114
12 503189023 Shim 46 mm. 26 X 0,203
12 503189027 Shim 46 mm. 28 X 0,152
12 503189030 Shim 46 mm. 28 X 0,305
12 503189031 Shim 46 mm. 30 X 0,114
12 503189033 Shim 46 mm. 30 X 0,203
12 503189035 Shim 46 mm. 30 X 0,305
12 503189036 Shim 46 mm. 36 X 0,152
12 503189038 Shim 46 mm. 36 X 0,254
12 503189039 Shim 46 mm. 40 X 0,152
12 503189040 Shim 46 mm. 40 X 0,203
12 503189041 Shim 46 mm. 40 X 0,254
12 619300059 Shim 46 mm. 32 X 0,254
12 619300060 Shim 46 mm. 17 X 0,114
12 619300067 Shim 46 mm. 18 X 0,152
12 619300068 Shim 46 mm. 18 X 0,114
12 619300069 Shim 46 mm. 17 X 0,203
12 619300070 Shim 46 mm. 34 X 0,305
12 619300097 Shim 46 mm. 20 X 0,305
12 619300098 Shim 46 mm. 22 X 0,203
12 619300099 Shim 46 mm. 26 X 0,254
12 619300100 Shim 46 mm. 26 X 0,305
12 619300101 Shim 46 mm. 28 X 0,114
12 619300102 Shim 46 mm. 28 X 0,203
12 619300103 Shim 46 mm. 28 X 0,254
12 619300104 Shim 46 mm. 30 X 0,152
12 619300105 Shim 46 mm. 36 X 0,305
12 619300106 Shim 46 mm. 38 X 0,305
12 619300107 Shim 46 mm. 40 X 0,305
12 619300113 Shim 46 mm. 30 X 0,254
12 619300140 Shim 46 mm. 22 X 0,152
12 619300141 Shim 46 mm. 26 X 0,152
12 619300142 Shim 46 mm. 36 X 0,203
12 Not Available As Spare Part - Shim 46 mm. 17 X 0,152
13 230039 Piston 46 mm. 2.0 mm
13 503189002 Piston 46 mm. 1.7 mm
13 503189003 Piston 46 mm. 1.2 mm
13 Not Available As Spare Part - Piston 46 mm. 2.2 mm
