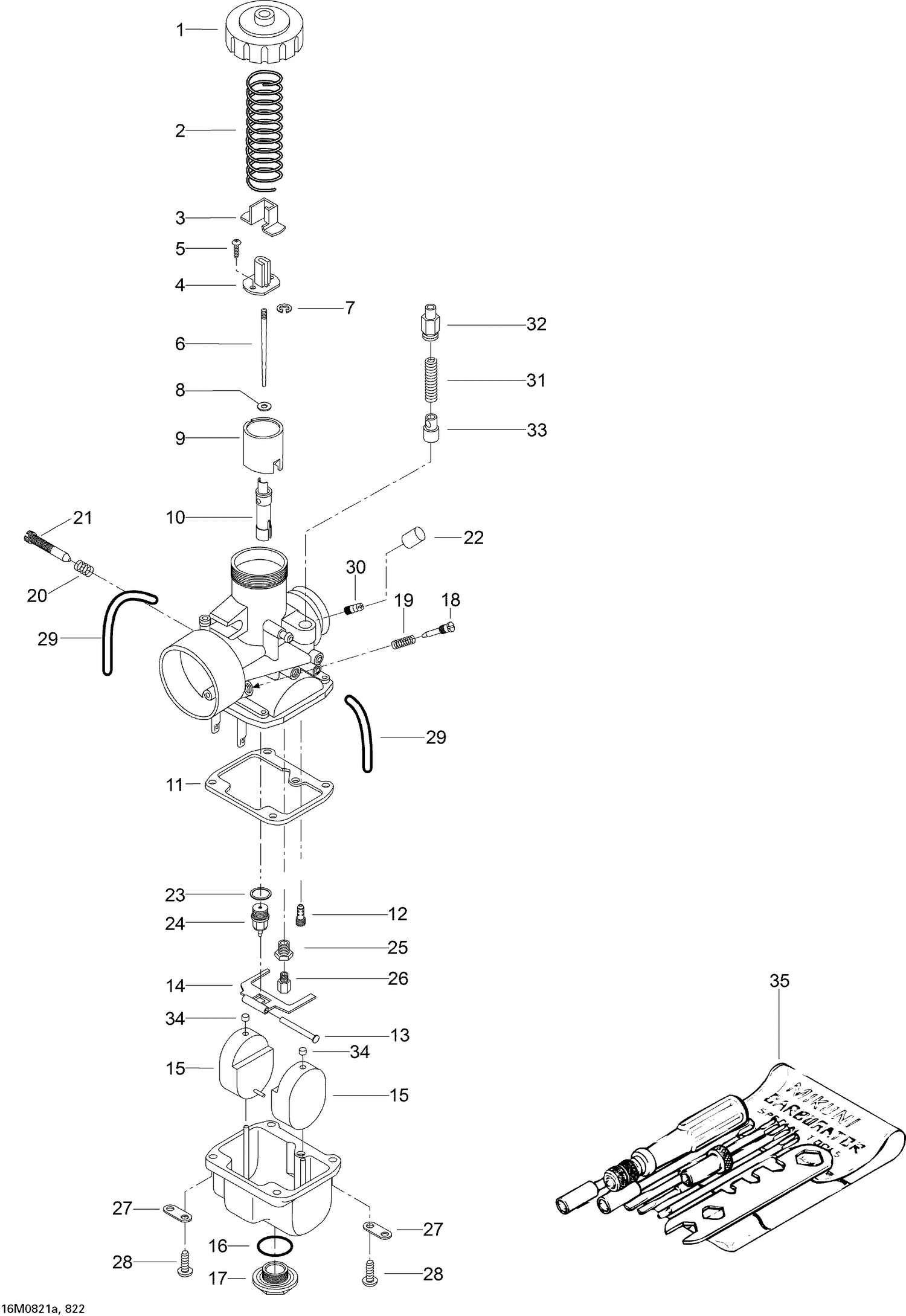

02- Carburetor SWT 550F
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404103700 | Cover |
| 2 | 404154800 | Spring |
| 3 | 404122100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership |
| 5 | 404121300 | Screw With Washer |
| 6 | 404101900 | NEEDLE JET J8-6DH04 - Call your local BRP dealership |
| 7 | 404152400 | E-Ring |
| 8 | 404117000 | Packing |
| 9 | 404128400 | Piston Valve 2.5 |
| 10 | 404107000 | NEEDLE JET - Call your local BRP dealership |
| 11 | 404104200 | Gasket |
| 12 | 404109100 | PILOT JET PJ40 - Call your local BRP dealership |
| 13 | 404103300 | Lever Pin |
| 14 | 404107600 | Float Lever |
| 15 | 404107100 | FLOAT - Call your local BRP dealership |
| 16 | 404107300 | O-Ring |
| 17 | 404107400 | Drain Plug Screw |
| 18 | 404102300 | Air Screw |
| 19 | 404101800 | Spring |
| 20 | 404101700 | Spring |
| 21 | 404102800 | IDLE SPEED SCREW - Call your local BRP dealership |
| 22 | 404156600 | Cap |
| 23 | 404101600 | Seat Washer |
| 24 | 404147500 | Needle Valve 1.2 |
| 25 | 404105500 | Guide Screw |
| 26 | 404119000 | Main Jet 190 |
| 27 | 404103000 | PLATE - Call your local BRP dealership |
| 28 | 404102000 | Screw With Lock Washer |
| 29 | 404160100 | AIR VENT TUBE - Call your local BRP dealership |
| 30 | 404127600 | NIPPLE - Call your local BRP dealership |
| 31 | 404127400 | SPRING - Call your local BRP dealership |
| 32 | 404161100 | GUIDE HOLDER - Call your local BRP dealership |
| 33 | 404160400 | PLUNGER ASS'Y - Call your local BRP dealership |
| 34 | 404105800 | Cap |
