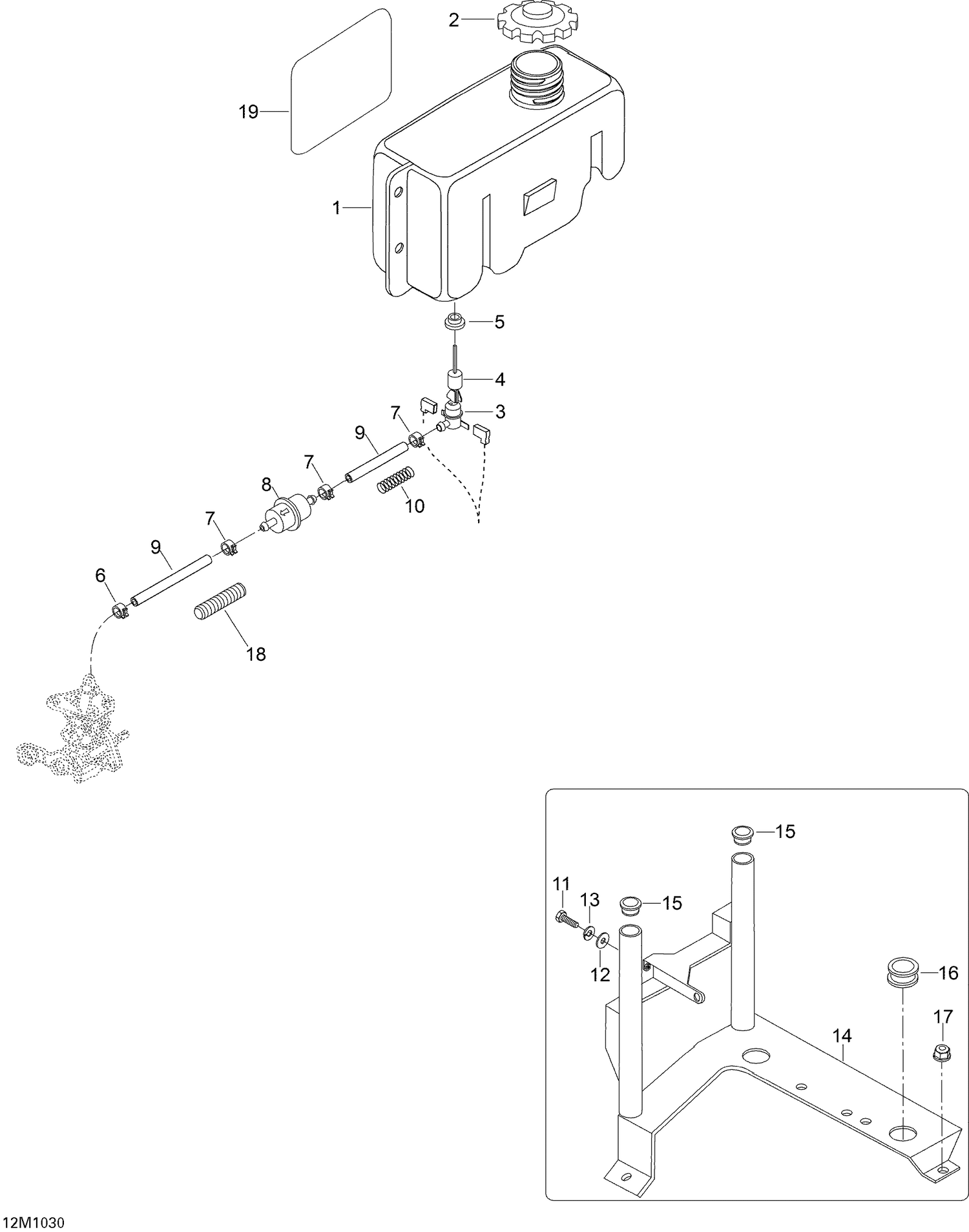

| Ref | Part Number | Description |
|---|
| 1 |
M5142700 |
Oil Tank |
| 2 |
519000044 |
CAP - Call your local BRP dealership |
| 3 |
605452095 |
OIL SENSOR - Call your local BRP dealership |
| 4 |
Not |
Available As Spare Part - Float |
| 5 |
570023000 |
Insulating Ring |
| 6 |
414420700 |
Spring Clamp |
| 7 |
414415200 |
Spring Clamp |
| 8 |
414536500 |
Filter |
| 9 |
219704412 |
Polyurethane Hose, 8 Mm 3000Mm Long |
| 10 |
519000065 |
SPRING - Call your local BRP dealership |
| 11 |
207161044 |
HEX. SCREW M6 X 10 - Call your local BRP dealership |
| 12 |
234062410 |
Flat Washer 6 mm This part replaces M20009. |
| 13 |
234161471 |
Lock Washer M6, Black |
| 14 |
605355528 |
Oil Tank Support |
| 15 |
M28136 |
PLUG - Call your local BRP dealership |
| 16 |
M5446766 |
Passe-Fils *Grommet |
| 17 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 18 |
M28015 |
HOUSING - Call your local BRP dealership |
