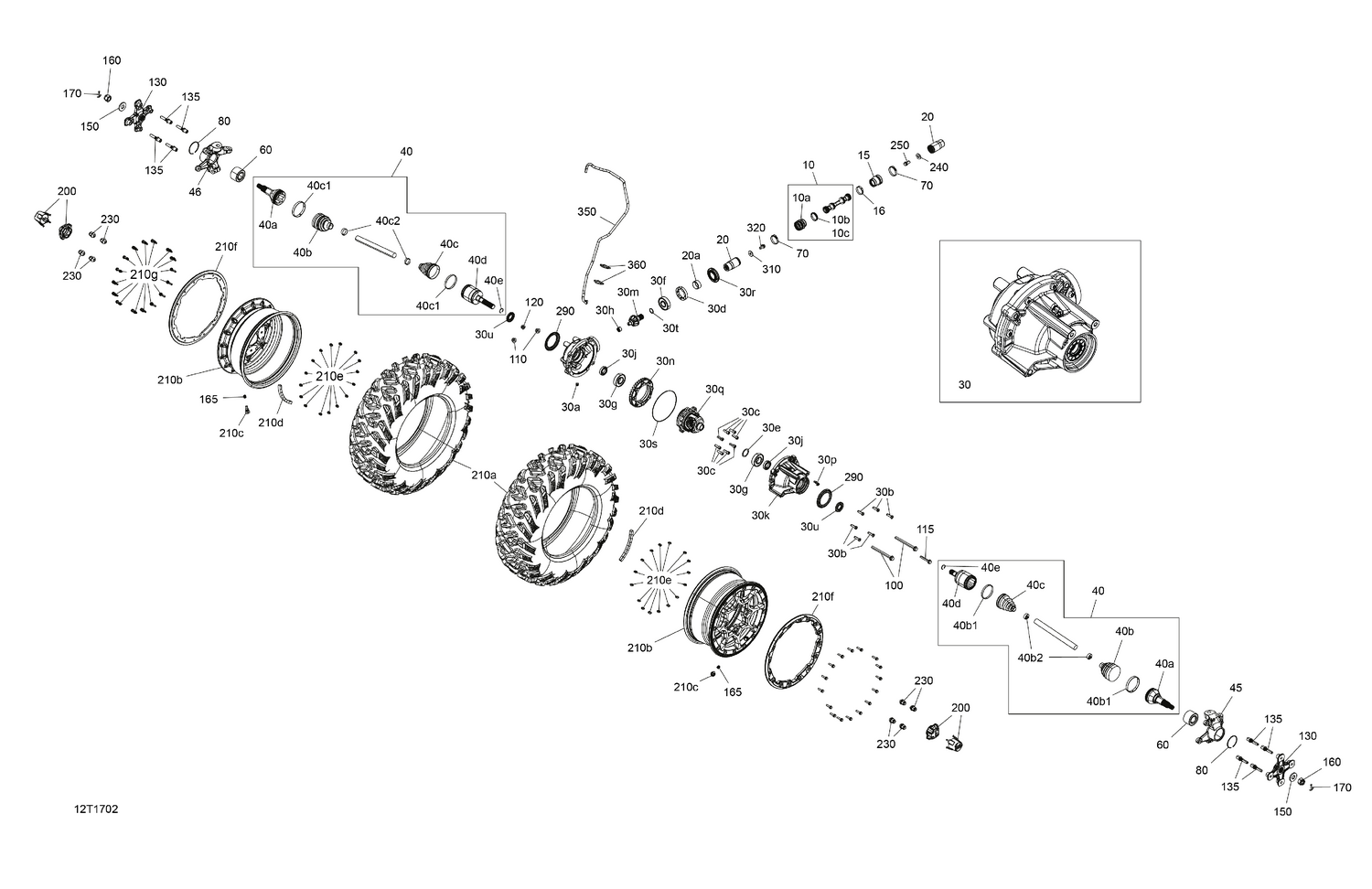

07- Drive System, Front - All Models
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10b | 509000045 | Oetiker Gear Clamp 36.1MM |
| 10c | 293650138 | Oetiker Gear Clamp 44.0MM |
| 15 | 705401093 | Rubber Boot |
| 16 | 293650199 | Oetiker Gear Clamp |
| 20a | 705400036 | Wear Ring |
| 30a | 705501885 | Drain Plug |
| 30b | 705401601 | Screw |
| 30c | 705401602 | Screw |
| 30d | 705401603 | Nut |
| 30e | 705401604 | Shim |
| 30f | 705401605 | Ball Bearing |
| 30g | 705401606 | Ball Bearing |
| 30h | 705402848 | Ball Bearing This part replaces 705401607. |
| 30j | 705401608 | Ball Bearing |
| 30k | 705401610 | Front Cover |
| 30m | 705402841 | Pinion 10 Teeth This part replaces 705401791. |
| 30n | 705401612 | Gear 36 Teeth |
| 30p | 705401613 | Vent Valve |
| 30r | 705401615 | Oil Seal |
| 30s | 705401616 | Seal |
| 30t | 705401617 | O'Ring |
| 30u | 705401618 | Gasket |
| 30v | 705401769 | Shim |
| 30w | 705401770 | Shim |
| 30x | 250200014 | Flat Washer M10 |
| 30y | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
| 40e | 705401349 | Circlip Joint |
| 45 | 705403307 | LH Knuckle This part replaces 705401290. |
| 46 | 705403308 | RH Knuckle This part replaces 705401291. |
| 60 | 293350150 | Ball Bearing This part replaces 293350040. |
| 70 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 80 | 293370019 | Circlip |
| 100 | 230602546 | Hex. Flange Screw M10 X 125 |
| 110 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 115 | 207685544 | Hex. Flange Screw M8 X 55 |
| 120 | 233281414 | Hex. Flange Elastic Nut M8 |
| 130 | 705501900 | Wheel Hub |
| 150 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 160 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 165 | 293000110 | Valve Cap |
| 170 | 250400071 | Cotter Pin |
| 210c | 705400193 | Rim Valve With Cap This part replaces 705401007. |
| 240 | 250200102 | Flat Washer M12 |
| 250 | 250001042 | Hex Flange Screw M12 X 20 This part replaces 250000540. |
| 310 | 250200014 | Flat Washer M10 |
| 320 | 250001046 | Hex Flange Screw M10 X 20 S.Grip This part replaces 250000847. |
| 350 | 219704410 | Polyurethane Hose 10000Mm Long |
