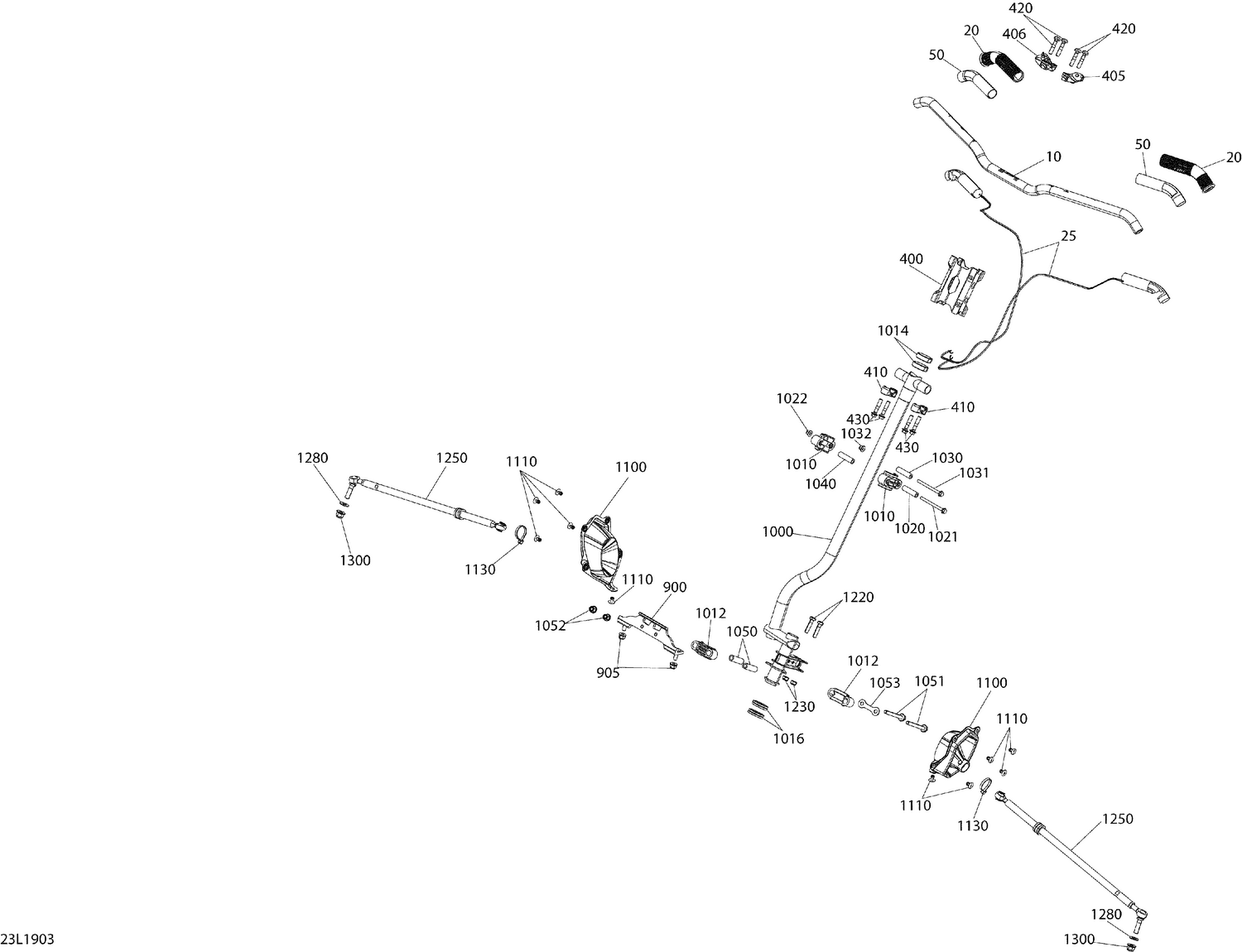

07- Steering
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 506153006 | Handle Bar |
| 20 | 506153011 | Black, Grip Lynx |
| 25 | 506152856 | Heated Film |
| 50 | 506153176 | Isolant This part replaces 506152548. |
| 400 | 860201718 | Riser This part replaces 506152981. |
| 405 | 506152894 | Steering Support |
| 410 | 506152894 | Steering Support |
| 420 | 250000904 | Button Head Torx Screw M8 X 38 |
| 430 | 250000852 | Hexagonal Flange Screw M8 X 1.25 x 60 |
| 900 | 506152787 | Support Plate |
| 905 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1000 | 506153022 | Main Tube |
| 1012 | 506153048 | Lower Half Housing |
| 1016 | 506152518 | Lower Vibration Ring |
| 1020 | 506152297 | Housing Bushing |
| 1021 | 207667554 | Screw Hex Flange M6 X 75 |
| 1022 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1030 | 506152297 | Housing Bushing |
| 1031 | 207667554 | Screw Hex Flange M6 X 75 |
| 1032 | 233261416 | Elastic Flanged Nut M6 X 1.0 |
| 1040 | 506152297 | Housing Bushing |
| 1050 | 506152937 | Housing Bushing |
| 1051 | 207687044 | Hex. Flange Screw M8 X 70 |
| 1052 | 233281416 | Hex. Elastic Flanged Nut M8 |
| 1053 | 506152938 | Stopper Plate |
| 1100 | 506153294 | Cap This part replaces 506153109. |
| 1110 | 293150008 | Pop Rivet 3/16" |
| 1130 | 414115200 | Tie-Rap 180 mm |
| 1220 | 207083544 | Hex. Screw M8 X 35 |
| 1230 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1250 | 506153056 | Rod Ass'y |
| 1280 | 506152582 | Washer |
