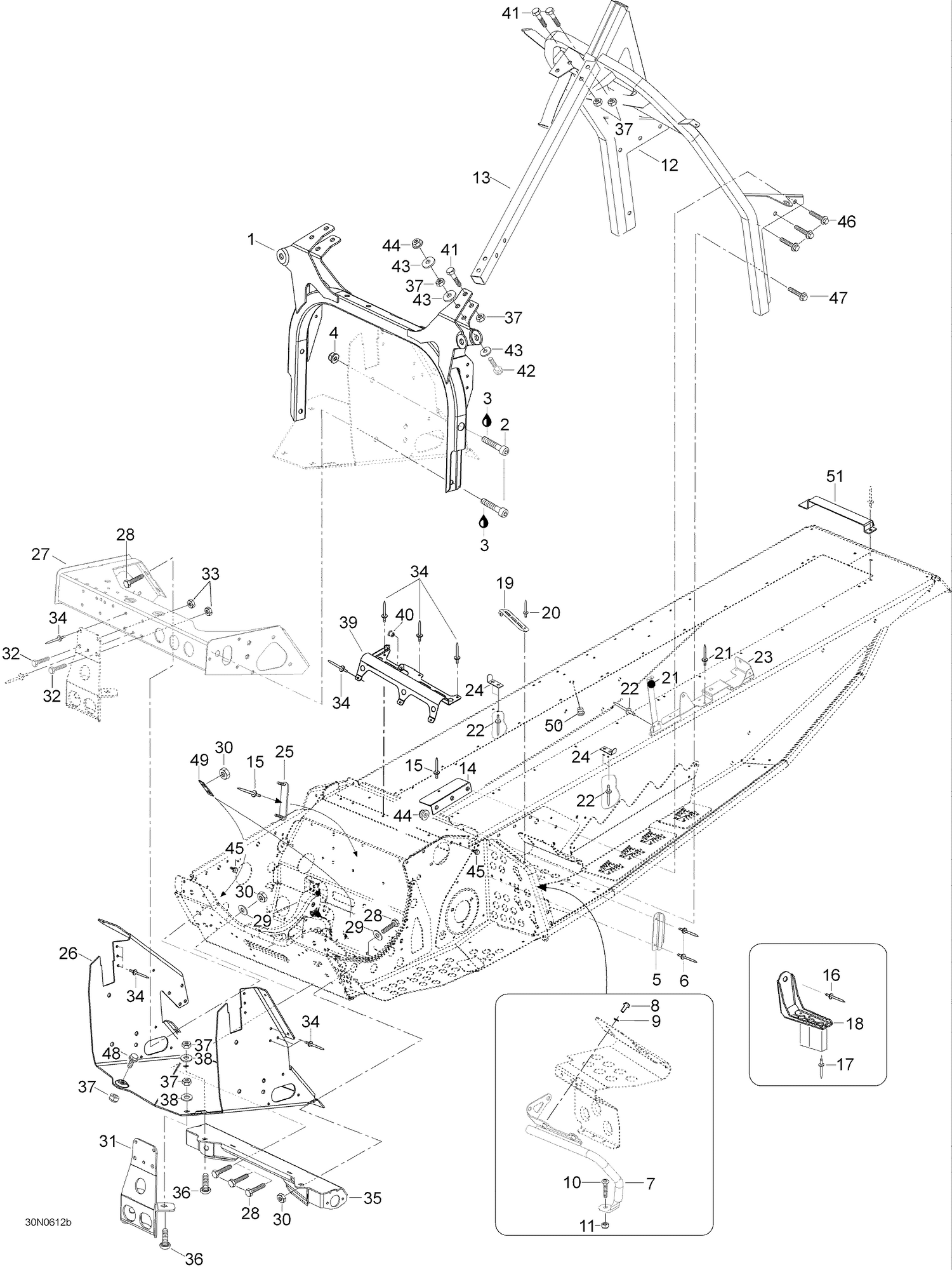

| Ref | Part Number | Description |
|---|
| 1 |
605253709 |
Support |
| 2 |
40810 |
Socket head screw M8 x 20 |
| 3 |
293800060 |
Liima Loctite 243 50ml |
| 4 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 5 |
518317504 |
CABLE PROTECTOR - Call your local BRP dealership |
| 6 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 7 |
605351594 |
L.H. Toe hold support |
| 7 |
605351595 |
R.H. Toe hold support |
| 8 |
40381 |
Socket head screw M6 x 20 |
| 9 |
20117 |
Washer |
| 10 |
40399 |
Socket head screw M8 x 16 |
| 11 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 12 |
605250887 |
Handle support |
| 13 |
605353547 |
Side bar |
| 14 |
605454115 |
Plate |
| 15 |
36108 |
Rivet |
| 16 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 17 |
605636005 |
Rivet |
| 18 |
605353938 |
L.H. Side bracket |
| 18 |
605353939 |
R.H. Side bracket |
| 19 |
518322726 |
GUARD BELT BRACKET, BLACK - Call your local BRP dealership |
| 20 |
36083 |
Rivet |
| 21 |
605352379 |
R.H. Steel strip |
| 21 |
605352380 |
L.H. Steel strip |
| 22 |
36083 |
Rivet |
| 23 |
605351792 |
R.H. seat bracket |
| 23 |
605351793 |
L.H. seat bracket |
| 24 |
605452615 |
Bracket, seat |
| 25 |
605451470 |
Bracket, fuel pump |
| 26 |
605253545 |
Front cross member |
| 27 |
605353548 |
Front support |
| 28 |
40037 |
Screw M8 x 25 |
| 29 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 30 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 31 |
605253612 |
Support plate |
| 32 |
40030 |
Screw M6 x 20 |
| 33 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 34 |
36108 |
Rivet |
| 35 |
605253670 |
Subframe |
| 36 |
40058 |
Locking screw M8 x 20 |
| 37 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 38 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 39 |
518323532 |
INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership |
| 40 |
36086 |
Rivet nut M6 |
| 41 |
207084544 |
Hex. Screw M8 X 45 This part replaces 40008. |
| 42 |
40011 |
Hex screw M8 x 60 DIN931(1=10pcs)e - Call your local BRP dealership |
| 43 |
234082410 |
Flat Washer 8 mm This part replaces 20010. |
| 44 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 45 |
40327 |
Screw M6 x 12 |
| 46 |
605640007 |
Screw M8 x 20 |
| 47 |
40336 |
HEX. SCREW M8 X 20 - Call your local BRP dealership |
| 48 |
40386 |
Screw M8 x 30 |
| 49 |
605452373 |
Washer |
| 50 |
518321954 |
Plug |
