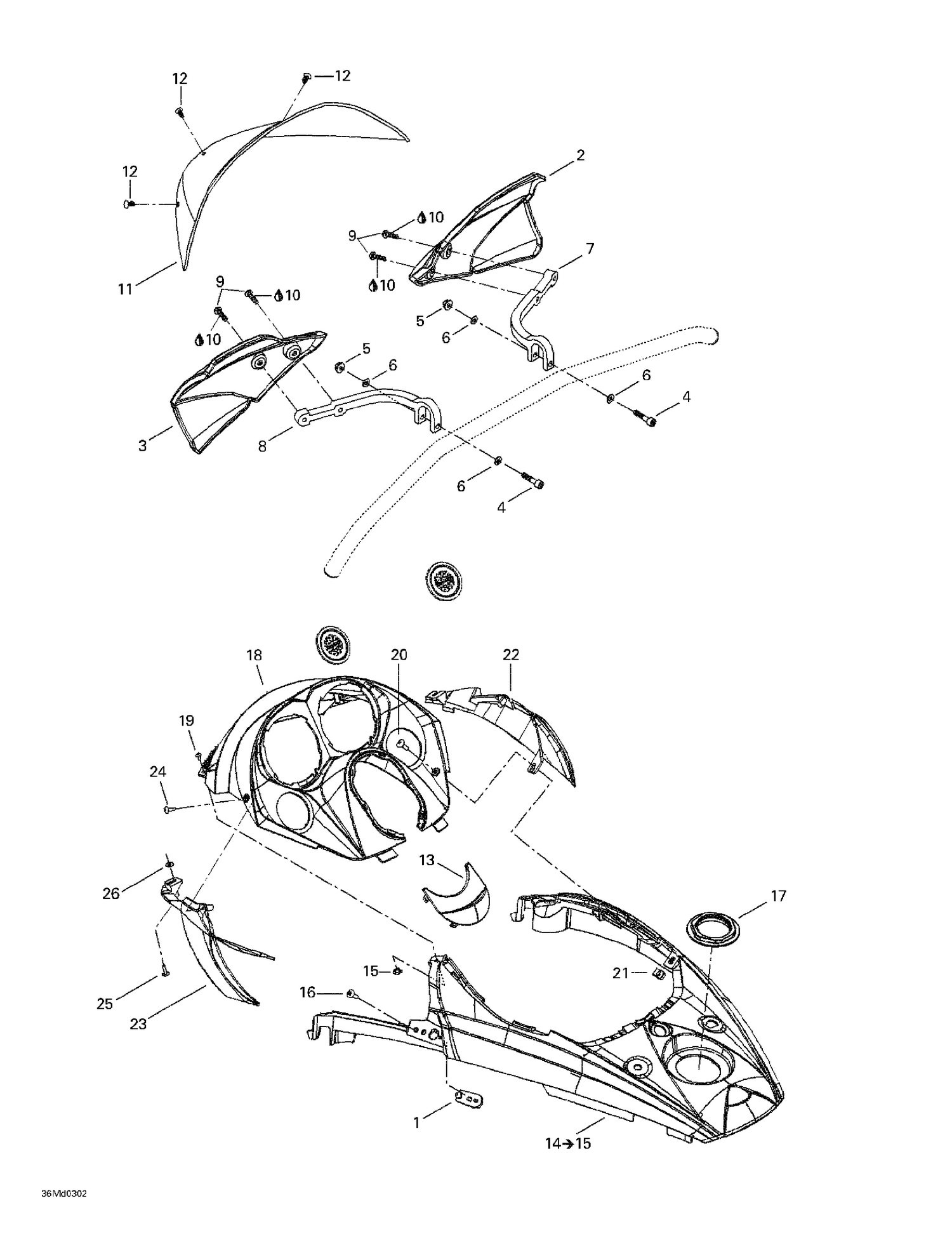

| Ref | Part Number | Description |
|---|
| 1 |
517302616 |
HOOD LATCH - Call your local BRP dealership |
| 2 |
517302677 |
RH air deflector |
| 3 |
517302678 |
LH air deflector |
| 4 |
205065060 |
SOCKET HEAD SCREW M6 X 50 - Call your local BRP dealership |
| 5 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 6 |
234061600 |
Stainless Flat Washer M6 |
| 7 |
517302929 |
RH deflector support |
| 8 |
517302931 |
LH deflector support |
| 9 |
211000121 |
TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership |
| 10 |
293800060 |
Loctite 243, 10 ml |
| 11 |
517302617 |
LOW WINDSHIELD - Call your local BRP dealership |
| 12 |
414644300 |
Black, Dart |
| 13 |
517302592 |
CONSOLE CAP - Call your local BRP dealership |
| 15 |
250100030 |
T-NUT, M4 - Call your local BRP dealership |
| 16 |
250000122 |
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership |
| 17 |
517302575 |
CONSOLE NUT - Call your local BRP dealership |
| 18 |
517302935 |
Indicator support |
| 19 |
250000121 |
Phillips Screw M4 X 8 |
| 20 |
250000124 |
PHILLIPS SCREW M5 X 20 - Call your local BRP dealership |
| 21 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 22 |
517302546 |
RH AIR DEFLECTOR - Call your local BRP dealership |
| 23 |
517302547 |
LH AIR DEFLECTOR - Call your local BRP dealership |
| 24 |
250000723 |
Phillips Screw K40 X 16 This part replaces 250000084. |
| 25 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
