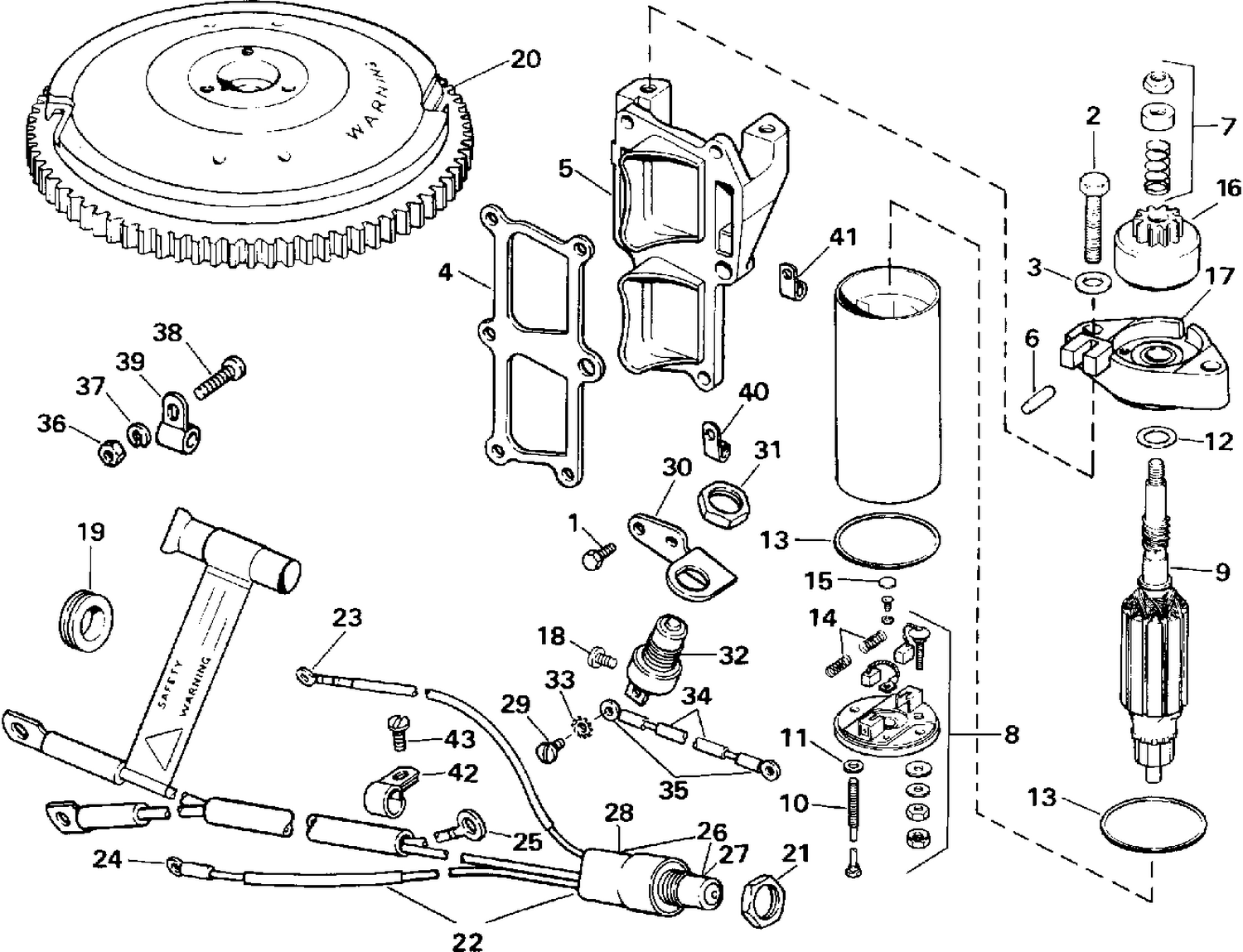

ELECTRIC STARTING KIT 9.9, 15
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 0306501 | BOLT, Water pump |
| 3 | 0308419 | WASHER |
| 4 | 0319332 | GASKET, By-pass cover |
| 5 | 0319350 | BY-PASS COVER |
| 20 | 0583915 | FLYWHEEL & RING GEAR ASSY. |
| 22 | 0582961 | CABLE & STARER SWITCH ASSY. |
| 23 | 0337029 | TERMINAL, Ring |
| 26 | 0395699 | STARTER SWITCH |
| 27 | 0334951 | BOOT, Switch |
| 28 | 0511532 | TUBING, Starter switch |
| 32 | 0395699 | STARTER SWITCH |
| 35 | 0337029 | TERMINAL, Ring |
| 38 | 0319125 | SCREW |
| 39 | 0317000 | COLLIER, câble This part replaces 0320687. |
| 41 | 0314254 | CLAMP |
| 42 | 0333440 | CLAMP, Battery cable |
| 0173344 | 0173344 | ELECTRIC STARTING KIT |
| 0581293 | 0581293 | BRACKET & SWITCH, Netural start |
