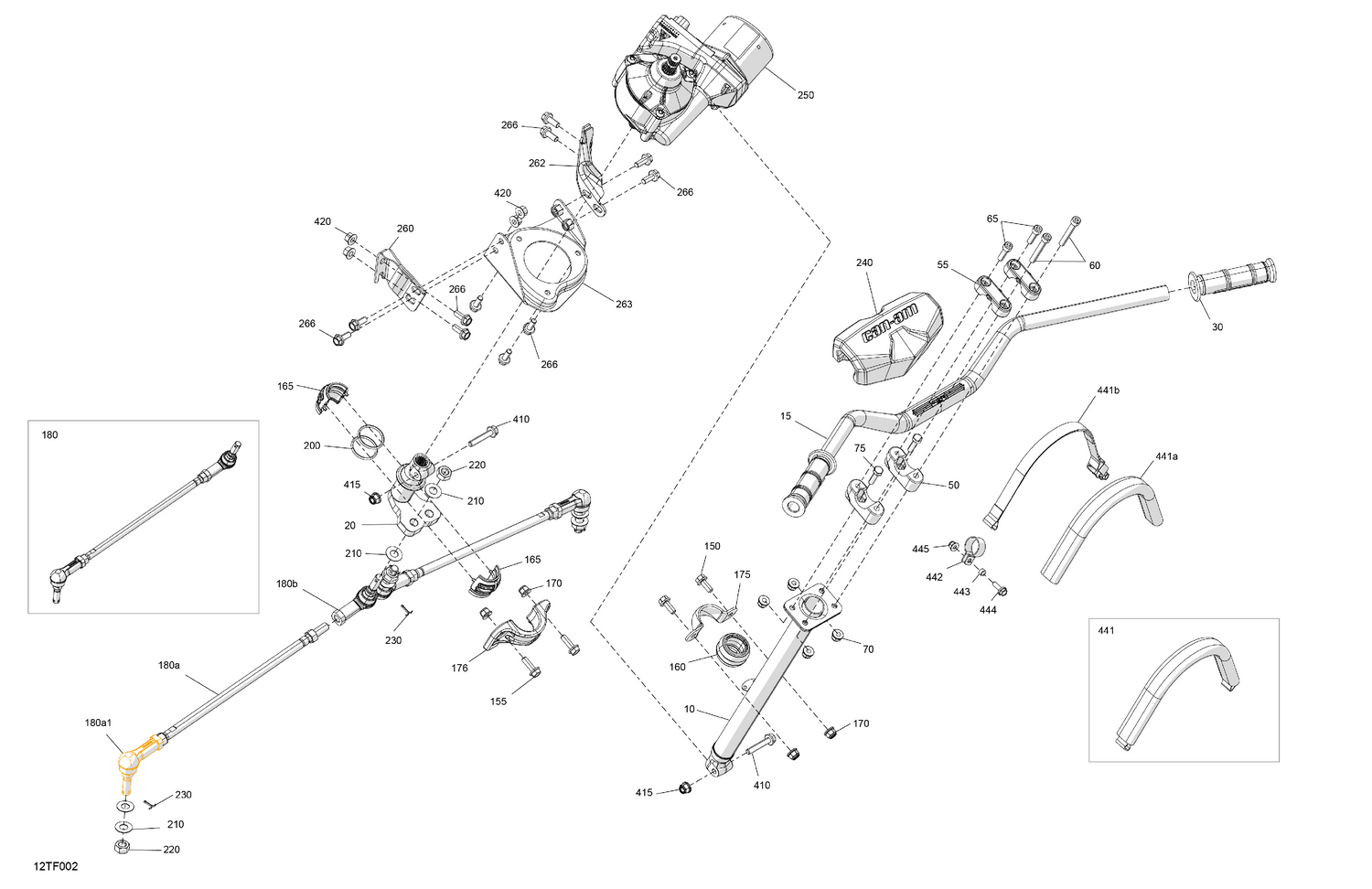

03- Mechanic - Steering
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709402798 | Upper Steering Axle |
| 15 | 709402292 | Anodized Handlebar |
| 20 | 703501161 | Pitman Arm |
| 30 | 709400493 | Handle Grip |
| 50 | 709402750 | Lower Mounting Clamp |
| 55 | 709402749 | Upper Mounting Clamp |
| 60 | 205086060 | Socket Head Screw M8 X 60 |
| 65 | 205083060 | Socket Screw M8 X 30 |
| 70 | 233281416 | Hex. Elastic Flange Nut M8 |
| 75 | 207183060 | Hex. Screw M8 X 30 |
| 150 | 207682044 | Hex. Flange Screw M8 X 20 |
| 155 | 207682544 | Hex. Flange Screw M8 X 25 |
| 160 | 709402169 | Spherical Bushing |
| 165 | 709400783 | Spherical Half Bushing |
| 170 | 233281416 | Hex. Elastic Flange Nut M8 |
| 175 | 709400827 | Upper Column Attachment |
| 176 | 709401428 | Column Attachment |
| 180a1 | 709402303 | LH Ball Joint |
| 180b | 709402302 | RH Ball Joint |
| 200 | 293300068 | O-Ring |
| 210 | 706200281 | Hardened Washer |
| 220 | 250100239 | Hex Nut M12 |
| 230 | 211400013 | Cotter Pin |
| 240 | 709402328 | Steering Cover |
| 250 | 709403187 | Power Steering Ass'y |
| 260 | 709402184 | LH Power Steering Bracket |
| 262 | 709402978 | RH Power Steering Support |
| 263 | 709402969 | Power Steering Support |
| 266 | 207582044 | Hex. Flange Screw M8 X 20, Scotch Grip |
| 410 | 250001133 | Hex. Flange Screw M8 X 45 Scotch Grip |
| 415 | 233281416 | Hex. Elastic Flange Nut M8 |
| 420 | 233081416 | Hex. Flange Nut M8 |
| 441a | 506152115 | Strap Ass'y |
| 441b | 506152115 | Strap Ass'y |
| 442 | 709402998 | Deep Black, Crimp Clamp |
| 443 | 506152156 | Bushing |
| 444 | 207662054 | Hex. Flange Screw M6 X 20 |
