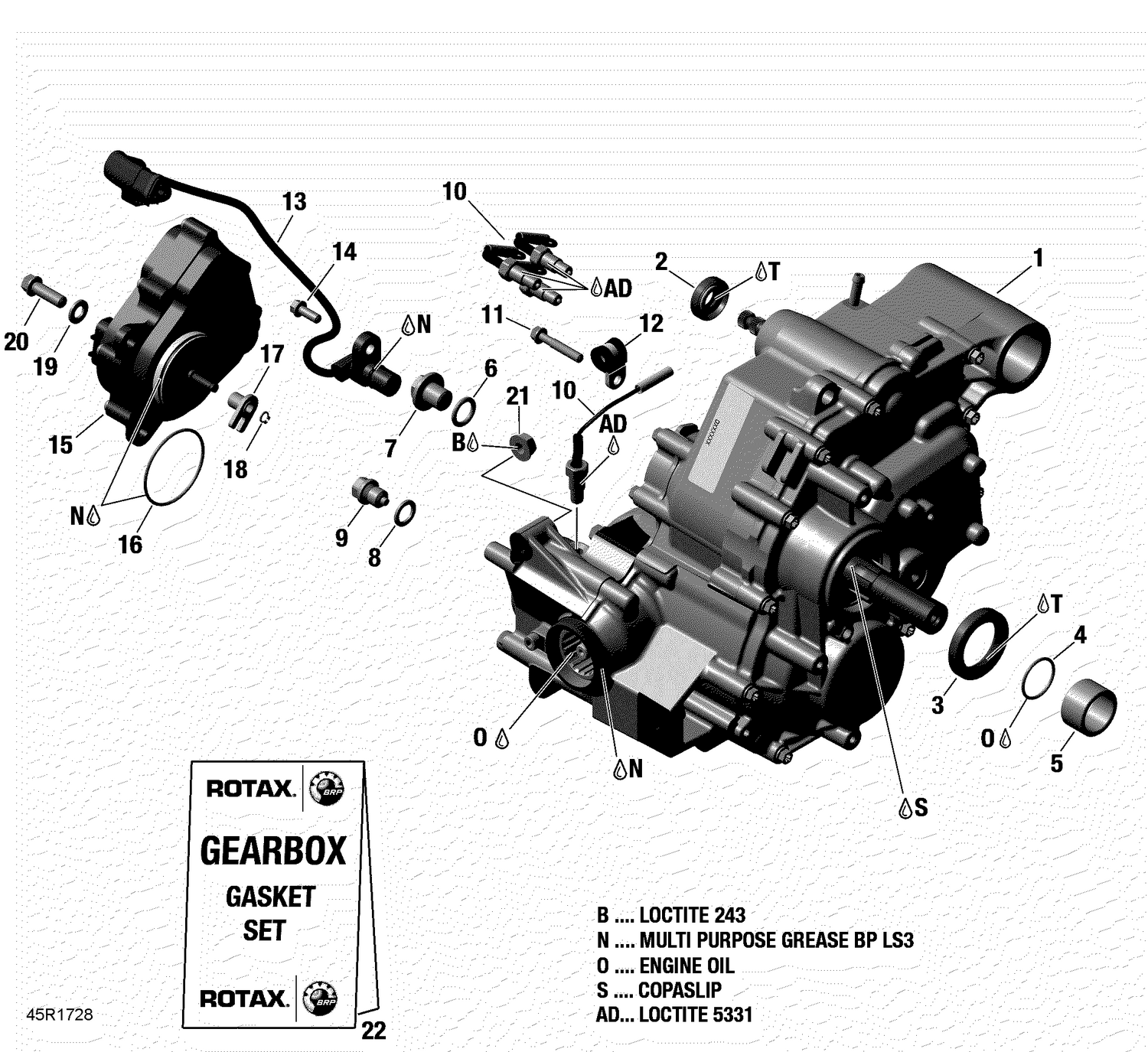

01- Gear Box Assy - 1000R EFI
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420250450 | Oil Seal |
| 3 | 420950089 | Oil Seal |
| 4 | 420631310 | O-Ring |
| 5 | 420647267 | Distance Ring This part replaces 420647253. |
| 6 | 420650350 | O-Ring |
| 7 | 420241662 | Plug Screw M14 X 1.5 This part replaces 420241660. |
| 8 | 420250640 | Copper Washer |
| 9 | 420241787 | Magnetic Drain Plug M12 This part replaces 420241786. |
| 10 | 420640192 | Contact Screw M10 Ass'y With Cable |
| 11 | 420440274 | Torx Flange Screw M6 X 35 |
| 12 | 420251692 | Cable Clamp This part replaces 420251691. |
| 13 | 420265727 | Camshft Position Sensor Ass'y This part replaces 420265621. |
| 14 | 420440162 | Torx Flange Screw M6 X 16 |
| 16 | 293300117 | O-Ring |
| 17 | 415129175 | Shifting Fork |
| 18 | 293370042 | Circlip |
| 19 | 420250315 | Flat Washer 8.4 mm This part replaces 420250311. |
| 20 | 420440372 | Torx Flange Screw M8 X 25 |
| 21 | 420842619 | Hex. Nut M8 |
