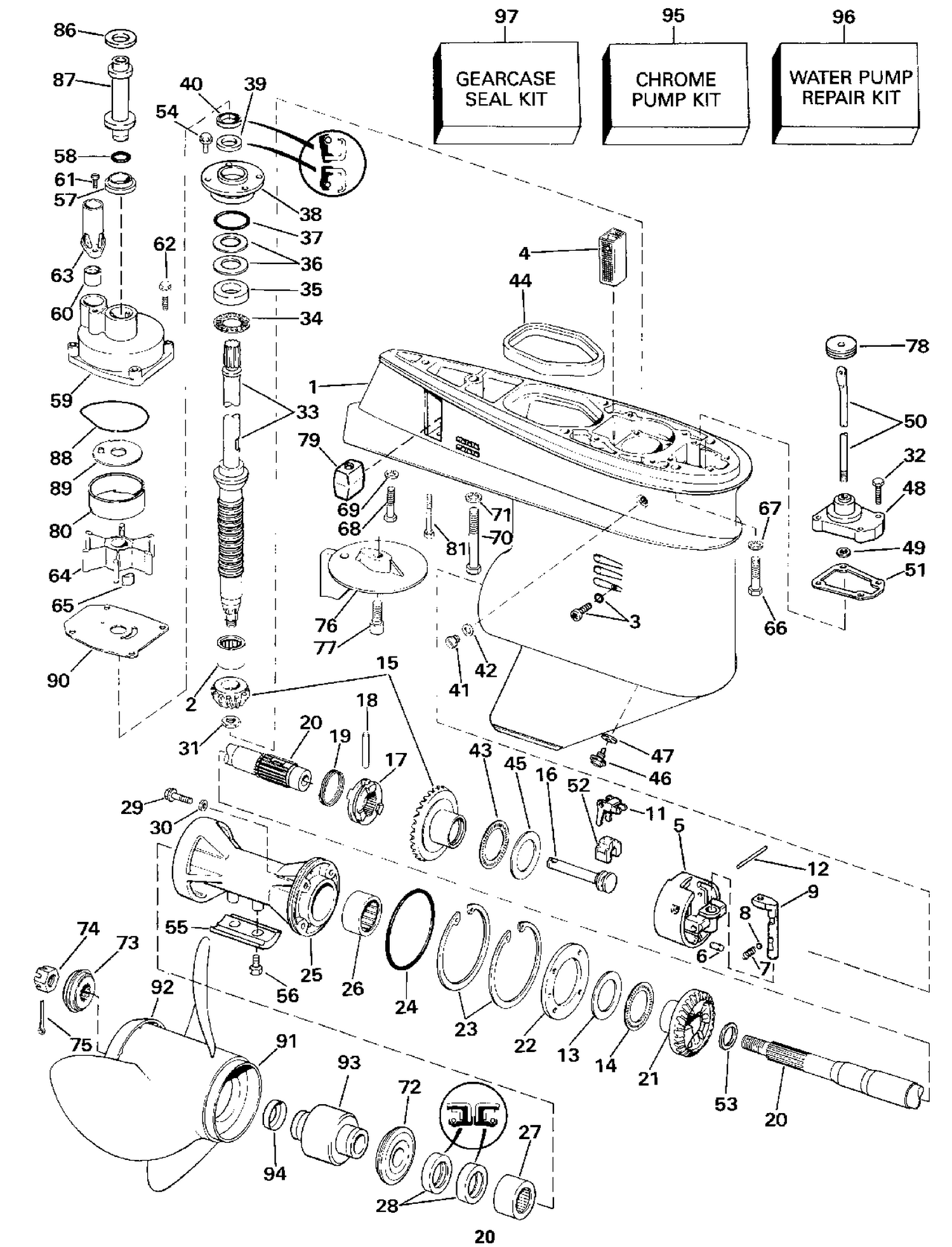

| Ref | Part Number | Description |
|---|
| 1 |
5009348 |
Grcse&Brg Prime This part replaces 0392478. |
| 37 |
0313754 |
O RING |
| 56 |
0332320 |
SCREW, Anode |
| 59 |
0432955 |
WATER PUMP REPAIR KIT (includes impeller housing) This part replaces 0391049. |
| 66 |
0308843 |
SCREW, Gearcase to housing |
| 67 |
0307708 |
RONDELLE GROWER |
| 68 |
0306503 |
SCREW, Short |
| 68 |
0328561 |
SCREW, Gearcase mounting |
| 70 |
0313697 |
SCR,Grc to hsg.long |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0338742 |
COMPENSATEUR DE DÉRIVE This part replaces 0327640. |
| 77 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0321452 |
GROMMET |
| 80 |
0319587 |
CUP,IMPELLER HSG |
| 80 |
0324980 |
LINDER, Impeller housing |
| 89 |
0315145 |
PLATE, Chrome |
| 89 |
0321940 |
PLATE |
| 91 |
0382761 |
PROPELLER ,14 x 11 |
| 91 |
0383160 |
PROPELLER 14 X 19 |
| 91 |
0389510 |
PROPELLER, 13 * 19 SST |
| 91 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 91 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 91 |
0389792 |
PROPELLER 14 x 11 -SST |
| 91 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 91 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 91 |
0390896 |
PROPELLER, 13 * 19 AL. |
| 91 |
0392261 |
PROPELLER 13 3/4 X 13 - SST |
| 91 |
0765181 |
PROPELLER This part replaces 0391668. |
| 91 |
0765182 |
PROPELLER - W Models This part replaces 0391198. |
| 91 |
0765183 |
PROPELLER, WDEL Models This part replaces 0391199. |
| 95 |
0389145 |
CHROME CUP & PLATE KIT |
| 96 |
0432656 |
WATER PUMP REPAIR KIT |
| 96 |
0432955 |
WATER PUMP REPAIR KIT (includes impeller housing) |
| 0432624 |
0432624 |
GEARCASE ASSY. |
