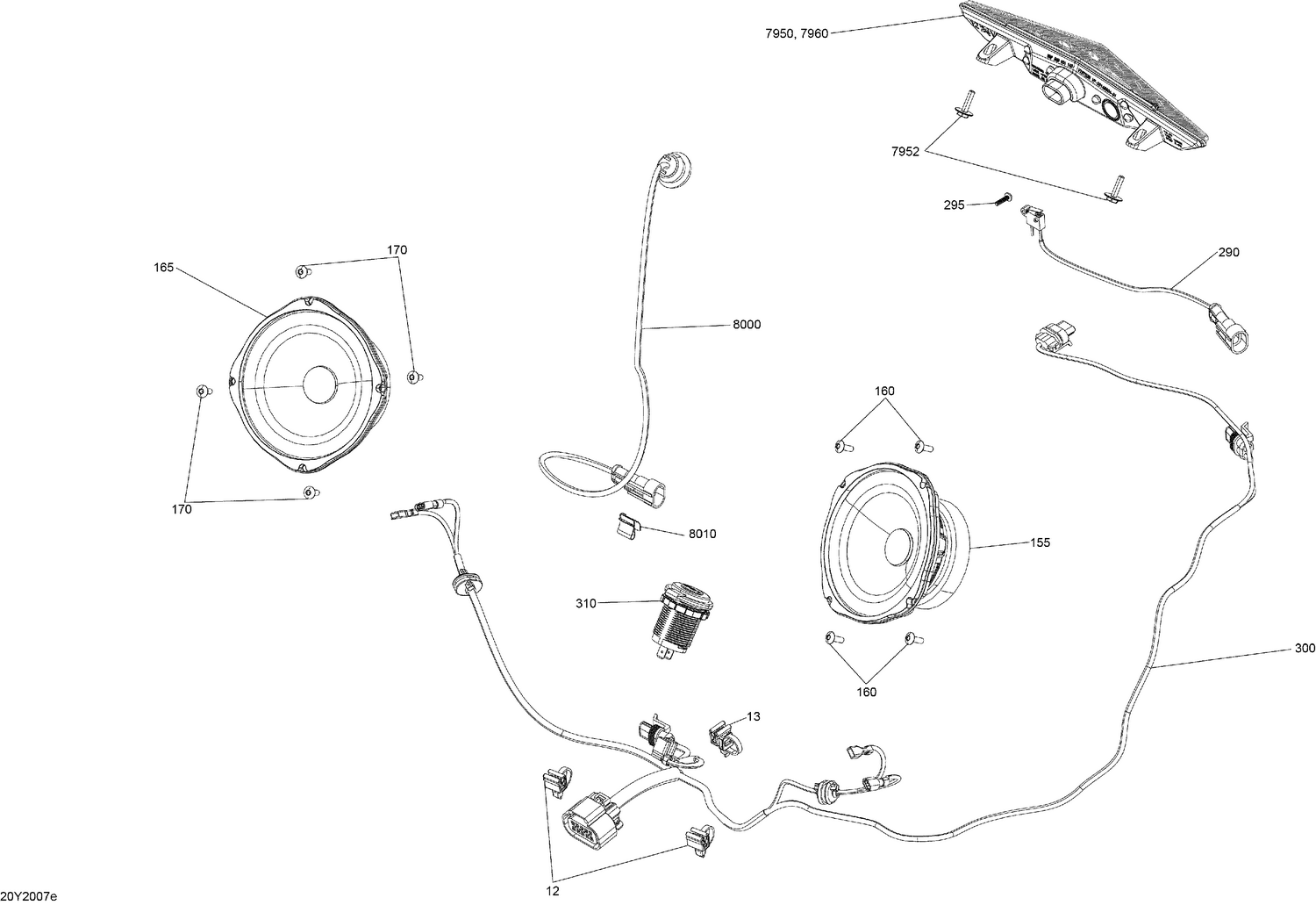

10- Electrical System Rear Upper Storage Box
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 13 | 293750058 | Tie Rap 2 Pièces pour Bordure |
| 155 | 710005433 | Haut-Parleur 4.5" |
| 160 | 250000577 | Torx Truss Screw K40 X 12 |
| 165 | 710005433 | Haut-Parleur 4.5" |
| 170 | 250000577 | Torx Truss Screw K40 X 12 |
| 290 | 710005315 | Open Detection |
| 295 | 250000614 | Screw-pt.flange Oval Hd.k30 X 12 |
| 310 | 219400510 | USB Outlet |
| 7952 | 250000725 | Screw M4 X 16 |
| 8000 | 710001533 | Trunk Light |
