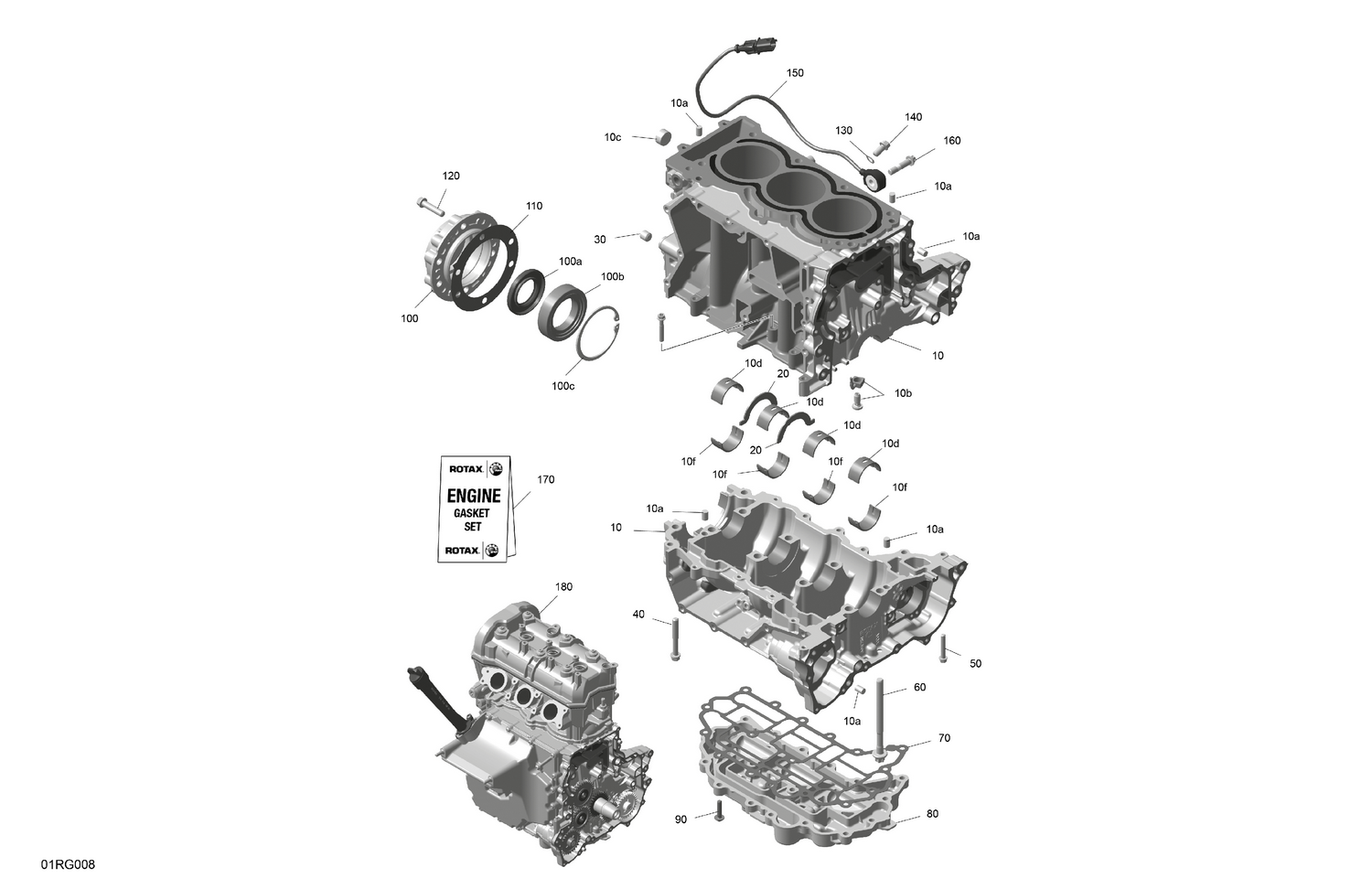

01- ROTAX - Crankcase
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 420632014 | Center Pin 8 x 12 |
| 10b | 420656731 | Oil Spray Nozzle |
| 10c | 420641317 | Plug Screw M20 x 1.5 |
| 10d | 420933180 | Plain Bearing Half 36X40X19 |
| 10f | 420933185 | Plain Bearing Half 36X40X19 |
| 20 | 420933140 | Ring Half 40,5X60X1,95 |
| 30 | 420840500 | Threaded Pin M12X1,5 - MK |
| 40 | 420641213 | Flanged Torx Screw M8 X 55 |
| 50 | 420440274 | Flanged Torx Screw M6 X 35 |
| 60 | 420940945 | Flanged Torx Screw M9 X 113 |
| 70 | 420431822 | Gasket |
| 80 | 420911509 | Oil Sump |
| 90 | 420841549 | Flanged Torx Screw M6 X 25 |
| 100a | 420630153 | Oil Seal |
| 100b | 420232497 | Roller Bearing |
| 100c | 420845790 | Retaining Ring 72x2,5 DIN 472 |
| 110 | 420450080 | Gasket |
| 120 | 420440861 | Flanged Torx Screw M8 X 35 |
| 130 | 420950141 | Sealing Ring A 8X13 DIN 7603 |
| 140 | 420440852 | Flanged Torx Screw M8 X 16 |
| 150 | 420664033 | Knock Sensor |
| 160 | 420641188 | Flanged Torx Screw M8 X 35 |
| 170 | 420686243 | Gasket Kit 903 Ski NA |
