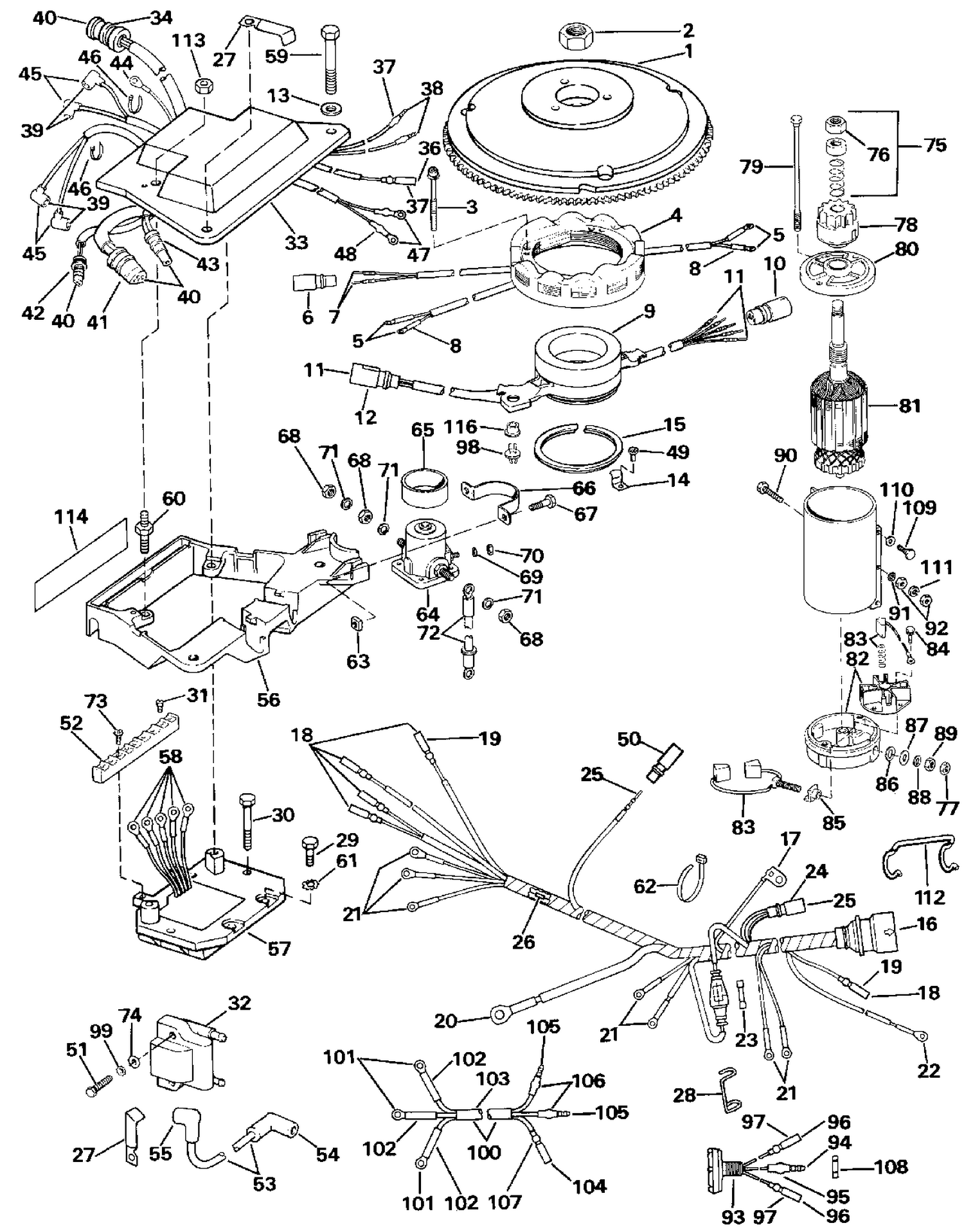

| Ref | Part Number | Description |
|---|
| 1 |
0583428 |
FLYWHEEL ASSY. |
| 2 |
0333263 |
NUT, Flywheel |
| 3 |
0325042 |
SCREW, Starter mounting |
| 4 |
0583410 |
STATOR ASSY., 3/9 amp |
| 9 |
0583508 |
TIMER BASE & SENSOR ASSY. |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0583284 |
ENGINE CABLE ASSY. |
| 29 |
0304027 |
VIS, arbre de commande de sens de marche |
| 32 |
0582508 |
COIL ASSY |
| 33 |
0584041 |
POWER PACK |
| 52 |
0512656 |
TERMINAL BLOCK |
| 53 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 56 |
0583997 |
ELECTRICAL BRACKET ASSY. |
| 57 |
0584205 |
RECTIFIER & REGULATOR ASSY. |
| 59 |
0331980 |
SCREW, Bracket, port |
| 60 |
0334109 |
BOLT, Double end |
| 62 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 65 |
0311217 |
MANCHON, solénoïde |
| 66 |
0330112 |
BRIDE, solénoïde vers démarreur |
| 73 |
0306644 |
VIS, capteur de papillon |
| 75 |
0393354 |
NUT SPRING & SPACER KIT |
| 76 |
0393354 |
NUT SPRING & SPACER KIT This part replaces 0316740. |
| 78 |
0385949 |
DRIVE ASSY |
| 81 |
0318584 |
AMRMATURE |
| 82 |
0385844 |
CAP ASSY COMMUTATOR This part replaces 0328381. |
| 90 |
0329240 |
SCREW |
| 93 |
0585146 |
INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE This part replaces 0583803. |
| 98 |
0330368 |
BUSHING, Timber base |
| 100 |
0583909 |
CABLE, Junction box switch |
| 114 |
0333845 |
DECAL, Terminal block wiring |
| 0393570 |
0393570 |
STARTER MOTOR ASSY. |
