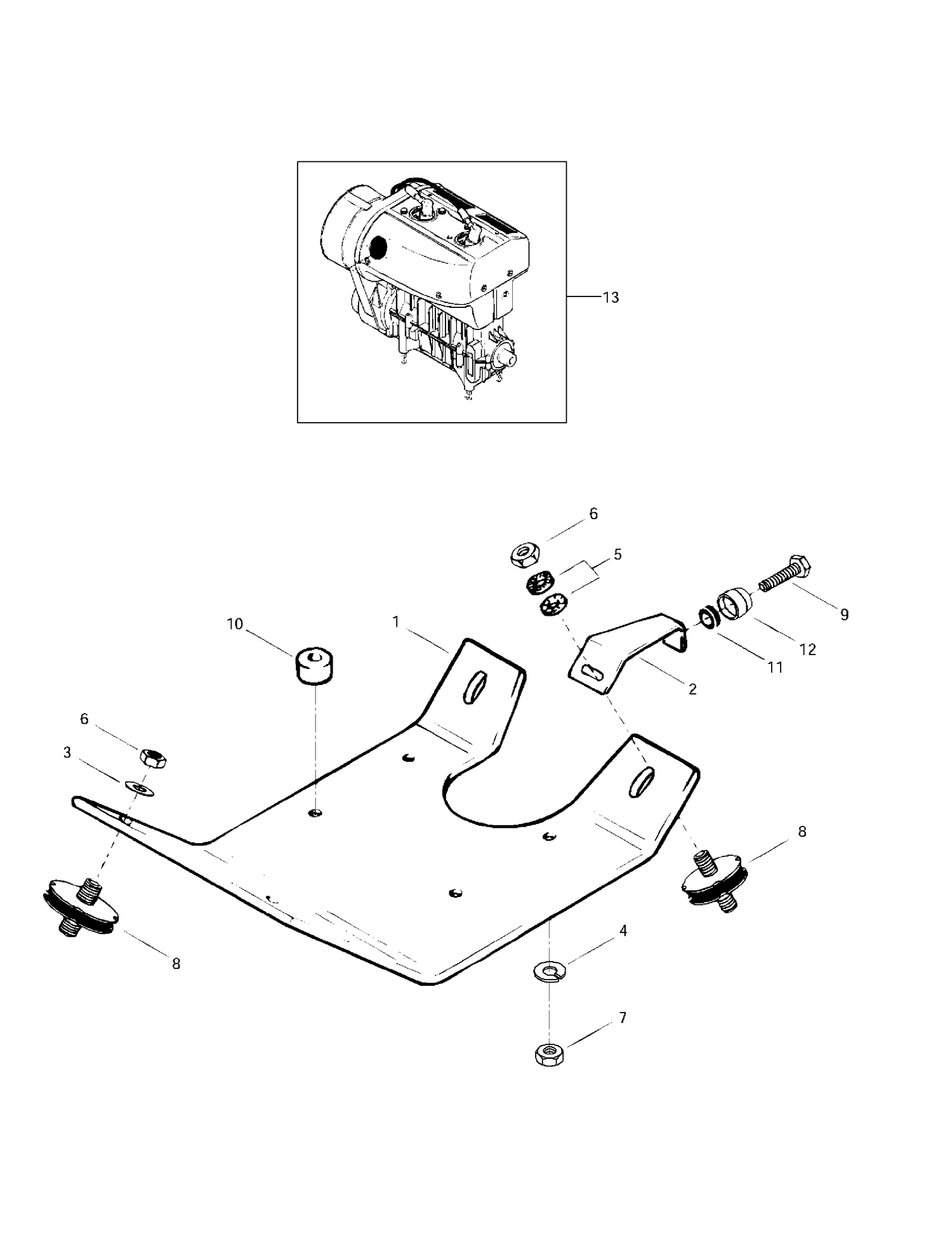

| Ref | Part Number | Description |
|---|
| 1 |
M539593 |
Engine Support |
| 2 |
M539902 |
Support |
| 3 |
512056700 |
Lock Washer |
| 4 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 5 |
M20015 |
Lock Washer |
| 6 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 7 |
M33001 |
Nut |
| 8 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 9 |
207183044 |
Hex. Screw M8 X 30 This part replaces 222083065. |
| 10 |
M5440678 |
Sleeve - Call Your Local BRP Dealership |
| 11 |
M2846014 |
Rubber Washer |
| 12 |
605449240 |
SLEEVE - Call your local BRP dealership This part replaces M5440091. |
