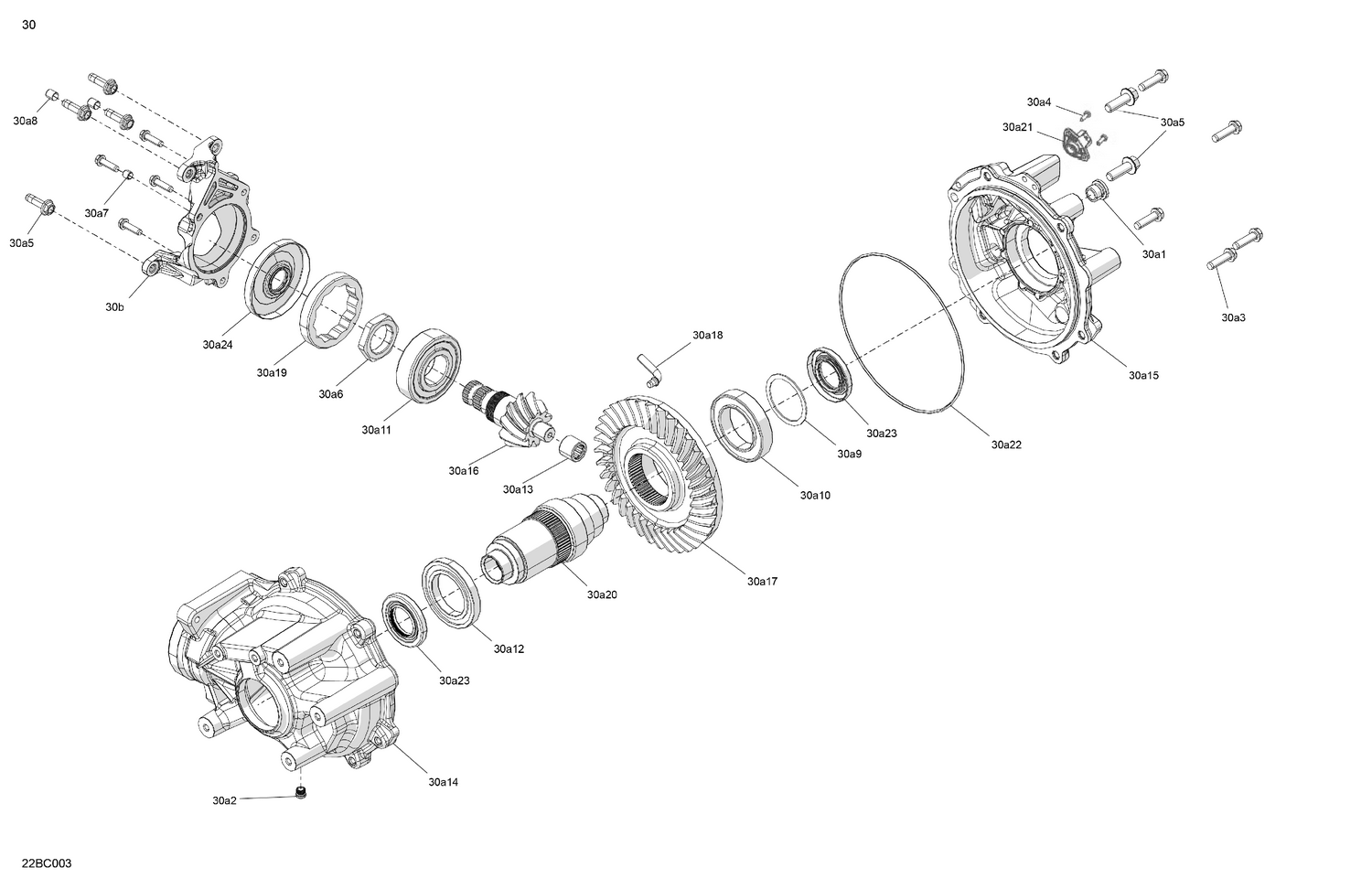

04- Drive - Final Drive Unit
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 30a1 | 705501889 | Fill Level Plug |
| 30a10 | 715900741 | Ball Bearing |
| 30a11 | 715900782 | Ball Bearing |
| 30a12 | 715900742 | Ball Bearing |
| 30a13 | 705501874 | Needle Bearing |
| 30a14 | 715900816 | Case |
| 30a15 | 715900840 | Cover |
| 30a16 | 715900746 | Pinion, 10T Spiral |
| 30a17 | 715900747 | Ring Gear 36T Spiral |
| 30a18 | 705401935 | Vent Valve |
| 30a19 | 705501882 | Nut |
| 30a2 | 715900563 | Fill Level Plug M10 |
| 30a20 | 715900748 | Hub |
| 30a21 | 420427563 | Cover |
| 30a22 | 715900749 | O-Ring |
| 30a23 | 715900531 | Oil Seal |
| 30a24 | 715900751 | Seal |
| 30a3 | 705501886 | Bolt |
| 30a4 | 715900736 | Screw |
| 30a5 | 715900799 | Custom Hex Screw Flange Head M10 x 30 |
| 30a6 | 715900737 | Nut |
| 30a7 | 715900738 | Dowel Pin |
| 30a8 | 715900739 | Dowel Pin |
| 30a9 | 715900740 | Shim |
