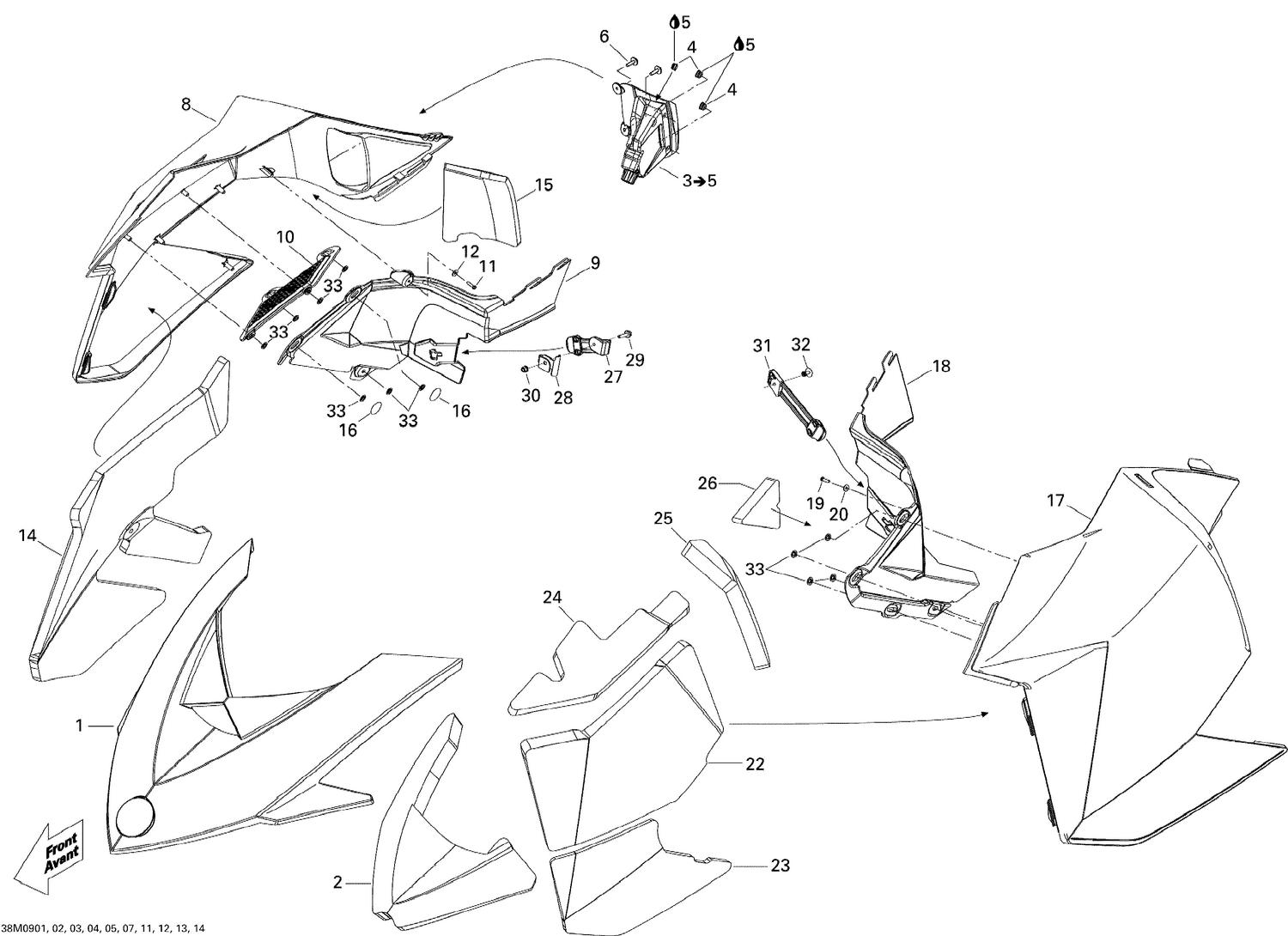

| Ref | Part Number | Description |
|---|
| 2 |
517304913 |
Hood Foam This part replaces 517303990. |
| 9 |
517303671 |
Deep Black RH Moulding Panel |
| 10 |
517303622 |
Grille |
| 11 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 12 |
234042600 |
Flat Washer 4 mm, Stainless |
| 14 |
517304883 |
RH Center Foam This part replaces 517304149. |
| 15 |
517304884 |
RH Panel Rear Foam This part replaces 517303982. |
| 16 |
518325560 |
Adhesive Patch |
| 17 |
517304030 |
Deep Black, LH Panel |
| 18 |
517303673 |
Deep Black, LH Moulding Panel |
| 19 |
241141660 |
Hex. Flange Screw K40 X 16 |
| 20 |
234042600 |
Flat Washer 4 mm, Stainless |
| 22 |
517304887 |
LH Panel Center Foam This part replaces 517303983. |
| 23 |
517304888 |
LH Panel Lower Foam This part replaces 517303984. |
| 24 |
517304889 |
LH Panel Upper Foam This part replaces 517303985. |
| 25 |
517304890 |
LH Panel Rear Foam This part replaces 517303986. |
| 26 |
517304891 |
Foam This part replaces 517303987. |
| 27 |
517303612 |
RH Panel Latch |
| 28 |
517304221 |
Latch Support |
| 29 |
207652044 |
Hex.Flange Screw M5 X 20 |
| 30 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 31 |
517303808 |
LH Panel Latch |
| 32 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
