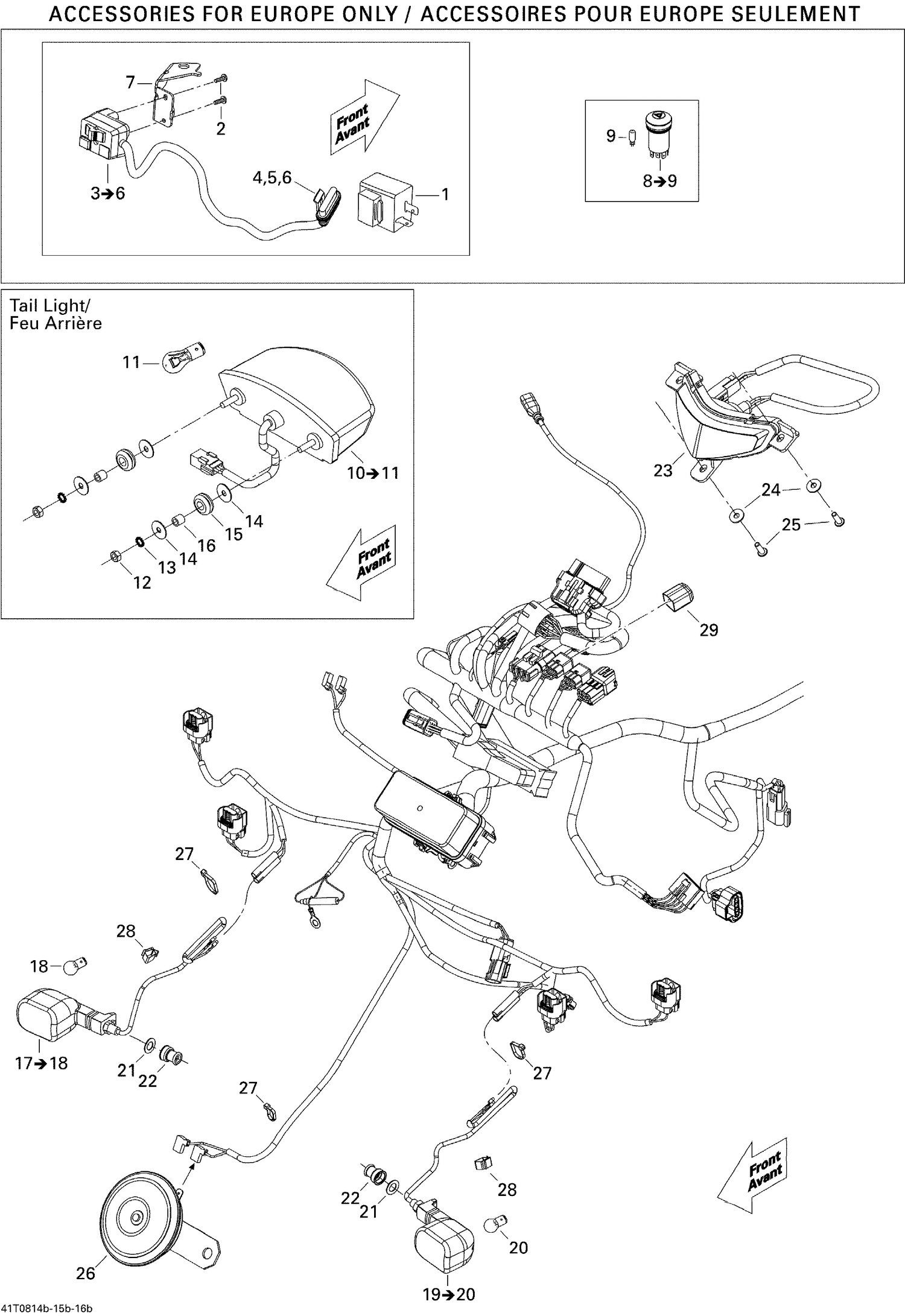

| Ref | Part Number | Description |
|---|
| 1 |
710000581 |
FLASHER UNIT - Call your local BRP dealership |
| 2 |
207141260 |
Screw Hex. M4 X 12 |
| 4 |
710000780 |
Connector |
| 5 |
278001014 |
Female Terminal |
| 6 |
278001013 |
Wire Seal |
| 7 |
710000905 |
Switch Support |
| 9 |
710000661 |
EMERGENCY SWITCH LIGHT BULB - Call your local BRP dealership |
| 11 |
520000758 |
Bulb This part replaces 410504100. |
| 12 |
232061600 |
Hex. Nut M6 |
| 13 |
234461608 |
External Serrated Lock Washer 6 mm |
| 14 |
224060201 |
Flat Washer |
| 15 |
709000582 |
Grommet This part replaces 293720053. |
| 16 |
293900105 |
Bushing This part replaces 293900045. |
| 18 |
Not |
Available As Spare Part - Flasher Bulb |
| 20 |
Not |
Available As Spare Part - Flasher Bulb |
| 21 |
503175800 |
Washer |
| 22 |
710001826 |
CAP GUARD - Call your local BRP dealership This part replaces 710000765. |
| 23 |
710001042 |
Day Light |
| 24 |
250200081 |
FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 25 |
241641040 |
PHILLIPS SCREW K40 X 10 - Call your local BRP dealership |
| 26 |
710004791 |
Horn This part replaces 710001281. |
| 27 |
414115200 |
Tie-Rap 180 mm |
| 28 |
414227300 |
Clip |
