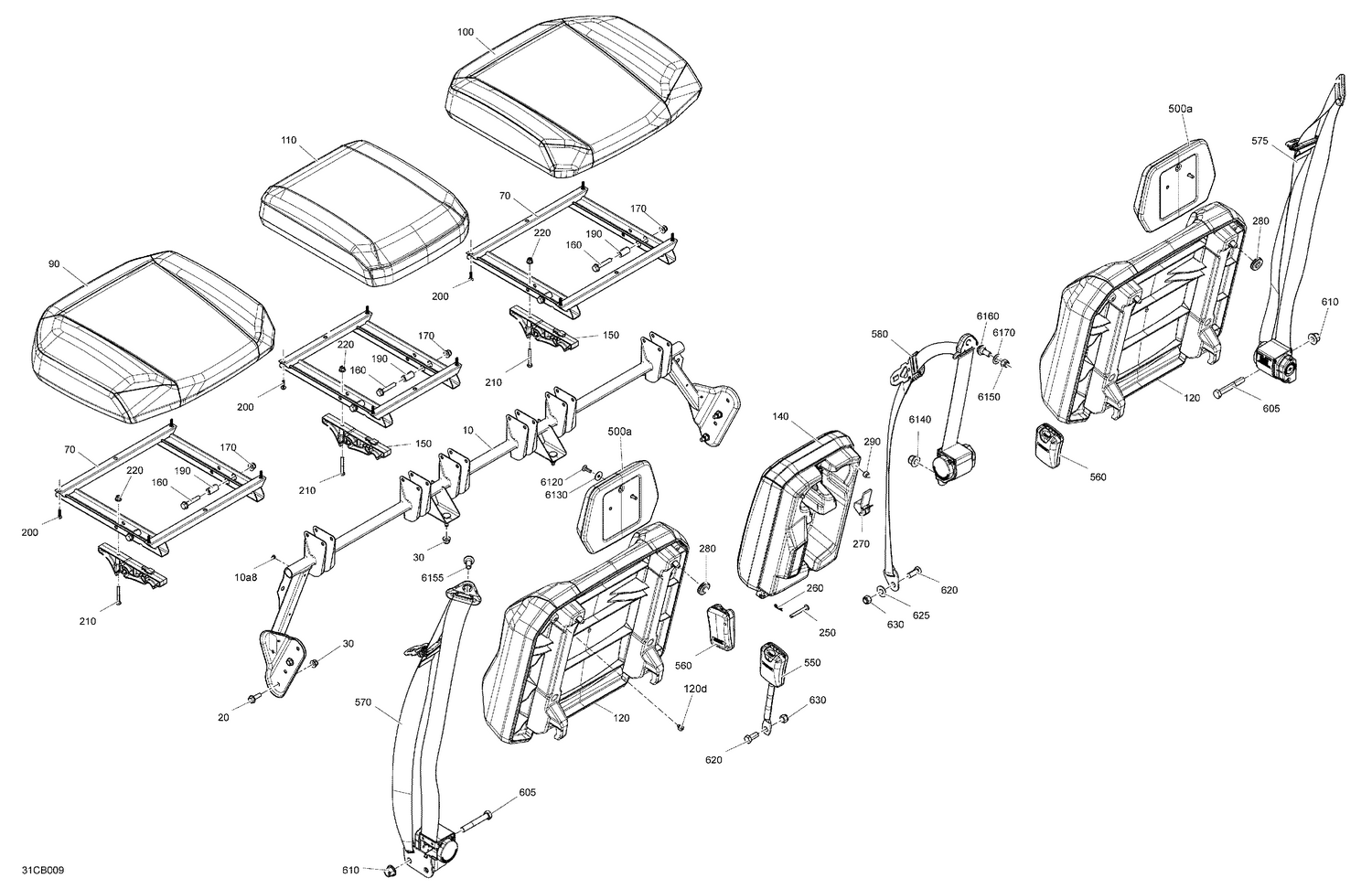

07- Body - Seat - Rear Section
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 10a8 | 390402200 | Pop Rivet 3/16" |
| 20 | 207682544 | Hex. Flange Screw M8 X 25 |
| 30 | 233281414 | Hex. Flange Elastic Nut M8 |
| 70 | 708002821 | Passenger Seat Member |
| 90 | 708002661 | LH Seat Base Ass'y |
| 100 | 708002663 | RH Seat Base Ass'y |
| 110 | 708002659 | Central Seat Base Ass'y |
| 120d | 293830005 | Rubber Bumper |
| 140 | 708003159 | Backrest Ass'y |
| 150 | 708002581 | Seat Base Pivot This part replaces 708003421. |
| 160 | 207684544 | Hex. Flange Screw M8 X 45 |
| 170 | 233281414 | Hex. Flange Elastic Nut M8 |
| 190 | 708001903 | Bushing |
| 200 | 250000760 | Torx Screw Truss Head K50X20 T20 |
| 210 | 207064544 | Hex. Screw M6 X 45 |
| 220 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 250 | 250400069 | Pin |
| 260 | 269800431 | Hairpin Cotter |
| 270 | 269501487 | Latch |
| 280 | 517303756 | Grommet |
| 290 | 293830005 | Rubber Bumper |
| 500a | 708002853 | Headrest |
| 550 | 708003163 | Middle Buckle |
| 560 | 708002329 | Passenger Buckle |
| 570 | 708003082 | LH Safety Belt |
| 575 | 708003200 | RH Safety Belt |
| 580 | 708003688 | Central Safety Belt This part replaces 708003164. |
| 605 | 207028046 | Hex. Screw M12 X 80 |
| 610 | 233221416 | Elastic Flange Nut M12 |
| 620 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 625 | 250200102 | Flat Washer M12 |
| 630 | 250100183 | Lock Nut Nylon 7/16 |
| 6120 | 250000722 | Torx Screw M6 X 20 |
| 6130 | 250200162 | Flat Washer M6.6 X 22 |
| 6140 | 233221416 | Elastic Flange Nut M12 |
| 6150 | 250100183 | Lock Nut Nylon 7/16 |
| 6155 | 708002504 | Safety Belt screw |
| 6160 | 708000890 | Safety Belt Screw |
