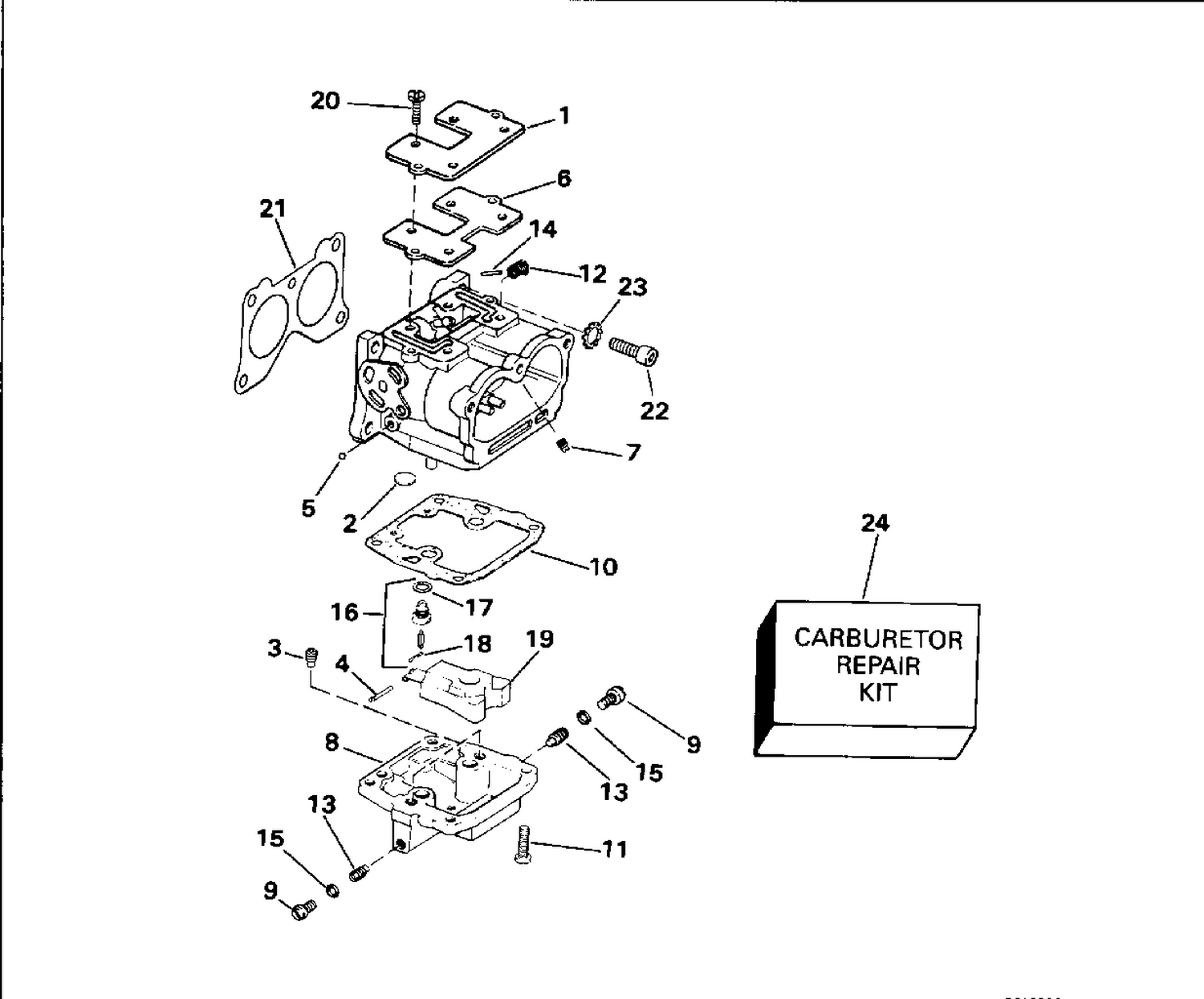

CARBURETOR
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0334352 | COVER, Idle channel |
| 3 | 0333459 | ORIFICE, #25C, 110 models |
| 6 | 0334353 | GASKET, Cover |
| 8 | 0435733 | FLOAT CHAMBER ASSY. |
| 10 | 0338884 | GASKET, Float bowl |
| 13 | 0321449 | ORIFICE PLUG 175 ONLY, No. 60c |
| 18 | 0336842 | CLIP, SPRING |
| 19 | 0383437 | FLOAT ASSEMBLY |
| 20 | 0333750 | SCREW, Cover |
| 21 | 0327707 | GASKET, Air silencer |
| 22 | 0203023 | SCREW, Bracket to upper carb. |
| 0433810 | 0437208 | CARBURETOR ASSY. This part replaces 0433810. |
