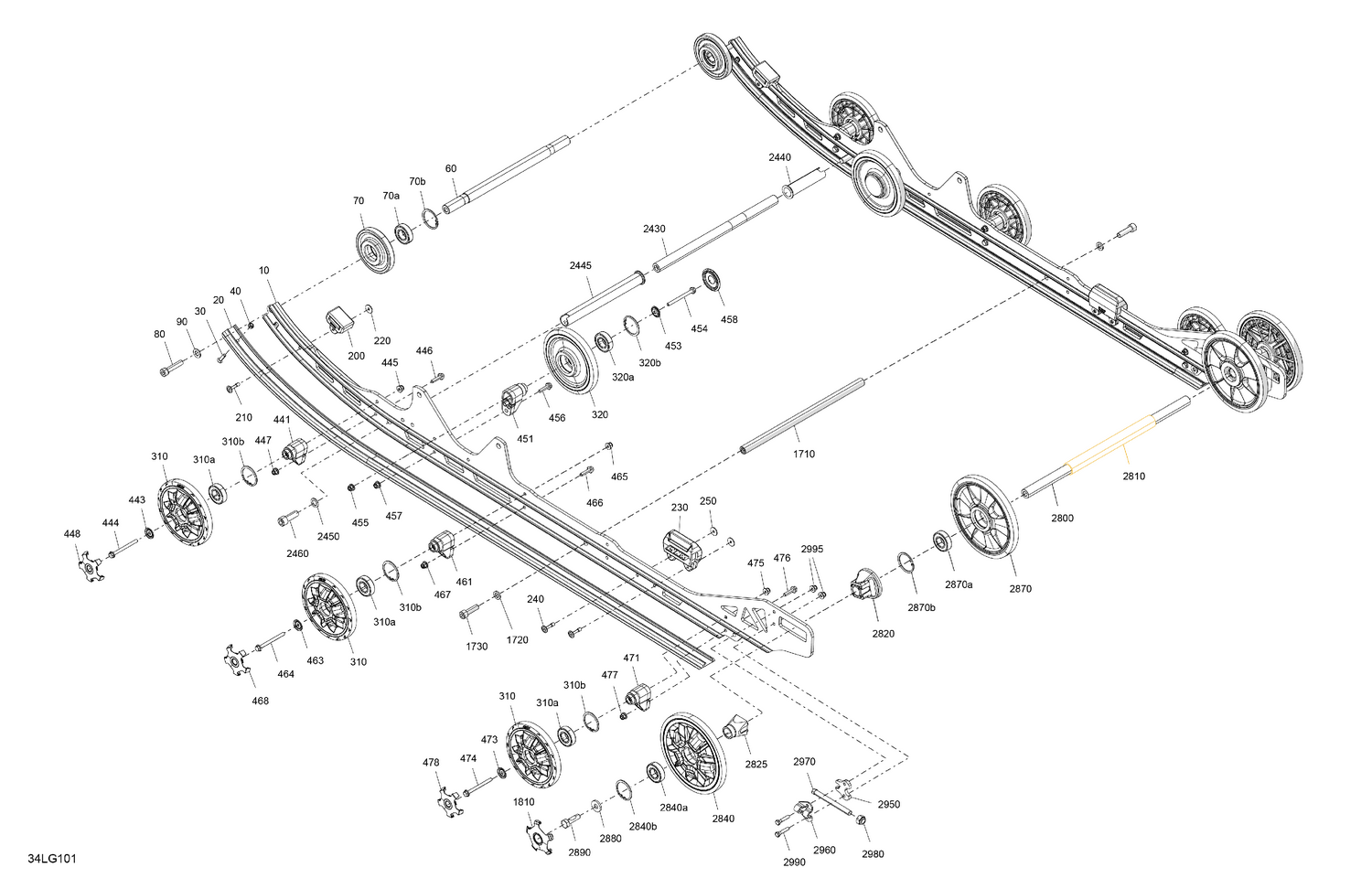

05- Suspension - Rear - Lower Section
Parts (71)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 503198034 | Rail Machined |
| 20 | 503197379 | Slide Suspension 154 |
| 30 | 208562531 | Phillips Screw M6 X 25 |
| 40 | 232561414 | Elastic Stop Nut M6 |
| 60 | 503197892 | Wheel Shaft |
| 70a | 503190396 | Ball Bearing |
| 70b | 415129371 | Retaining Ring |
| 80 | 205504544 | Socket Screw |
| 90 | 234001410 | Flat Washer 10 mm |
| 200 | 503193504 | Rubber Stopper |
| 210 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 220 | 503191273 | Washer |
| 230 | 503195028 | Rubber Stopper |
| 240 | 293150256 | Rivet Ornit 4.8 X 27.5 |
| 250 | 503191273 | Washer |
| 310a | 503190396 | Ball Bearing |
| 310b | 415129371 | Retaining Ring |
| 320a | 503190396 | Ball Bearing |
| 320b | 415129371 | Retaining Ring |
| 441 | 503193894 | Casted Support |
| 443 | 503191820 | Wheel Cup M6 |
| 444 | 250000944 | Hex. Flange Screw M6 X 70 |
| 445 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 446 | 250000945 | Hex. Flange Screw M6 X 25 |
| 447 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 448 | 503198173 | Deep Black, Wheel Cap |
| 451 | 503193894 | Casted Support |
| 453 | 503191820 | Wheel Cup M6 |
| 454 | 250000944 | Hex. Flange Screw M6 X 70 |
| 455 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 456 | 250000945 | Hex. Flange Screw M6 X 25 |
| 457 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 458 | 503192771 | Black, Wheel Cap |
| 461 | 503193894 | Casted Support |
| 463 | 503191820 | Wheel Cup M6 |
| 464 | 250000944 | Hex. Flange Screw M6 X 70 |
| 465 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 466 | 250000945 | Hex. Flange Screw M6 X 25 |
| 467 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 468 | 503198173 | Deep Black, Wheel Cap |
| 471 | 503193894 | Casted Support |
| 473 | 503191820 | Wheel Cup M6 |
| 474 | 250000944 | Hex. Flange Screw M6 X 70 |
| 475 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 476 | 250000945 | Hex. Flange Screw M6 X 25 |
| 477 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 478 | 503198173 | Deep Black, Wheel Cap |
| 1710 | 503198033 | Shaft |
| 1720 | 503192496 | Washer |
| 1730 | 205503554 | Socket Head Screw M10 X 35 |
| 1810 | 503198174 | Deep Black, Wheel Cap |
| 2430 | 503195279 | Center Shock Shaft |
| 2440 | 503195044 | Spacer |
| 2445 | 503195045 | Spacer |
| 2450 | 503189276 | Washer |
| 2460 | 205523554 | Socket Head Screw M12 X 35 |
| 2800 | 503195870 | Rear Shaft |
| 2810 | 503195871 | Spacer |
| 2820 | 503196753 | Rear Wheel Support |
| 2825 | 503197375 | Rear Wheel Spacer |
| 2840a | 503190396 | Ball Bearing |
| 2840b | 415129371 | Retaining Ring |
| 2870a | 503190396 | Ball Bearing |
| 2870b | 415129371 | Retaining Ring |
| 2880 | 503190439 | Washer |
| 2890 | 250000817 | Hex Screw With Nilon Patch, M10 X 35 |
| 2950 | 503193250 | Spacer |
| 2960 | 503192583 | Tensioner |
| 2970 | 230100054 | Hex Screw M10 x 100 |
| 2980 | 233601466 | Elastic Locking Nut M10 |
| 2990 | 207063054 | Hex. Cap Screw M6 X 30 |
