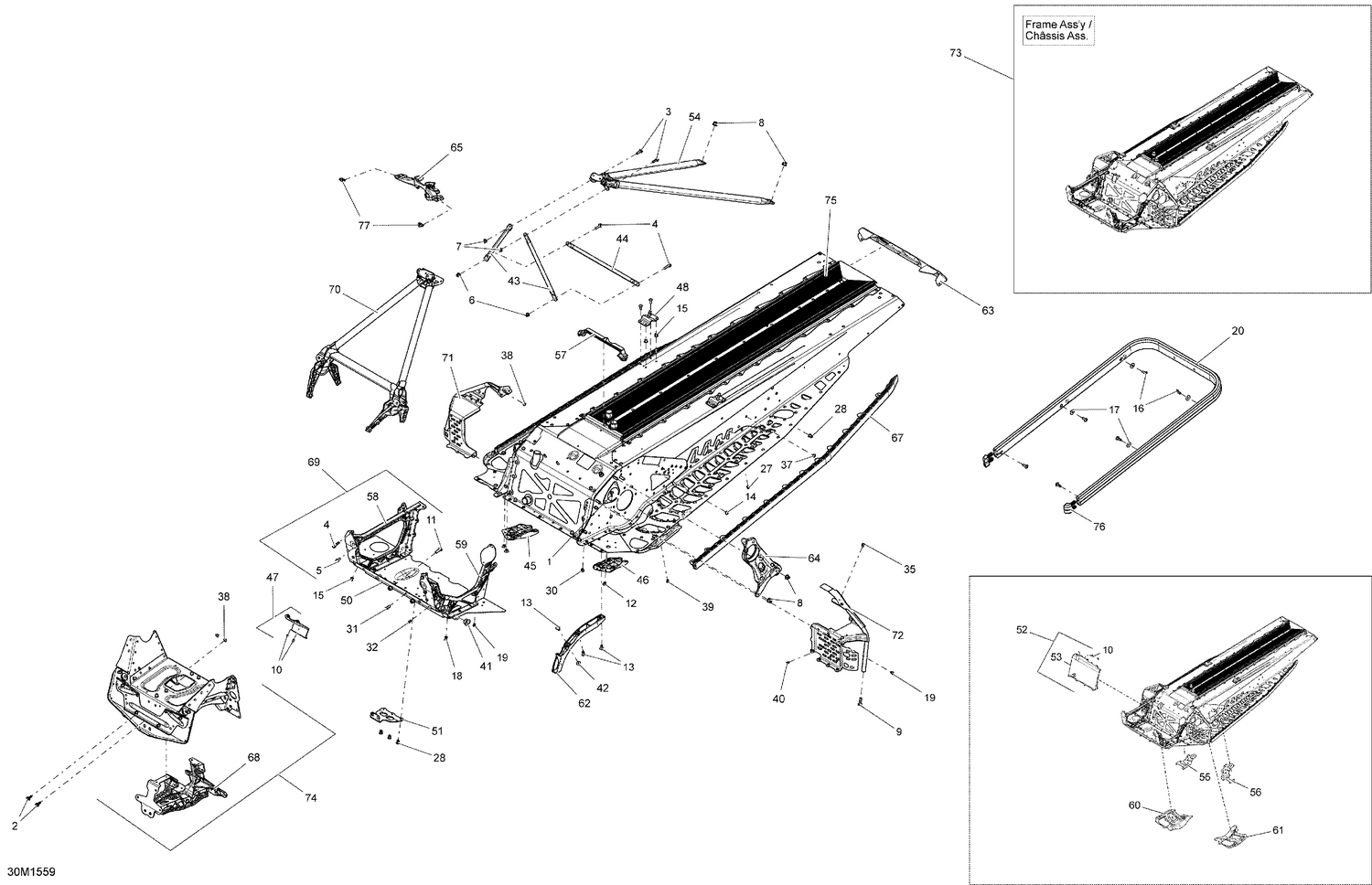

09- Frame _30M1559
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 207662544 | Hex. Flange Screw M6 X 25 |
| 5 | 210261650 | Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 6 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8 | 233281414 | Hex. Flange Elastic Nut M8 |
| 14 | 293730060 | Black, Dart 10 mm |
| 31 | 293150182 | Monobolt Rivet 6.4 |
| 32 | 293150191 | Monobolt Rivet, 4.8 mm |
| 37 | 293730047 | Black, Dart 8 mm |
| 38 | 293730053 | Black Dart 5 mm |
| 43 | 518325114 | Upper Lateral Column Support |
| 44 | 518325115 | Center Column Support |
| 50 | 518326198 | Front Member |
| 54 | 518326559 | Rear Member |
| 58 | 518326795 | RH Member |
| 59 | 518326796 | LH Member |
| 64 | 518327460 | Driven Pulley Support |
| 65 | 518327145 | Sub A Support |
