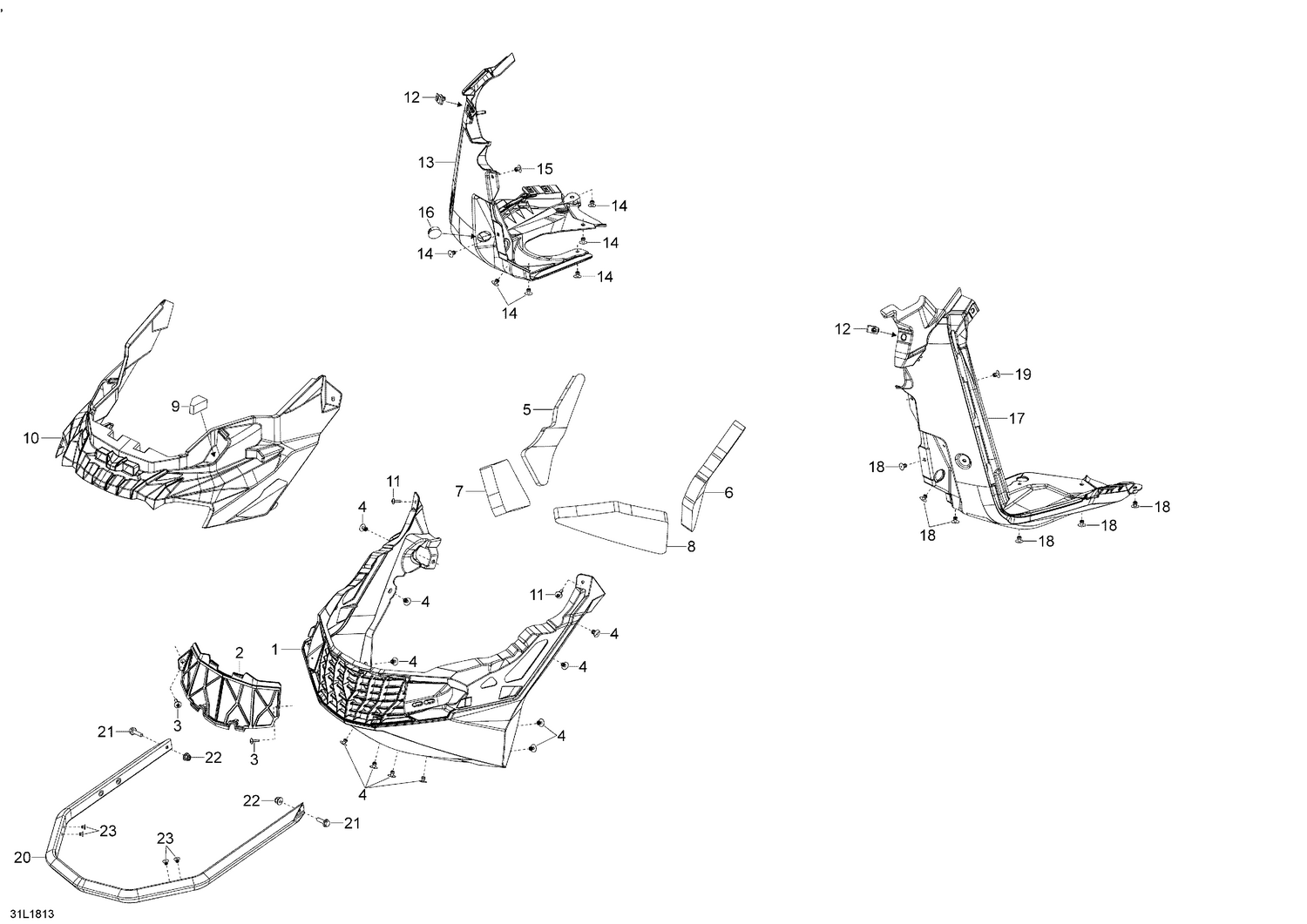

09- Bottom Pan 49 Ranger
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007172 | Black Front Bottom Pan |
| 2 | 517305029 | Pre-Filter |
| 3 | 250000810 | Flanged Screw 4.8 X 13 |
| 4 | 293150104 | Pop Rivet 3/16 |
| 5 | 502007243 | RH Bottom Pan Upper Foam |
| 6 | 502007244 | LH Bottom Pan Upper Foam |
| 7 | 502007245 | RH Bottom Pan Lower Foam |
| 8 | 502007246 | LH Bottom Pan Lower Foam |
| 9 | 517305812 | Foam |
| 10 | 502007284 | Front Cap |
| 11 | 250000528 | Torx Screw M5 X 20 |
| 12 | 250000958 | Panel Nut M5 X 0.8 |
| 13 | 502007259 | RH Bottom Pan |
| 14 | 293150104 | Pop Rivet 3/16 |
| 15 | 293150103 | Pop Rivet 3/16 |
| 16 | 414916600 | Nylon Cap |
| 17 | 502007260 | LH Bottom Pan |
| 18 | 293150104 | Pop Rivet 3/16 |
| 19 | 293150103 | Pop Rivet 3/16 |
| 20 | 502007281 | Black Front Bumper |
| 21 | 207662044 | Hex. Flange Screw M6 X 20 |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
