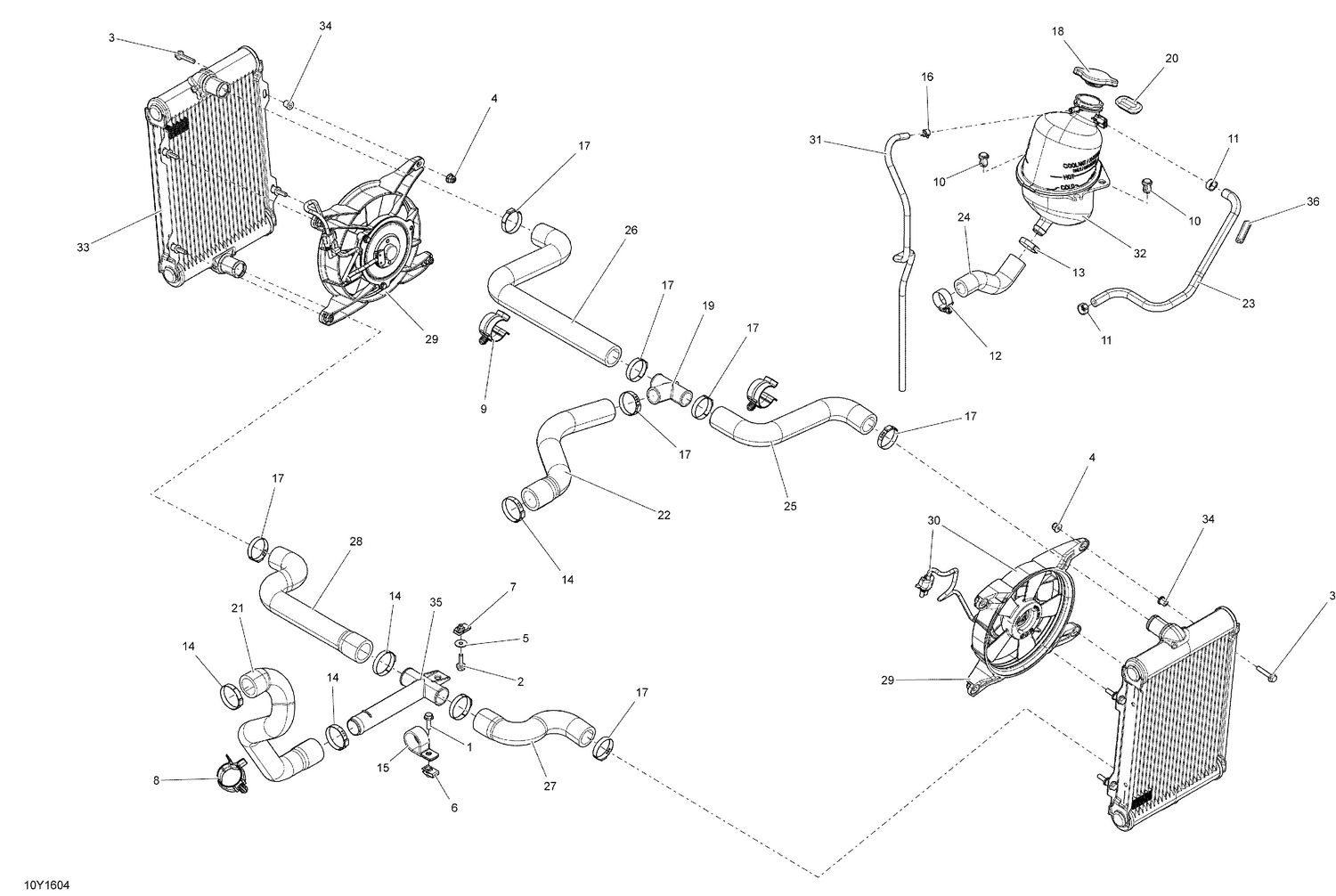

01- Cooling System
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip This part replaces 207562044. |
| 2 | 207662034 | Hex. Flange Screw M6 X 20 |
| 3 | 207663046 | Hex. Flange Screw M6 X 30 |
| 4 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 5 | 234062410 | Flat Washer 6 mm |
| 6 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 | 275500590 | Retainer |
| 9 | 275500951 | Clip |
| 10 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 11 | 293650025 | Oetiker Gear Clamp |
| 12 | 293650051 | Tridon Gear Clamp |
| 13 | 293650165 | Oetiker Gear Clamp |
| 14 | 293650199 | Oetiker Gear Clamp |
| 15 | 293750035 | Open Clamp |
| 16 | 414554800 | Spring Clamp |
| 17 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 18 | 509000187 | Pressure Cap |
| 19 | 509000219 | T-Fitting |
| 20 | 705003668 | Oblong Grommet |
| 21 | 709200877 | Lower Formed Water Pump Hose This part replaces 709200321. |
| 22 | 709200871 | Upper Formed Water Pump Hose This part replaces 709200322. |
| 23 | 709200324 | Formed Hose |
| 24 | 709200874 | Lower Formed Coolant Tank Hose This part replaces 709200499. |
| 25 | 709200876 | RH Upper Radiator Hose Formed This part replaces 709200510. |
| 26 | 709200875 | LH Upper Radiator Hose This part replaces 709200511. |
| 27 | 709200872 | RH Lower Formed Radiator Hose This part replaces 709200512. |
| 28 | 709200878 | LH Lower Formed Radiator Hose This part replaces 709200518. |
| 29 | 709200523 | Fan |
| 31 | 219704410 | Polyurethane Hose 10000Mm Long |
| 32 | 709200749 | Coolant Tank This part replaces 709200528. |
| 33 | 709200529 | Radiator |
| 34 | 709200553 | Sleeve |
| 35 | 709200580 | Manifold |
