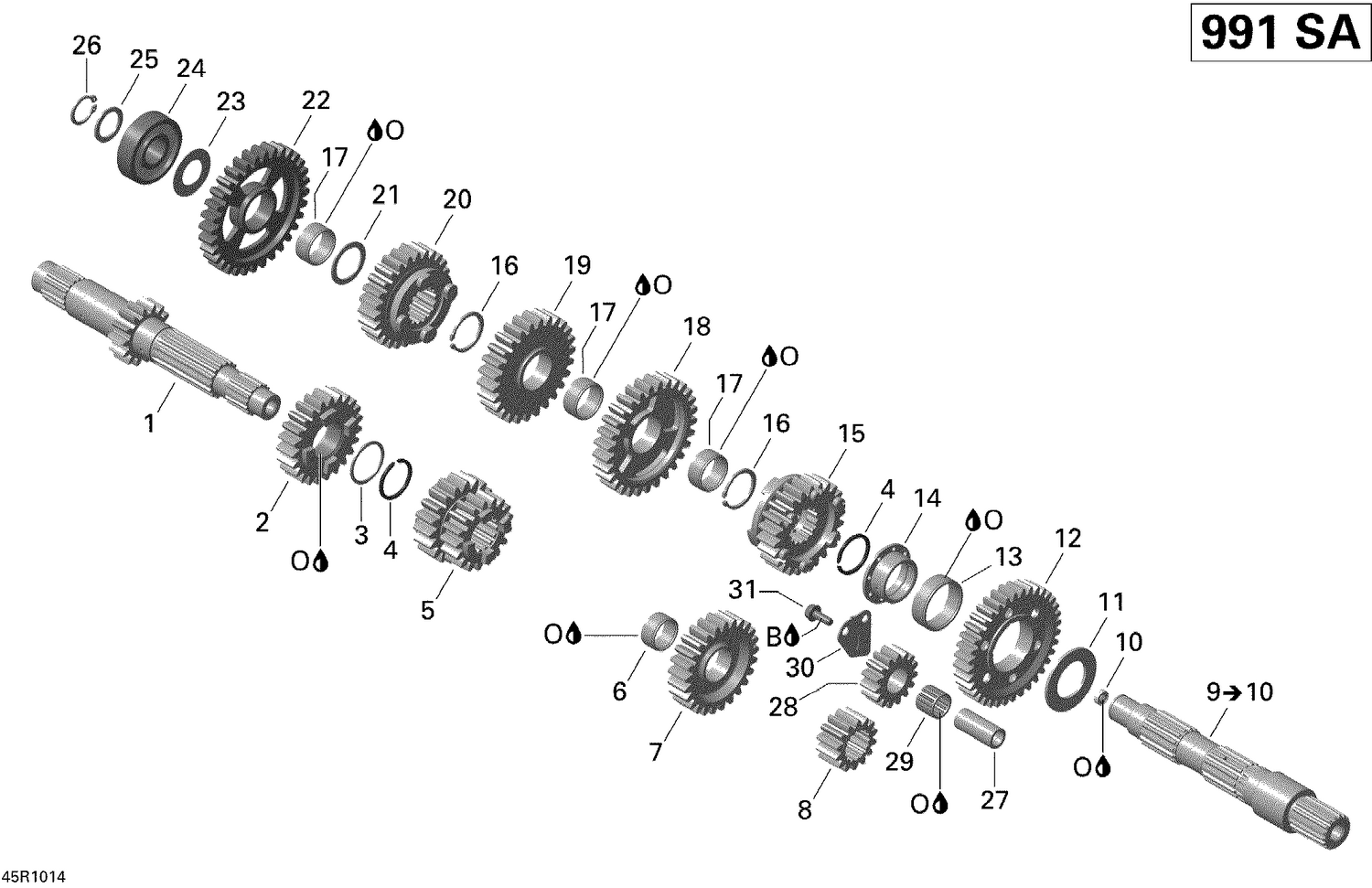

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| 1 |
420620630 |
Clutch Shaft |
| 2 |
420434446 |
FREE PINION, 23 TEETH ASS'Y - Call your local BRP dealership |
| 3 |
420627122 |
Thrust Washer This part replaces 420627120. |
| 4 |
420245817 |
Snap Ring - SE5 This part replaces 420245815. |
| 5 |
420434410 |
Pinion Gear, 17/19 Teeth |
| 6 |
420232530 |
Needle Bearing |
| 7 |
420434461 |
FREE PINION, 25 TEETH - Call your local BRP dealership |
| 8 |
420434482 |
PINION GEAR, 14 TEETH - Call your local BRP dealership |
| 10 |
420930500 |
Oil Seal |
| 11 |
420626381 |
Thrust Ring This part replaces 420626380. |
| 12 |
420434502 |
FREE PINION, 36 TEETH - Call your local BRP dealership |
| 13 |
420632197 |
Needle Bearing This part replaces 420632195. |
| 14 |
420632530 |
Bushing |
| 15 |
420620619 |
Main Shaft W Seal This part replaces 420434471. |
| 16 |
420845772 |
Retaining Ring This part replaces 420845775. |
| 17 |
420632070 |
Needle Bearing |
| 18 |
420434421 |
PINION GEAR, 29 TEETH - Call your local BRP dealership |
| 19 |
420434431 |
PINION GEAR, 26 TEETH - Call your local BRP dealership |
| 20 |
420620619 |
Main Shaft W Seal This part replaces 420434451. |
| 21 |
420427106 |
Washer |
| 22 |
420434402 |
PINION GEAR, 32 TEETH - Call your local BRP dealership |
| 23 |
420827110 |
SHIM - Call your local BRP dealership |
| 24 |
420832144 |
BALL BEARING - Call your local BRP dealership |
| 25 |
420227442 |
Thrust Washer |
| 26 |
420945665 |
Retaining Ring |
| 27 |
420229450 |
BOLT - Call your local BRP dealership |
| 28 |
420481055 |
Gear Set This part replaces 420434372. |
| 29 |
420432034 |
Needle Cage This part replaces 420432030. |
| 30 |
420224740 |
LOCKING TIE - Call your local BRP dealership |
| 31 |
420240580 |
TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
