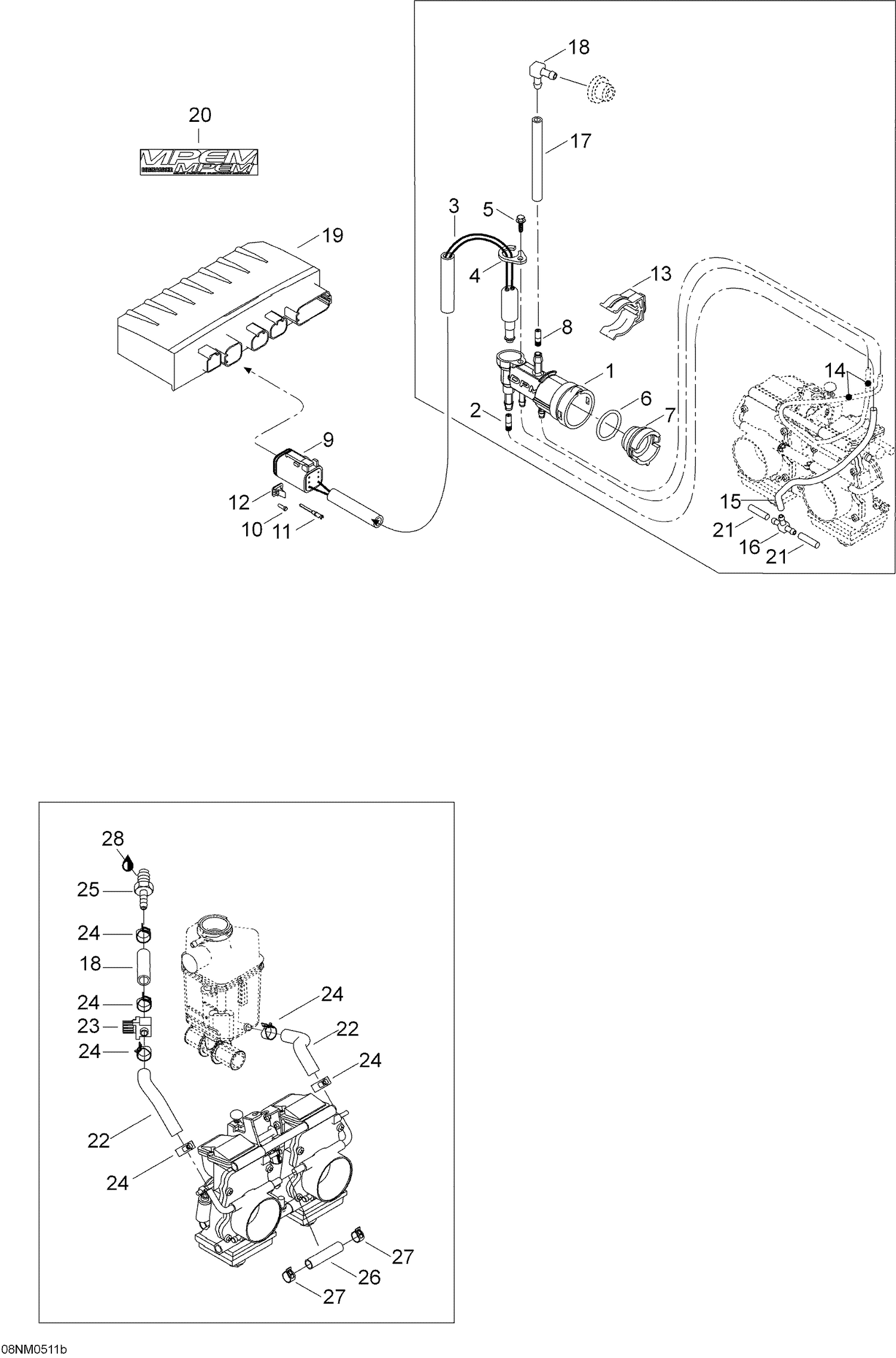

01- Engine And Engine Support
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 404161825 | STARTER JET - Call your local BRP dealership |
| 3 | 515175701 | PRESSURE MANIFOLD HARNESS - Call your local BRP dealership |
| 4 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 5 | 241140060 | Screw K40 x 10 |
| 6 | 293300042 | O-RING - Call your local BRP dealership |
| 7 | 270600009 | CAP - Call your local BRP dealership |
| 8 | 404161819 | Starter jet |
| 9 | 515175673 | Female connector housing |
| 10 | 293000052 | Sealing Cap |
| 11 | 278000632 | Female terminal |
| 12 | 515175678 | Wedge |
| 13 | 512058919 | SUPPORT - Call your local BRP dealership |
| 14 | 39004 | Hose |
| 15 | 512059524 | Hose |
| 16 | 414729300 | T-FITTING - Call your local BRP dealership |
| 17 | 512059651 | Hose |
| 18 | 414580600 | L-fitting |
| 19 | 512059661 | Calibrated module |
| 20 | 516000245 | Decal |
| 21 | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 22 | 509000093 | Hose |
| 23 | 512059324 | Ventil |
| 24 | 414655700 | Clamp |
| 25 | 293710082 | Straight fitting |
| 26 | 404161956 | Hose |
| 27 | Not | Available As Spare Part - Clamp |
