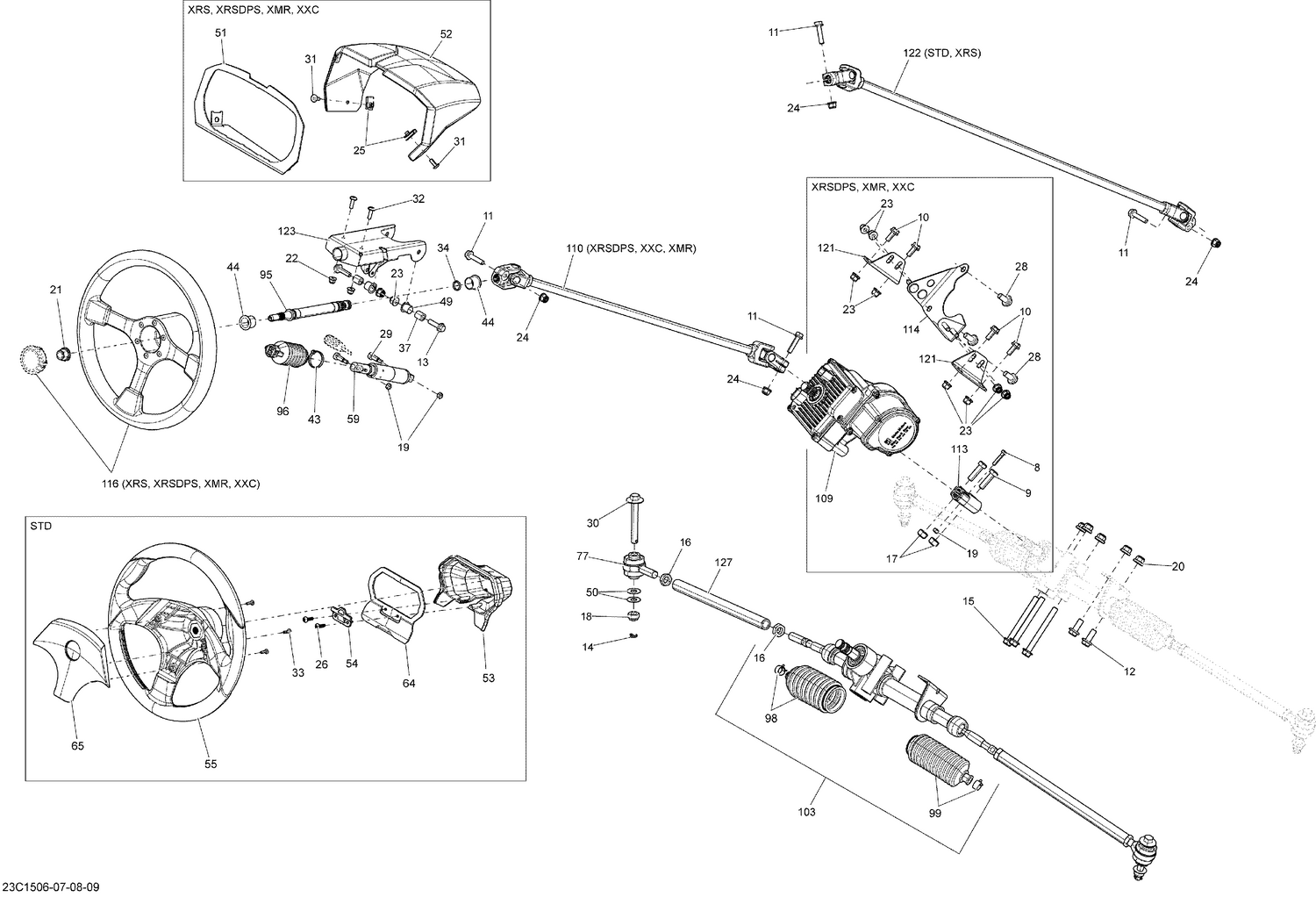

07- Steering _23C1509
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 12 | 207602546 | Hex. Flange Screw M10 X 25 |
| 13 | 207683044 | Hex. Flange Screw M8 X 30 |
| 14 | 211400017 | Cotter Pin |
| 15 | 230500046 | Hex. Screw M10 X 100, Scotch Grip |
| 16 | 715900238 | Steering Rod Nut |
| 18 | 232521416 | Elastic Stop Nut M12 |
| 19 | 232561434 | Elastic Stop Nut M6 |
| 20 | 233201436 | Hex. Flange Elastic Nut M10 |
| 21 | 233221414 | Hex. Flange Elastic Nut M12 |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 23 | 233281414 | Hex. Flange Elastic Nut M8 |
| 24 | 233281416 | Hex. Elastic Flange Nut M8 |
| 30 | 250000657 | Hexagonal Screw M12 X 88 |
| 32 | 250000722 | Torx Screw M6 X 20 |
| 34 | 293300144 | O-Ring |
| 35 | 250000669 | Socket Head Screw M8 X 16 |
| 37 | 293900106 | Bushing |
| 43 | 414115200 | Tie-Rap 180 mm |
| 44 | 709402725 | Steering Bushing This part replaces 415108000. |
| 49 | 705600799 | Bushing |
| 50 | 706200281 | Hardened Washer This part replaces 250200086. |
| 59 | 709402506 | Adjustment Cylinder This part replaces 709400656. |
| 77 | 709401125 | Ball Joint |
| 95 | 709401167 | Steering Shaft |
| 96 | 709401232 | Boot Tube Side |
| 98 | 715900235 | Boot Kit, Pinion Side |
| 99 | 715900236 | Boot Kit, Tube Side |
| 103 | 709401325 | Rack And Pinion Steering |
| 123 | 709401391 | Painted Steering Wheel Support |
