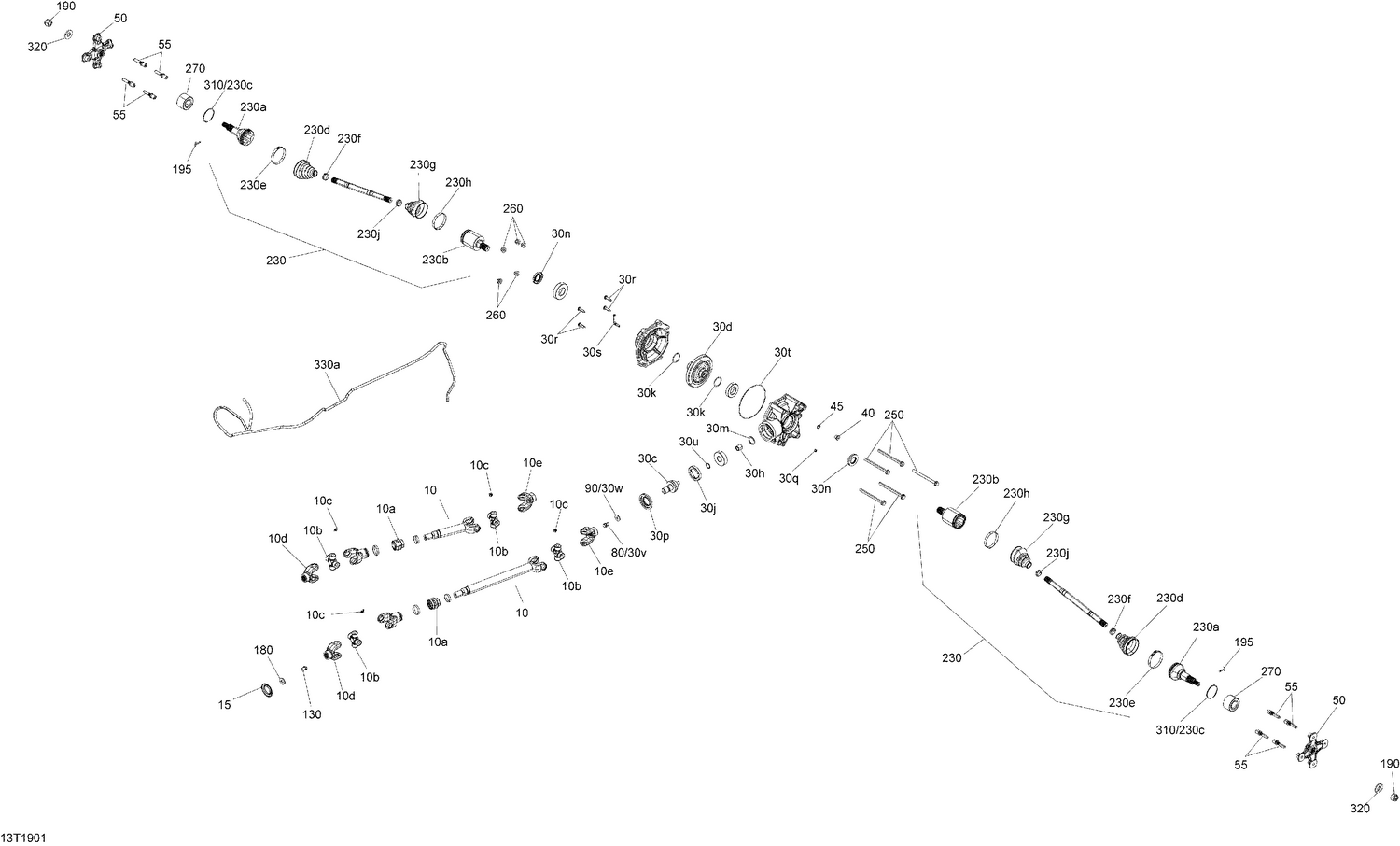

08- Rear Drive
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 715900118 | Rubber Boot |
| 10c | 715900295 | Grease Fitting |
| 10d | 715900438 | Yoke |
| 10e | 715900500 | Yoke |
| 15 | 705501123 | Protector |
| 30c | 705502053 | Pinion 10 Teeth |
| 30d | 705502682 | Gear 36 Teeth This part replaces 705502054. |
| 30h | 705502058 | Needle Bearing |
| 30j | 705502059 | Nut |
| 30k | 705502060 | Differential Shim 0.02 mm |
| 30m | 705502061 | Pinion Gear Shim 1.67 mm |
| 30n | 705501556 | Oil Seal |
| 30p | 705502062 | Oil Seal |
| 30q | 705501724 | Plug Drain |
| 30r | 705502063 | Screw |
| 30s | 705501584 | Breather Tube |
| 30t | 705502064 | Seal |
| 30u | 705502065 | O-Ring |
| 30v | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 30w | 250200014 | Flat Washer M10 |
| 40 | 705500504 | Fill Level Plug |
| 45 | 705500506 | Copper Washer |
| 50 | 705501716 | Wheel Hub Ass'y |
| 80 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP |
| 90 | 250200014 | Flat Washer M10 |
| 130 | 250001039 | Hex Flange Screw M12 X 16 |
| 180 | 250200005 | Conical Spring Washer M12 |
| 190 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 195 | 250400071 | Cotter Pin |
| 230a | 705401344 | CV Joint |
| 230b | 715900304 | Plunging Joint |
| 230c | 705501781 | Circlip |
| 230e | 715900282 | Oetiker Clamp |
| 230f | 715900283 | Oetiker Clamp, Small |
| 230h | 715900284 | Oetiker Clamp, Large |
| 230j | 715900261 | Oetiker Clamp, Small |
| 250 | 250001041 | Hex. Flange Screw M10 X 135 |
| 260 | 233201436 | Hex. Flange Elastic Nut M10 |
| 270 | 293350150 | Ball Bearing This part replaces 293350118. |
| 310 | 293370019 | Circlip |
| 320 | 250200171 | Conical Spring Washer M18 |
