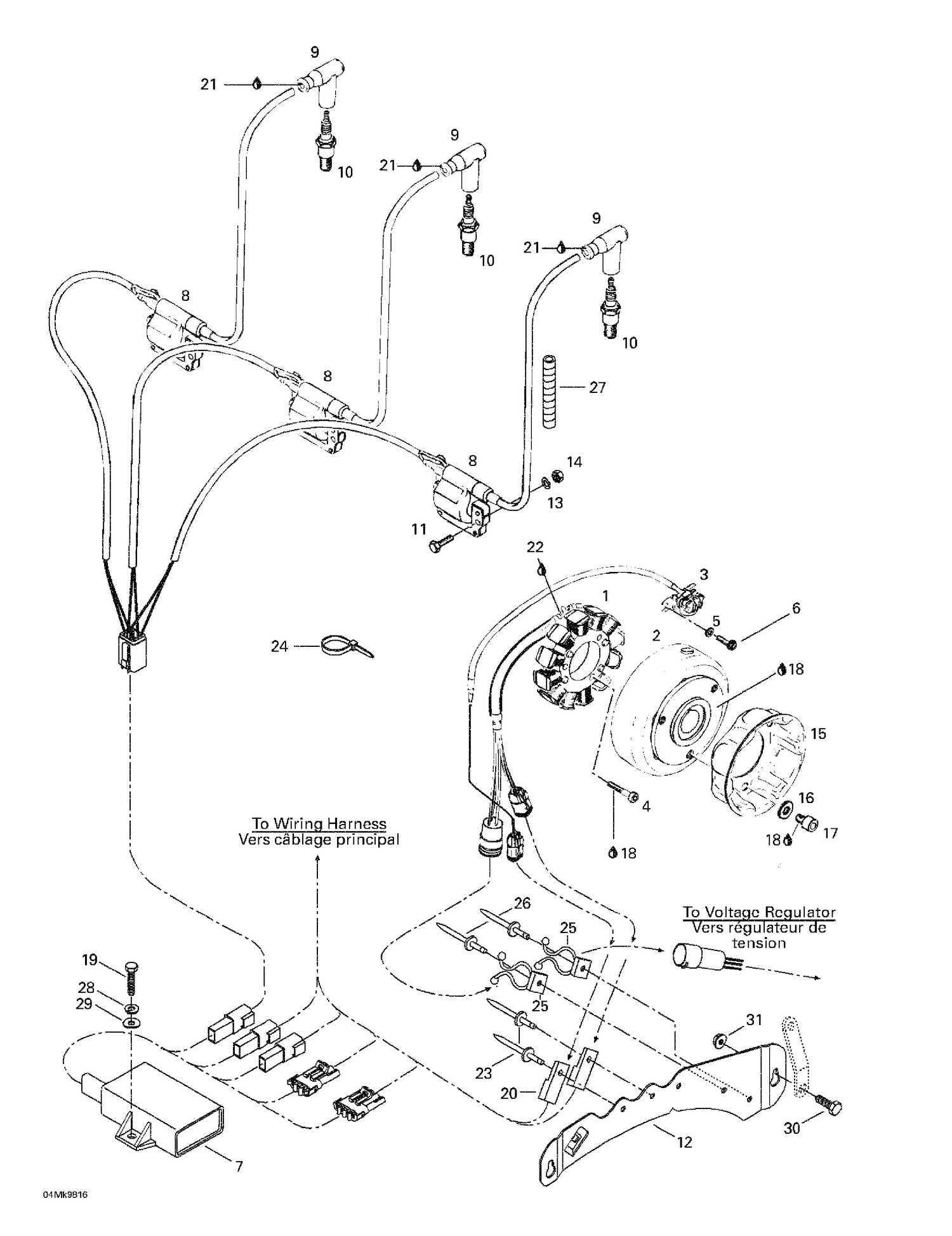

| Ref | Part Number | Description |
|---|
| 1 |
410922700 |
Stator Ass'y |
| 2 |
410922800 |
Magneto Flywheel |
| 3 |
410922900 |
Pick Up Ass'y |
| 4 |
420840887 |
SOCKET HEAD SCREW M6 X 30 - Call your local BRP dealership This part replaces 420840886. |
| 5 |
420827800 |
WASHER - Call your local BRP dealership |
| 6 |
420941928 |
Taptite Screw M5 X 16 This part replaces 420941925. |
| 7 |
415084900 |
Amplifier Box |
| 8 |
420966705 |
Ignition Coil |
| 9 |
414864000 |
SPARK PLUG CAP - Call your local BRP dealership |
| 10 |
414586700 |
Spark Plug (NGK BR10-ES) |
| 11 |
207162044 |
Hex. Screw M6 X 20 This part replaces 222062065. |
| 12 |
517294900 |
Housing Support |
| 13 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 14 |
232061414 |
Hex. Nut M6 This part replaces 228061045. |
| 15 |
420852417 |
Starting Pulley |
| 16 |
420827405 |
Flat Washer |
| 17 |
420841520 |
Socket Head Screw M8 X 12 |
| 18 |
293800060 |
Loctite 243, 10 ml This part replaces 413703000. |
| 19 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 20 |
270000141 |
Clip |
| 21 |
413706100 |
LITHIUM GREASE, 400 GR - Call your local BRP dealership |
| 22 |
Not |
Available As Spare Part - Silastic 732 RTV, 100 ml |
| 23 |
Not |
Available As Spare Part - Rivet |
| 24 |
414115200 |
Tie-Rap 180 mm |
| 25 |
415115100 |
CLIP - Call your local BRP dealership |
| 26 |
390402500 |
RIVET_POP 1/8 - Call your local BRP dealership |
| 27 |
219704400 |
Was 409901800 Tubing (13 mm) |
| 28 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 29 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 30 |
207151444 |
Hex. Screw M5 X 14 This part replaces 222051465. |
| 31 |
233251434 |
Flange Elastic Nut M5 This part replaces 228751045. |
