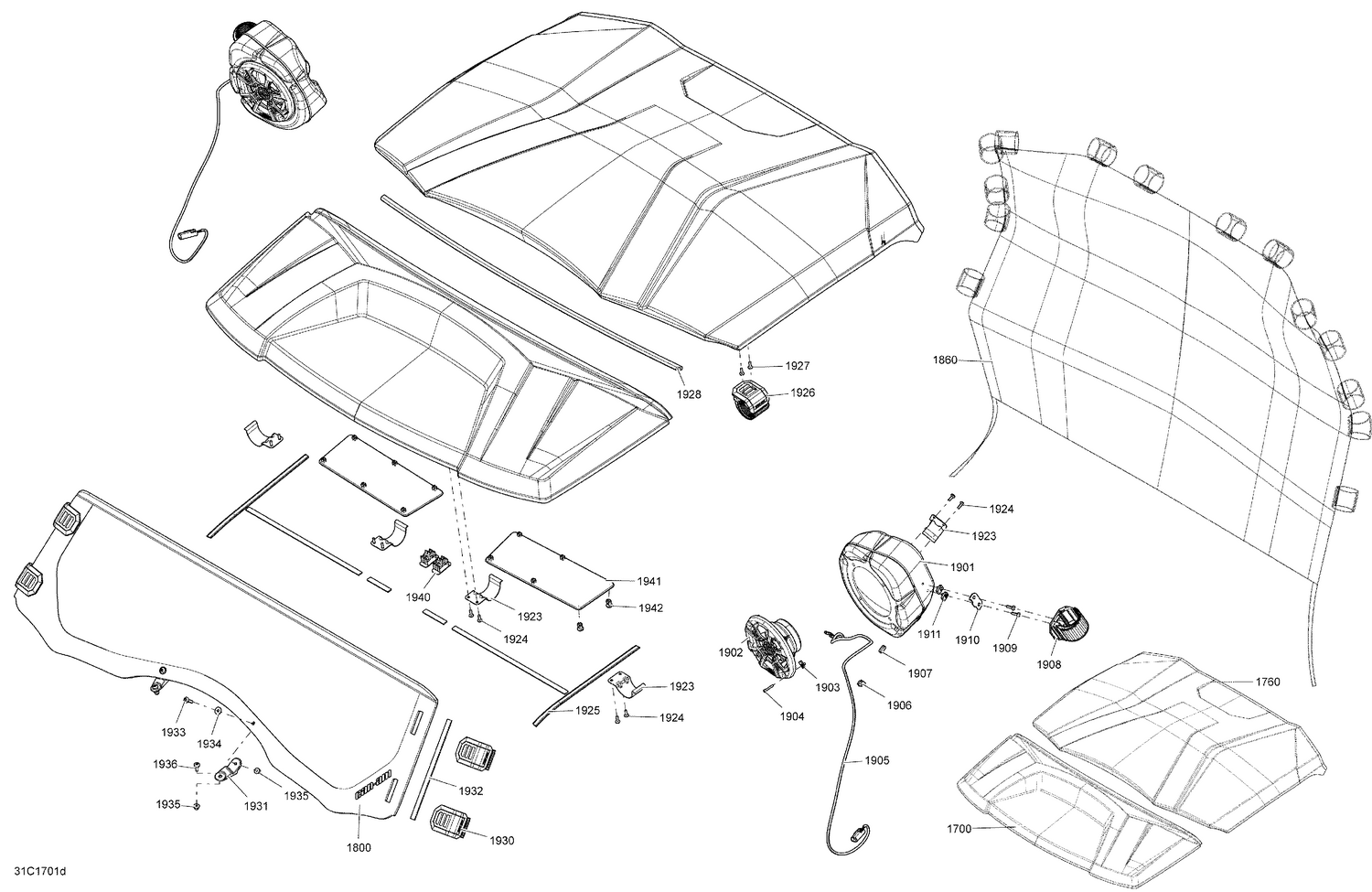

| Ref | Part Number | Description |
|---|
| 1700 |
715001952 |
ROOF VISOR ASS'Y - Call your local BRP dealership |
| 1760 |
715001949 |
Mid Roof Kit |
| 1800 |
703501024 |
Windshield Half Ass'y This part replaces 705005671. |
| 1860 |
715003078 |
Wind Deflector |
| 1901 |
710002837 |
LH Speaker Box Ass'y |
| 1901 |
710002839 |
RH Speaker Box Ass'y |
| 1902 |
710002838 |
Speaker |
| 1903 |
250100143 |
Extruded Panel Nut M4 X 0.7 |
| 1904 |
250000622 |
Torx Pan Screw M4 X 20 |
| 1905 |
710004341 |
Speaker Harness |
| 1906 |
414227300 |
Clip |
| 1907 |
414036300 |
Grommet |
| 1908 |
705013420 |
Retainer Velcro Perforated This part replaces 705007962. |
| 1909 |
250000724 |
Torx Screw M5 X 20 |
| 1910 |
710002946 |
M5 Support Plate |
| 1911 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 1923 |
705009030 |
U Brace Strip |
| 1924 |
250000720 |
Torx Screw K50 X 16 |
| 1925 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1926 |
705013420 |
Retainer Velcro Perforated This part replaces 705007962. |
| 1927 |
250000720 |
Torx Screw K50 X 16 |
| 1928 |
219704368 |
Seal Tray 1000Mm Long |
| 1929 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1930 |
705013420 |
Retainer Velcro Perforated This part replaces 705007961. |
| 1931 |
705005776 |
Windshield Support |
| 1932 |
219704476 |
Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 1933 |
250000758 |
Torx Screw M6 X 25 |
| 1934 |
234062670 |
Stainless Steel Flat Washer |
| 1935 |
233261494 |
Hex. Flange Elastic Nut M6 |
| 1936 |
250000488 |
Torx Truss Screw M6 X 20 |
| 1940 |
710007173 |
Plug Carling This part replaces 710001999. |
| 1941 |
280000496 |
VISOR POCKET - Call your local BRP dealership |
| 1942 |
293150230 |
Tuflok Plastic Rivet This part replaces 293150089. |
