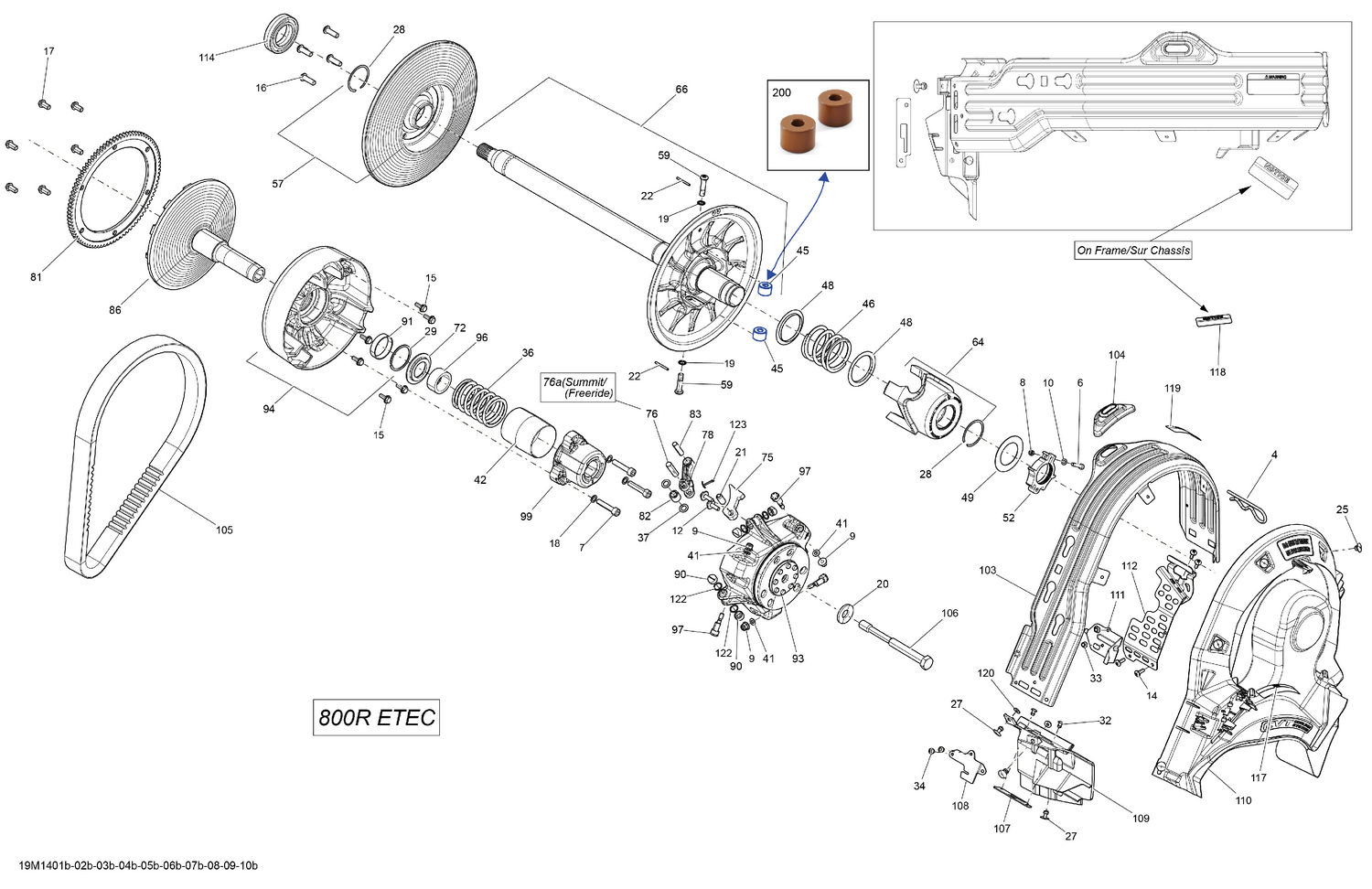

05- Pulley System 800R ETEC_19M1403b
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 114045200 | Hair Pin |
| 6 | 205052544 | Socket Screw M5 X 25 |
| 7 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 8 | 232551414 | Elastic Stop Nut M5 |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 234051410 | Flat Washer M5 |
| 12 | 250000418 | Hex. Flange Screw M6 X 18, Scotch Grip |
| 14 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 15 | 250000416 | Serrated Hex. Flange Bolt M6 |
| 16 | 250000283 | Torx Screw M8 X 25, Scotch Grip |
| 17 | 250000533 | Hex. Flange Screw M8 X 1.25 X 16 |
| 18 | 250200009 | Lock Washer 8 mm |
| 19 | 250200009 | Lock Washer 8 mm |
| 20 | 250200144 | Conical Spring Washer M14 |
| 21 | 250400050 | Spring Pin M10 X 22 |
| 22 | 250400063 | Spring Pin M3 X 30 |
| 25 | 293150103 | Pop Rivet 3/16" |
| 27 | 293150104 | Pop Rivet 3/16" |
| 28 | 293370049 | Circlip |
| 29 | 293370071 | Circlip |
| 32 | 390909100 | Avex Rivet |
| 33 | 390909200 | Avex Rivet |
| 34 | 390909200 | Avex Rivet |
| 36 | 414817700 | Spring, Blue/green |
| 37 | 417004302 | Stopper Washer |
| 41 | 417005600 | Washer |
| 42 | 417009205 | Guard |
| 45 | 417127016 | Pulley Roller |
| 46 | 417127137 | Green, Spring |
| 48 | 417127116 | Swivel Abutment |
| 49 | 417127155 | Washer |
| 52 | 415129604 | Calibration Ass'y |
| 57 | 417127317 | Sliding Flange Ass'y |
| 59 | 417127294 | Pivot Stud |
| 64 | 417127385 | CAM ASS'Y - Call your local BRP dealership |
| 66 | 417127387 | Fix Flange Ass'y |
| 72 | 417222312 | Spring Seat |
| 75 | 417222546 | Ramp 414 |
| 76 | 417222594 | Pin |
| 76a | XXX | Not Available As Spare Parts |
| 78 | 417222671 | Lever |
| 81 | 417225071 | Ring Gear_Starter This part replaces 417223739. |
| 82 | 417222947 | Roller |
| 83 | 417223164 | Lever Axle |
| 86 | 417223232 | Fixed Flange Ass'y |
| 90 | 417223271 | Slider Shoe |
| 91 | 417223086 | Bushing |
| 93 | 417223666 | Governor Cup Ass'y |
| 94 | 417223444 | Sliding Flange Ass'y |
| 96 | 417223471 | Bushing |
| 97 | 417223501 | Calibration Screw |
| 99 | 417222759 | Spring Cover Ass'y |
| 103 | 417300357 | Belt Guard |
| 104 | 417300381 | Guide |
| 105 | 417300571 | Drive Belt This part replaces 417300391. |
| 106 | 417300409 | TRA 7 Bolt (M14 X 153.5 mm) |
| 107 | 417300421 | Reinforcement Plate |
| 108 | 417300423 | Front Bracket |
| 109 | 417300430 | Front Support |
| 110 | 417300440 | CVT Air Duct Pulley |
| 111 | 417300445 | Stopper |
| 112 | 417300448 | BELT GUARD BRACKET - Call your local BRP dealership |
| 114 | 504152574 | Ball Bearing |
| 117 | 516005503 | Decal English |
| 118 | 516005507 | RPM Sticker, English |
| 119 | 516005509 | Safety Belt Guard Decal |
| 120 | 517225900 | Flat Washer |
| 122 | 732401030 | O-Ring |
| 123 | 250400060 | Cotter Pin |
