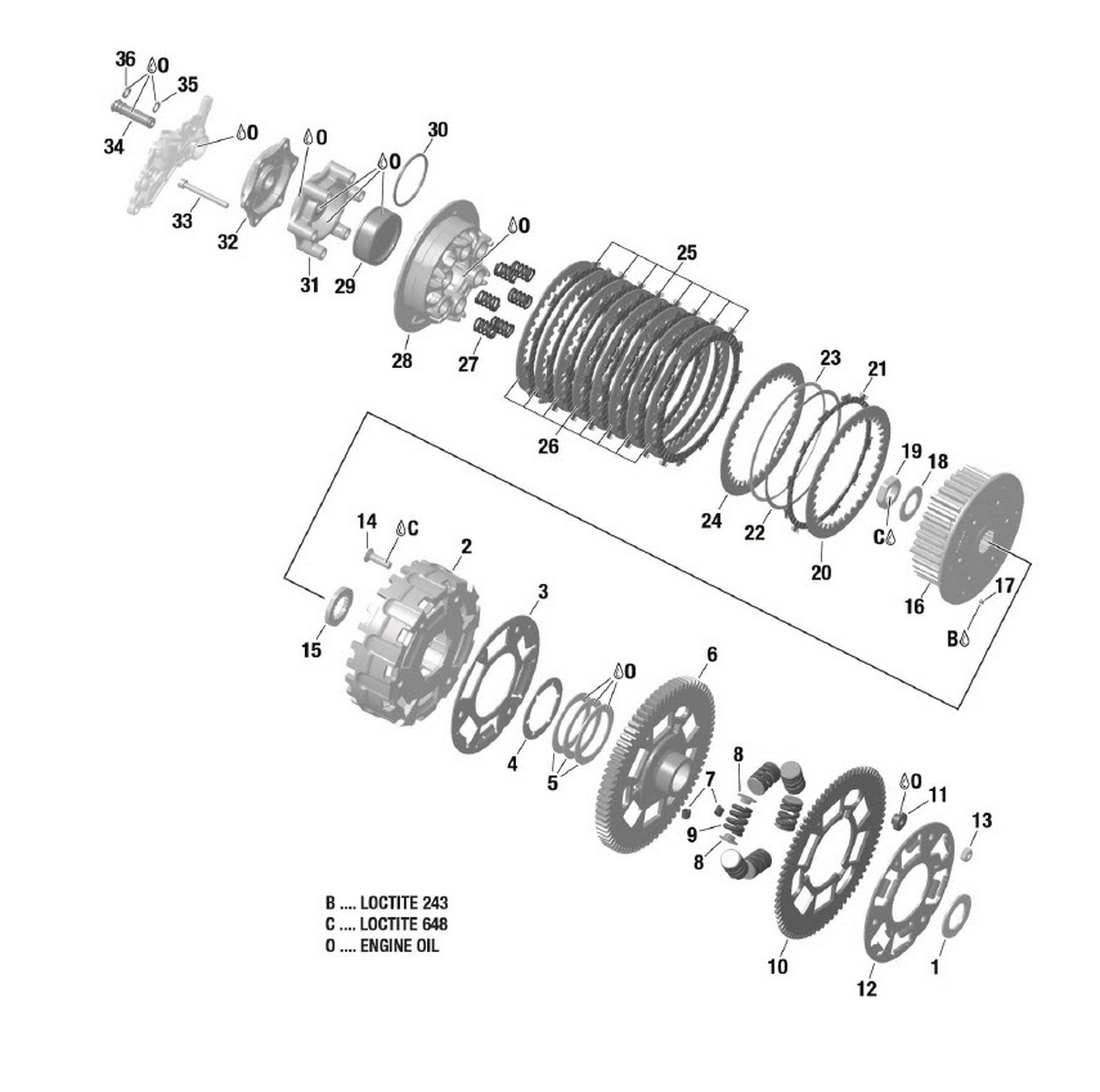

05- Clutch - SE6
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420627260 | Thrust Washer |
| 3 | 420459105 | Support Plate |
| 4 | 420626870 | Thrust Washer |
| 5 | 420239397 | Disc Spring |
| 6 | 420435408 | Clutch Gear This part replaces 420435406. |
| 7 | 420638030 | Compression Spring |
| 8 | 420247017 | Spring Retainer This part replaces 420247976. |
| 9 | 420238132 | Compression Spring |
| 10 | 420435413 | Anti Backlash Gear 75T |
| 11 | 420647200 | Distance Sleeve |
| 12 | 420459100 | Support Plate |
| 13 | 420242209 | Hex Nut M8 DIN 934 |
| 14 | 420440795 | Screw M8 X 28 |
| 15 | 420627225 | Thrust Washer |
| 17 | 420640805 | Adjustment Screw M4 X 4 This part replaces 420640800. |
| 18 | 420245830 | Spring Washer |
| 19 | 420242012 | Hex. Nut M24 This part replaces 420242954. |
| 21 | XXX | Not Available As Spare Parts |
| 22 | 420626970 | Thrust Washer |
| 23 | 420238980 | Disc Spring |
| 24 | XXX | Not Available As Spare Parts |
| 25 | XXX | Not Available As Spare Parts |
| 26 | XXX | Not Available As Spare Parts |
| 27 | 420238890 | Clutch Spring |
| 28 | 420459095 | Pressure Plate |
| 29 | 420456082 | Clutch Piston This part replaces 420456080. |
| 30 | 420201140 | Sealing Ring |
| 31 | 420456076 | CLUTCH CYLINDER - Call your local BRP dealership |
| 32 | 420212081 | Oil Duct Cover |
| 33 | 420240332 | Allen Screw M6 X 55 This part replaces 420240331. |
| 34 | 420456171 | Piston Oil Supply This part replaces 420456170. |
| 35 | 420201150 | Sealing Ring |
