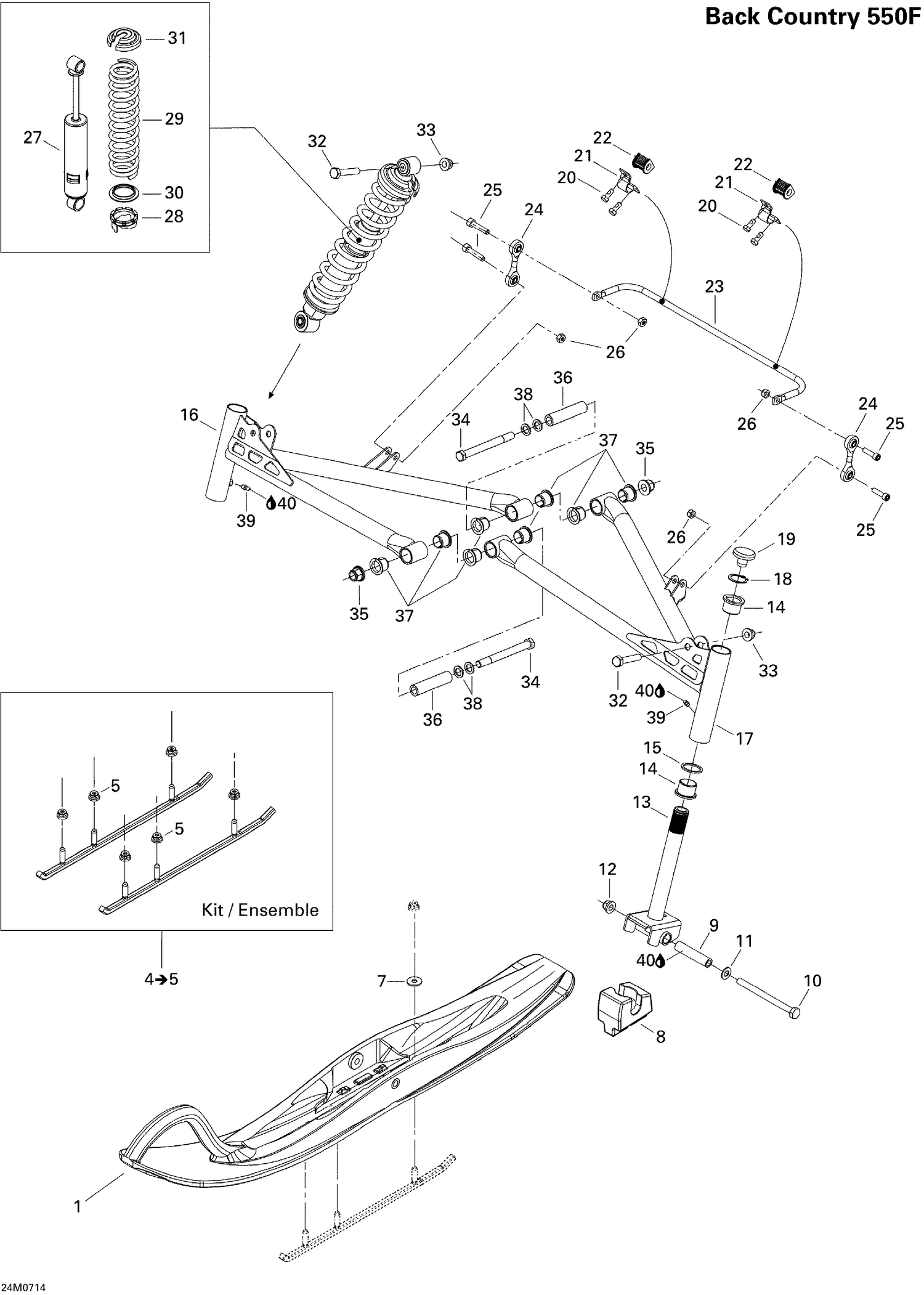

| Ref | Part Number | Description |
|---|
| 1 |
505072019 |
Small ''Blow Mold'' Ski |
| 5 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 7 |
234082410 |
Flat Washer 8 mm |
| 8 |
505070978 |
SKI STOPPER - Call your local BRP dealership |
| 9 |
506133300 |
Spacer |
| 10 |
250000703 |
Hex. Screw M10 X 130 This part replaces 230003044. |
| 11 |
224002251 |
FLAT WASHER - Call your local BRP dealership |
| 12 |
232500416 |
Elastic Stop Nut M10 |
| 13 |
505072001 |
SKI LEG - Call your local BRP dealership |
| 14 |
505070003 |
Cushion |
| 15 |
505070004 |
WASHER - Call your local BRP dealership |
| 16 |
505071739 |
RH LOWER ARM - Call your local BRP dealership |
| 17 |
505071740 |
LH LOWER ARM - Call your local BRP dealership |
| 18 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 19 |
572091300 |
Cap |
| 20 |
250000281 |
SCREW-HEX.CAP WITH NYLON PATCH - Call your local BRP dealership |
| 21 |
506095800 |
CLAMP - Call your local BRP dealership |
| 22 |
505072225 |
TORSION BUSHING - Call your local BRP dealership |
| 23 |
505072226 |
STABILISATOR - Call your local BRP dealership |
| 24 |
505071479 |
BALL JOINT - Call your local BRP dealership |
| 25 |
205083544 |
SOCKET HEAD SCREW M8 X 35 - Call your local BRP dealership |
| 26 |
232581414 |
Hex. Elastic Stop Nut M8 |
| 27 |
505072191 |
FRONT SHOCK - Call your local BRP dealership |
| 28 |
505073625 |
Adjustment Cam This part replaces 505070150. |
| 29 |
505071833 |
SPRING - Call your local BRP dealership |
| 30 |
503191872 |
Spring Guide This part replaces 517184300. |
| 31 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 32 |
207005544 |
Hex. Screw M10 X 55 |
| 33 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 34 |
230022044 |
HEX. SCREW M12 X 120 - Call your local BRP dealership |
| 35 |
233221414 |
Hex. Flange Elastic Nut M12 |
| 36 |
505071366 |
BUSHING - Call your local BRP dealership |
| 37 |
505072094 |
BUSHING - Call your local BRP dealership |
| 38 |
503189276 |
Washer |
| 39 |
408200700 |
Grease Fitting |
