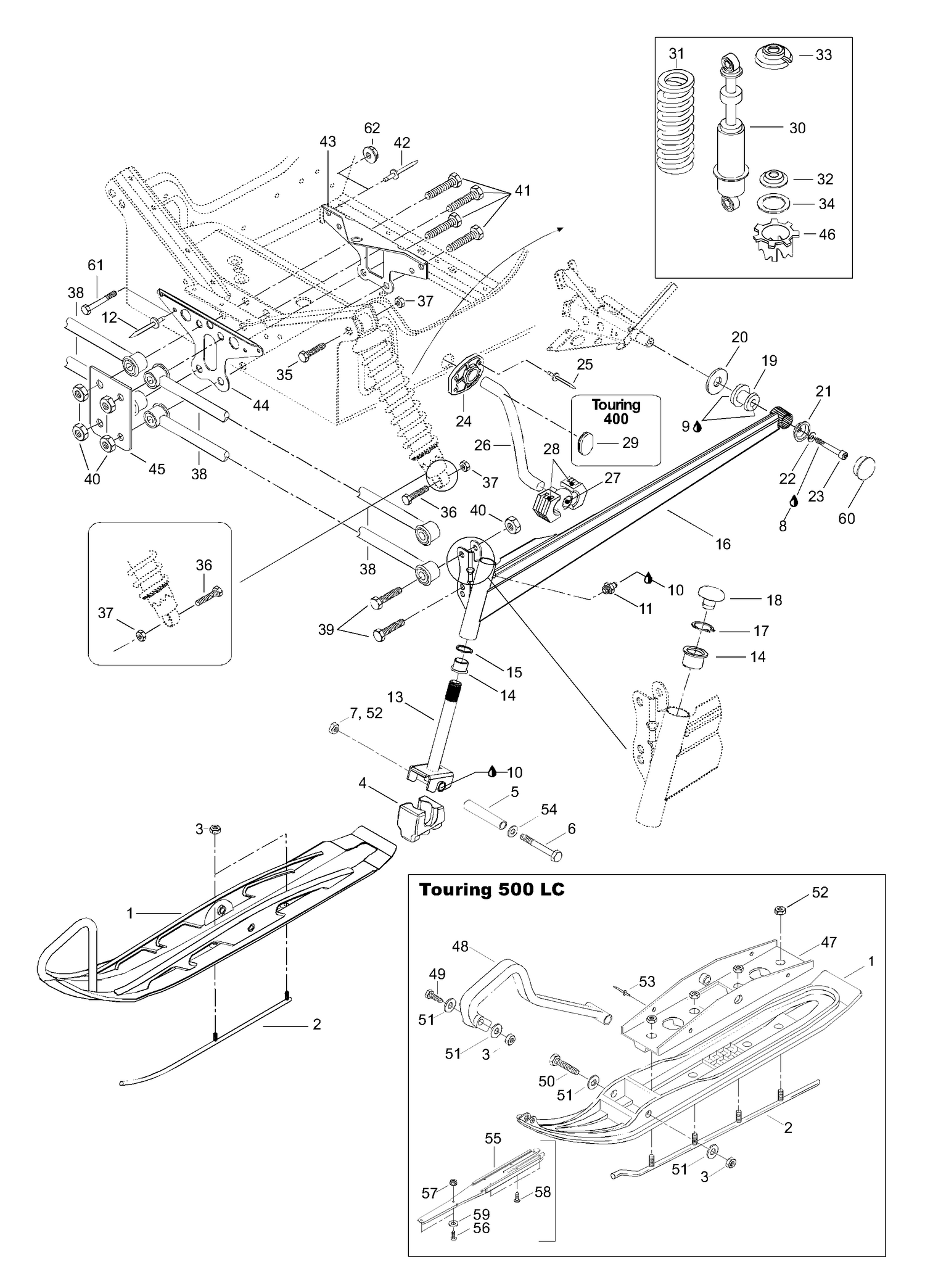

| Ref | Part Number | Description |
|---|
| 1 |
505070189 |
Ski liner This part replaces 505070190. |
| 2 |
860501900 |
CARBIDE RUNNER - Call your local BRP dealership |
| 3 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 33011. |
| 4 |
505072018 |
SKI STOPPER - Call your local BRP dealership This part replaces 506151233. |
| 5 |
506133300 |
Sleeve |
| 6 |
40814 |
Screw M10x110 |
| 7 |
Not |
Available As Spare Part - Nut elastic M10 - DOES NOT APPLY TO THIS MODEL |
| 8 |
293800060 |
Loctite 243, 10ml |
| 9 |
293550030 |
Grease, Super Lube This part replaces 293550014. |
| 10 |
413711500 |
SYNTHETIC GREASE - Call your local BRP dealership |
| 11 |
34011 |
Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 12 |
Not |
Available As Spare Part - Rivet - DOES NOT APPLY TO THIS MODEL |
| 13 |
506151234 |
Ski leg |
| 14 |
505070003 |
Sleeve |
| 15 |
505070004 |
WASHER - Call your local BRP dealership |
| 16 |
505070378 |
R.H. swing arm |
| 16 |
505070379 |
L.H. swing arm |
| 17 |
371910400 |
CIRCLIP - Call your local BRP dealership |
| 18 |
572091300 |
Cap |
| 19 |
570062200 |
DAMPER - Call your local BRP dealership |
| 20 |
503146700 |
WASHER - Call your local BRP dealership |
| 21 |
705007171 |
Cup This part replaces 506115800. |
| 22 |
20014 |
Spring washer |
| 23 |
40289 |
Allen screw M8x25 |
| 24 |
505070139 |
BUSHING - Call your local BRP dealership |
| 25 |
390402300 |
Rivet |
| 26 |
505070069 |
Stabilisator |
| 27 |
505070068 |
Ball joint |
| 28 |
572069800 |
Block sliding |
| 29 |
Not |
Available As Spare Part - Plugg - DOES NOT APPLY TO THIS MODEL |
| 30 |
505070015 |
Shock |
| 31 |
415075800 |
Spring |
| 32 |
503187500 |
Spring guide |
| 33 |
706200881 |
Spring Stopper This part replaces 503140600. |
| 34 |
Not |
Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL |
| 35 |
40019 |
Screw M10x60 |
| 36 |
40018 |
Screw M10x55 |
| 37 |
33082 |
Nut elastic M10 |
| 38 |
580649700 |
Arm |
| 39 |
401250 |
Screw M12x50 |
| 40 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 41 |
40023 |
Screw M10x100 |
| 42 |
Not |
Available As Spare Part - Rivet - DOES NOT APPLY TO THIS MODEL |
| 43 |
517254900 |
Rear link plate |
| 44 |
517254800 |
Front link plate |
| 45 |
518306700 |
Support |
| 46 |
505073625 |
Adjustment Cam This part replaces 503183700. |
| 47 |
505070055 |
Bridge assy |
| 48 |
505070963 |
Plastic handle This part replaces 572101000. |
| 49 |
40009 |
Screw M8x50 |
| 50 |
40869 |
Screw M8x100 |
| 51 |
234081410 |
Flat Washer 8 mm This part replaces 20004. |
| 52 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 53 |
390911100 |
RIVET_POP 1/4 - Call your local BRP dealership |
| 54 |
732900049 |
Washer |
| 55 |
505070232 |
PROACTIVE CONTROL (GT ONLY) - Call your local BRP dealership |
| 56 |
250000015 |
Allen screw M5x25 |
| 57 |
233251434 |
Flanged Elastic Nut M5 This part replaces 33062. |
| 58 |
40901 |
Screw |
| 59 |
20003 |
Washer |
| 60 |
572045900 |
CAP - Call your local BRP dealership |
| 61 |
40860 |
Screw M6x55 |
