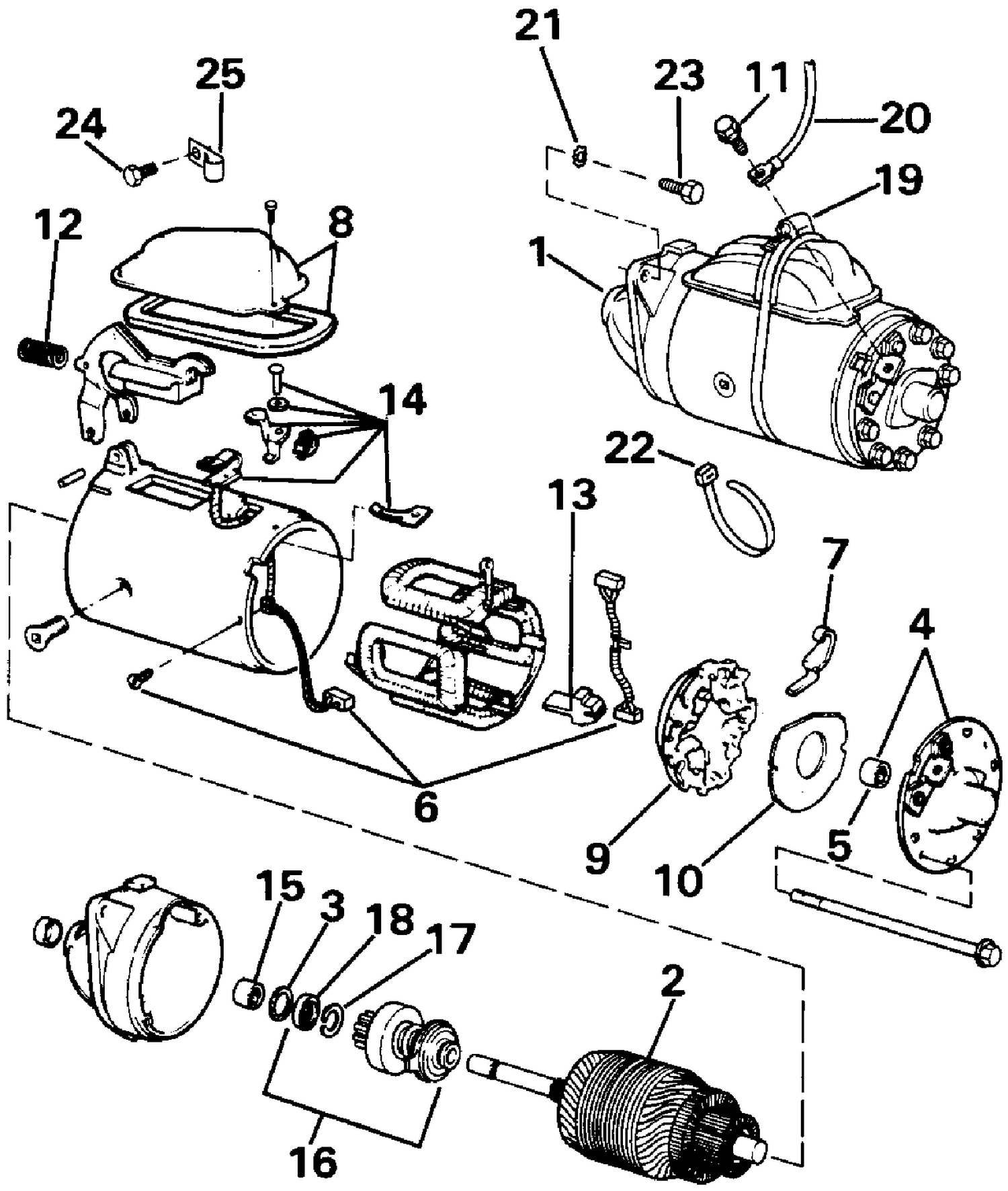

| Ref | Part Number | Description |
|---|
| 1 |
0984628 |
STARTER ASSEMBLY |
| 2 |
0985791 |
ARMATURE |
| 3 |
0913516 |
WASHER, Drive thrust |
| 4 |
0985794 |
PLATE & BUSHING, Brush end |
| 5 |
0913502 |
BUSHING |
| 6 |
0985795 |
BRUSH SET |
| 7 |
0913505 |
SPRING, Brush |
| 8 |
0913520 |
COVER, Plunger |
| 9 |
0913519 |
HOLDER, Brush |
| 10 |
0913517 |
INSULATOR, Brush holder |
| 11 |
0981823 |
SCREW & WASHER, Cable to plate |
| 12 |
0913511 |
SPRING, Plunger return |
| 13 |
0913518 |
GROMMET |
| 14 |
0985792 |
DRIVE ASSEMBLY |
| 15 |
0913502 |
BUSHING |
| 16 |
0985793 |
DRIVE ASSEMBLY |
| 17 |
3852713 |
RETAINER, Drive stop ring This part replaces 0913503. |
| 18 |
3852714 |
RING, Drive stop This part replaces 0913504. |
| 19 |
0913506 |
BAND, Plunger cover |
| 20 |
3853939 |
LEAD, Solenoid to solenoid This part replaces 0986221. |
| 21 |
0306993 |
L'WASHER,Potentiometer,12 V |
| 22 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 |
3853326 |
SCREW, Bracket to engine This part replaces 0914764. |
| 24 |
3853389 |
SCREW, Bracket to engine This part replaces 0914995. |
