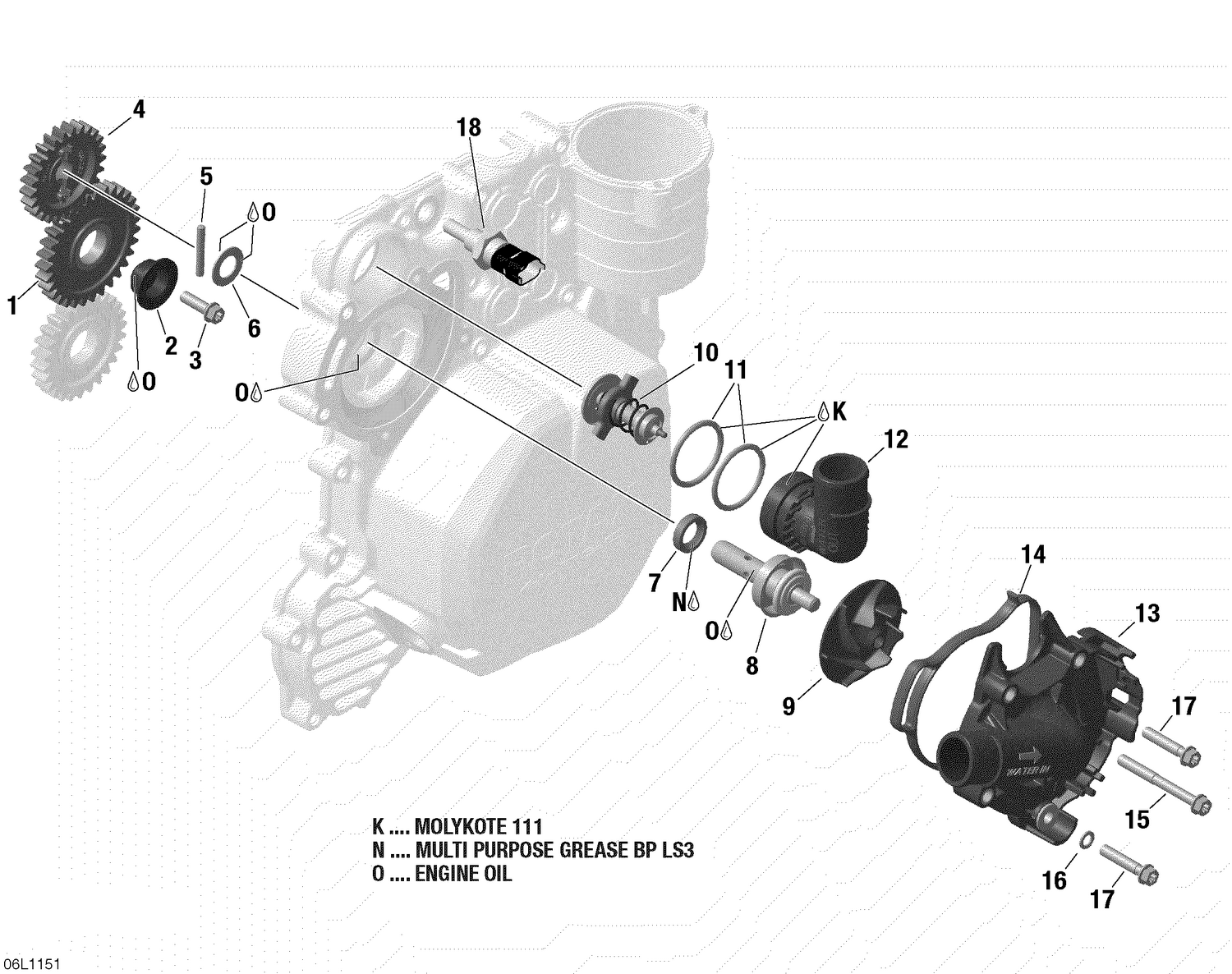

01- Engine Cooling
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| B | 293800060 | Loctite 243, 10 ml |
| O | 293600112 | Synthetic Oil 4T 12X1 L. |
| 1 | 420835067 | Idle Gear, 31 Teeth This part replaces 420835059. |
| 2 | 420947396 | Graduated Spacer This part replaces 420947390. |
| 4 | 420835230 | Water Pump Gear |
| 5 | 420232431 | Needle Pin This part replaces 420232430. |
| 6 | 420827261 | Thrust Washer 12,5/21,5/1 |
| 8 | 420820151 | WATERPUMP SHAFT ASSY. |
| 10 | 420822655 | Thermostat This part replaces 420822650. |
| 12 | 420922150 | Thermostat Cover |
