BOW ARM & DECK BRACKET GROUP

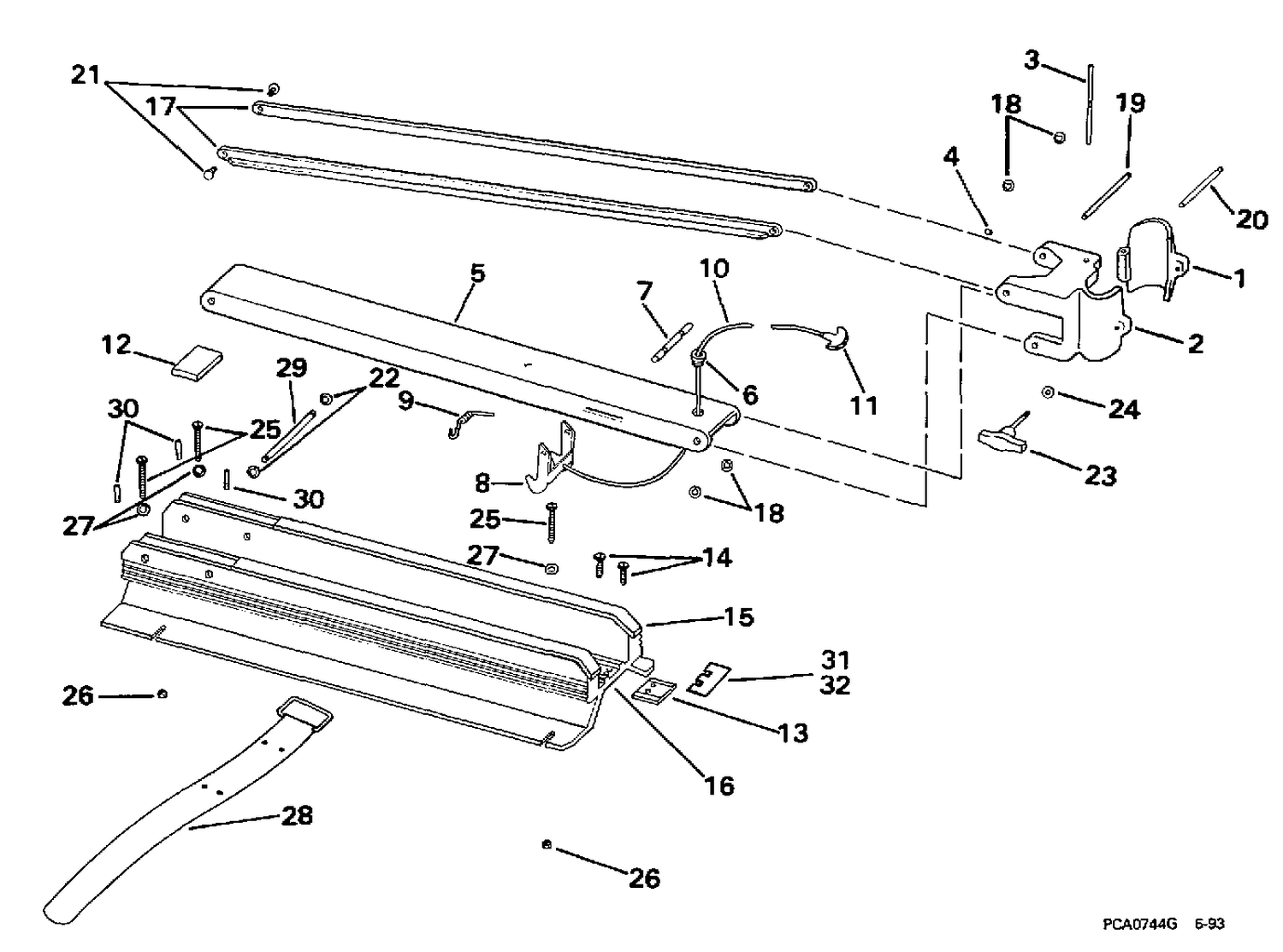

BOW ARM & DECK BRACKET GROUP

Parts (36)

RefPart NumberDescription
1 0115800 CLAMP, Motor tube
2 0115803 BRACKET, Motor tube
3 0115801 PIN, Bracket
4 0115802 SET SCREW
5 0116021 BOW ARM (HBFL2G) 42 in.
5 0116026 BOW ARM
6 0115972 EYELET, Bow arm
7 0115979 PIN, Latch
8 0115981 HOOK, Latch
9 0333726 SPRING
11 0325747 HANDLE
12 0115819 PAD, Motor rest
13 0116024 LATCH PLATE
14 0115292 SCREW
15 0115969 BUMPER
15 0116035 BUMPER (HBFL2G) 42 in.
16 0116029 MOTOR REST
16 0116033 MOTOR REST (HBFL2G) 42 in.
17 0115964 LINK
17 0116034 LINK (HBFL2G) 42 in.
18 0115806 E-RING
19 0115807 PIN, Link to bracket
20 0116039 PIN, Arm to bracket
21 0115814 HINGE PIN, Link to motor rest
22 0116036 WASHER, Arm to motor rest
23 0398862 ADJUSTMENT KNOB ASSY.
25 0115898 SCREW, Motor rest
26 0115237 NUT, Motor rest
28 0115825 LATCH STRAP
29 0116038 PIN, Arm to bracket
30 0115834 SET SCREW
31 0116010 SHIM
0116027 0116027 BOW ARM ASSY.
0116028 0116028 MOTOR REST ASSY.
0116040 0116040 MOTOR REST ASSY. (HBFL2G) 42 in.
0116041 0116041 BOW ARM ASSY. (HBFL2G) 42 in.
