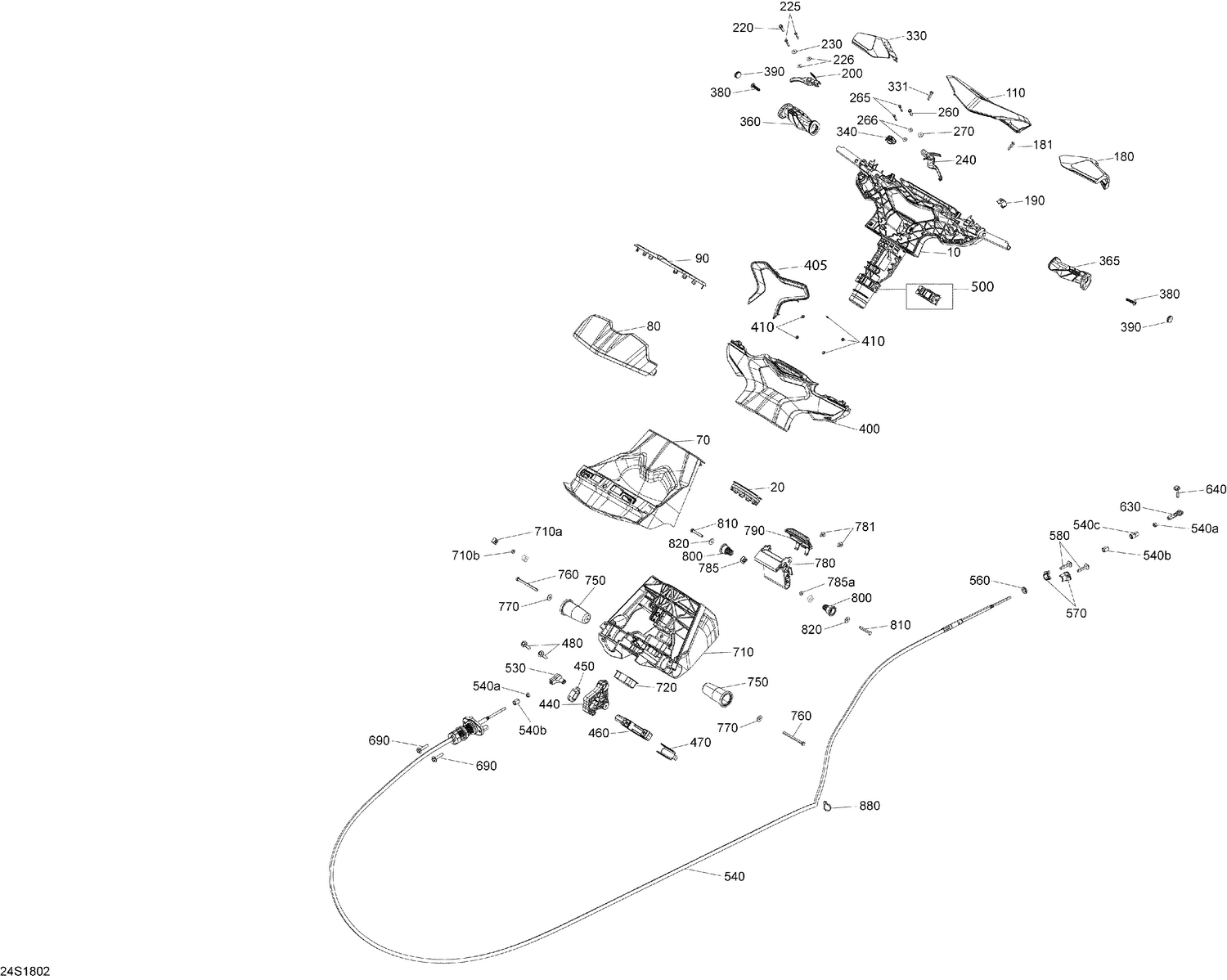

07- Steering GTX - LTD
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 277001979 | Steering Column |
| 20 | 277001874 | Wear Ring |
| 70 | 277002072 | Cluster Support |
| 80 | 277001981 | Deep Black, Cluster Support Cover |
| 90 | 277002074 | BEZEL FOR SPEED INDICATOR - Call your local BRP dealership |
| 110 | 277002245 | B-418, Handlebar Trim This part replaces 277002026. |
| 180 | 277002233 | LH Cover This part replaces 277001983. |
| 181 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 190 | 277002327 | Red Button Switch This part replaces 277002052. |
| 200 | 277001944 | Throttle Handle |
| 220 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 225 | 241142560 | Hex. Flange Screw K40 X 25 |
| 226 | 234042600 | Flat Washer 4 mm, Stainless |
| 230 | 234052600 | Flat Washer 5 mm, Stainless |
| 240 | 277001945 | Reverse Handle |
| 260 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 265 | 241142560 | Hex. Flange Screw K40 X 25 |
| 266 | 234042600 | Flat Washer 4 mm, Stainless |
| 270 | 234052600 | Flat Washer 5 mm, Stainless |
| 330 | 277001984 | RH Housing Cover |
| 331 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 340 | 277002053 | Push Button Grey |
| 360 | 277002058 | LH Handle Grip |
| 365 | 277002057 | RH Handle Grip |
| 380 | 250001007 | Screw Torx M6.81 X 30 This part replaces 250000709. |
| 390 | 277000203 | Black, Cap |
| 400 | 277001985 | Steering Cover |
| 405 | 277002061 | Limited Trim- Chrome |
| 410 | 250100206 | Push Nut |
| 440 | 295501183 | Steering Arm Kit This part replaces 277002081. |
| 450 | 295501183 | Steering Arm Kit This part replaces 277002075. |
| 460 | 277001987 | Arm |
| 470 | 277001654 | Spacer |
| 480 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 530 | 277002119 | End Fitting Cable This part replaces 277002011. |
| 540a | 211100056 | Hex. Nut 1/4"-28 |
| 540b | 277001582 | Wiper Rod |
| 540c | 277001583 | End Piece |
| 560 | 293830063 | Rubber Washer |
| 570 | 277001856 | Ring Halves |
| 580 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 630 | 277000775 | Ball Joint |
| 690 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 710a | 269502408 | Housing Nut M6 This part replaces 269501166. |
| 710b | 232561200 | Brass Elastic Stop Nut M6 |
| 720 | 277002318 | Wear Ring This part replaces 277001741. |
| 750 | 277001605 | Steering Support Pivot |
| 760 | 207168060 | Hex Screw M6 X 80 |
| 770 | 234062600 | Flat Washer M6, Stainless |
| 780 | 277001996 | Adjustment Handle |
| 781 | 293830005 | Rubber Bumper |
| 785a | 232561200 | Brass Elastic Stop Nut M6 |
| 790 | 277002010 | Lock |
| 800 | 277001652 | Pivot |
| 810 | 207064060 | Hex. Screw M6 X 40 |
| 820 | 234062600 | Flat Washer M6, Stainless |
| 880 | 414115200 | Tie-Rap 180 mm |
