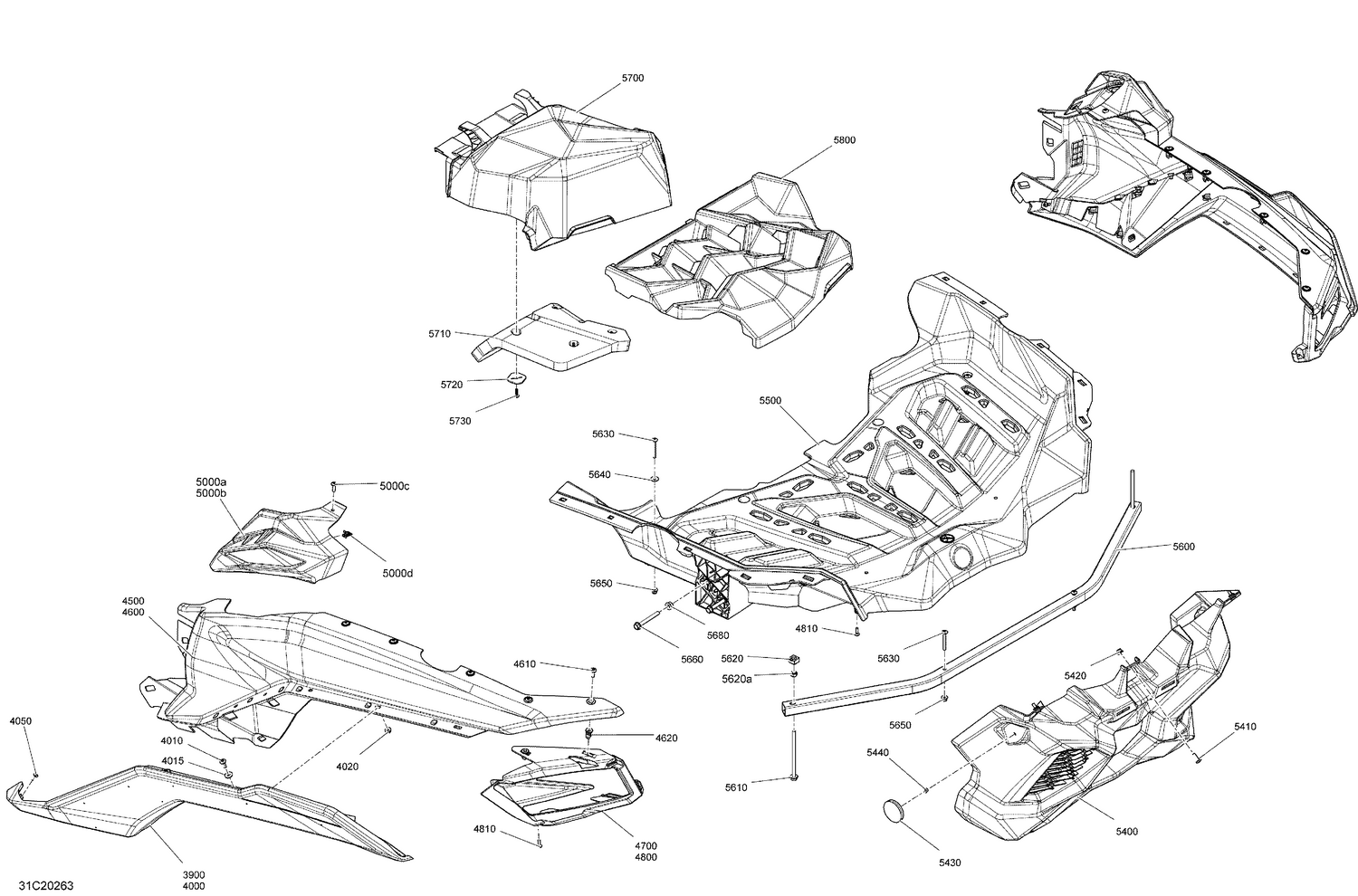

09- Body - Rear Section - White
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 3900 | 705009511 | LH Rear Fender Deflector |
| 4000 | 705017543 | RH Rear Fender Deflector This part replaces 705009512. |
| 4010 | 250000722 | Torx Screw M6 X 20 |
| 4015 | 234062670 | Stainless Steel Flat Washer |
| 4020 | 233161464 | Hex. Elastic Flange Nut M6 |
| 4050 | 250000720 | Torx Screw K50 X 16 |
| 4500 | 705009515 | White, LH Rear Fender |
| 4600 | 705009516 | White, RH Rear Fender |
| 4610 | 250000722 | Torx Screw M6 X 20 |
| 4620 | 705016606 | Insert This part replaces 705010872. |
| 4700 | 705010686 | LH Rear Lateral Cover |
| 4800 | 705010687 | RH Rear Lateral Cover |
| 4810 | 250000720 | Torx Screw K50 X 16 |
| 5000a | 705010335 | LH Rear Cage Trim |
| 5000b | 705010336 | RH Rear Cage Trim |
| 5000c | 250000722 | Torx Screw M6 X 20 |
| 5000d | 293650268 | Clip |
| 5400 | 705017558 | Rear Fairing This part replaces 705010001. |
| 5410 | 250000722 | Torx Screw M6 X 20 |
| 5420 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5430 | 705011221 | Red Reflector |
| 5440 | 233251494 | Elastic Flange Nut M5 |
| 5500 | 715006592 | Luggage Rack Kit This part replaces 715005779. |
| 5600 | 705012589 | Luggage rack Tube |
| 5610 | 230683034 | Hex. Flange Screw M8 X 130 |
| 5620a | 232581200 | Hex. Elastic Nut M8 Brass |
| 5630 | 250000868 | Torx Truss M6 X 50 |
| 5640 | 234062670 | Stainless Steel Flat Washer |
| 5650 | 233261494 | Hex. Flange Elastic Nut M6 |
| 5660 | 207687044 | Hex. Flange Screw M8 X 70 |
| 5670 | 233081416 | Hex. Flange Nut M8 |
| 5680 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 5700 | 705012700 | Air Inlet Cover |
| 5710 | 705011293 | Foam Air Intake Cover |
| 5720 | 705003841 | Support Plate |
| 5730 | 250000760 | Torx Screw Truss Head K50X20 T20 |
