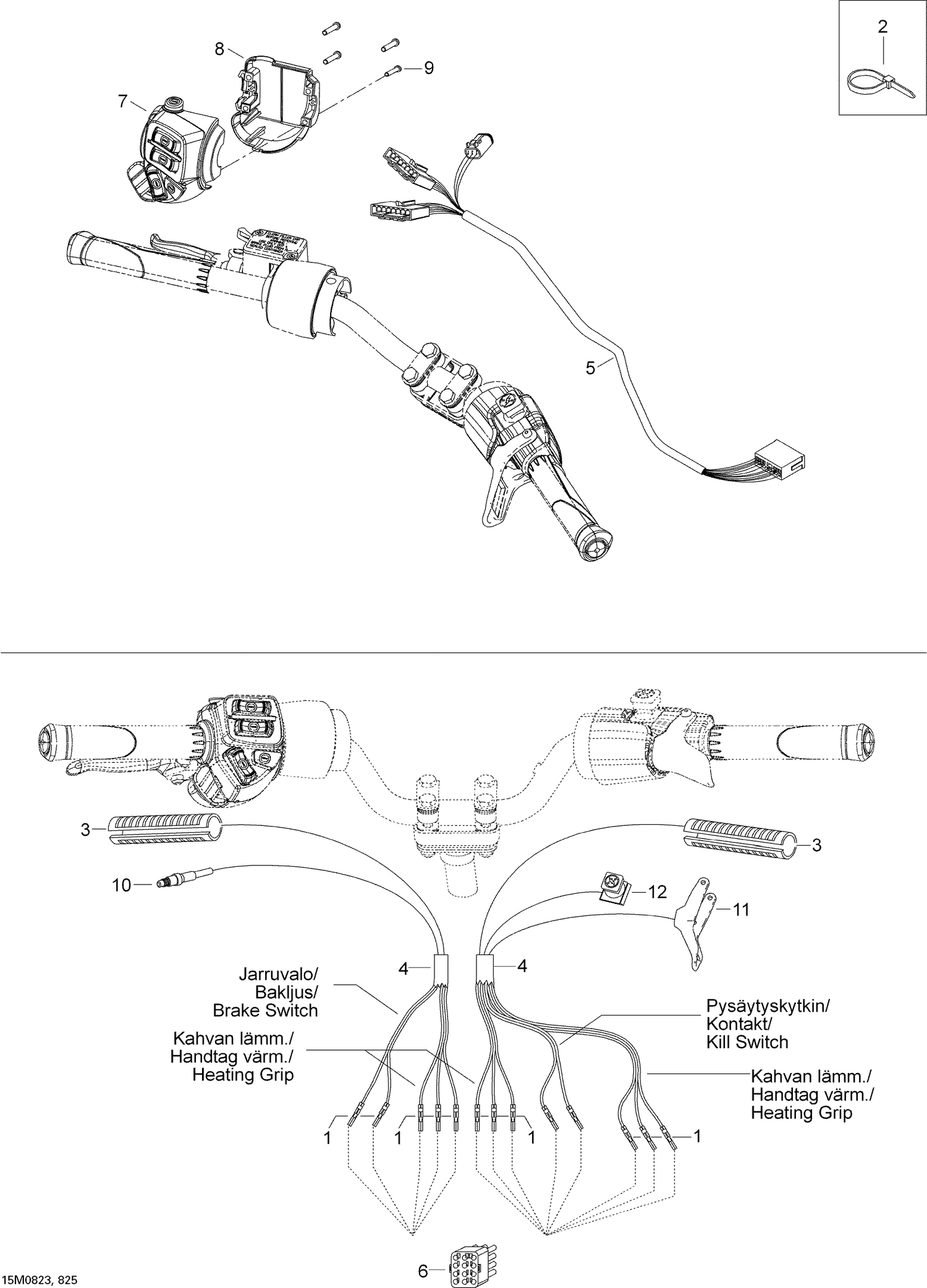

10- Steering Wiring Harness
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605642628 | CONNECTOR - Call your local BRP dealership |
| 2 | 414115200 | Tie-Rap 180 mm |
| 2 | M27100 | Tie Rap 290 Mm |
| 3 | 515175664 | Heating Grip |
| 4 | XXX | Not Available As Spare Parts |
| 5 | 605153275 | Harness Ass'y |
| 6 | M42617 | Male Connector Housing |
| 7 | 515176015 | LH SWITCH HOUSING - Call your local BRP dealership |
| 8 | 515175926 | Switch Housing Plate |
| 9 | M40903 | Screw 3.5X25 |
| 10 | 507032366 | Microswitch |
| 11 | 512059481 | Throttle Handle |
