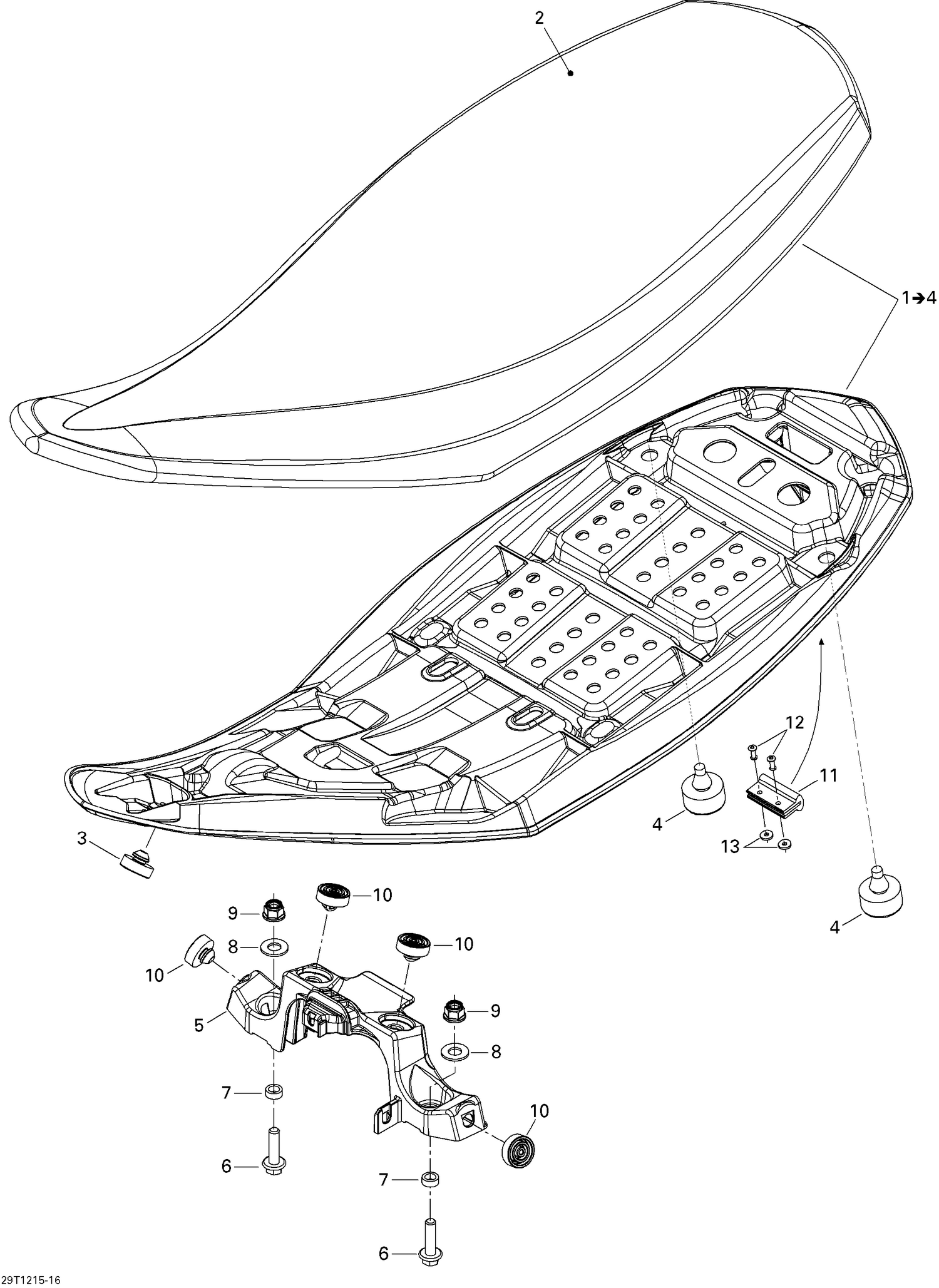

09- Seat
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 708000729 | Seat Cover |
| 3 | 708000506 | Rubber Stopper |
| 4 | 708000758 | Rubber Stopper |
| 5 | 705201407 | SEAT GUIDE - Call your local BRP dealership |
| 6 | 207683034 | Hex. Flange Screw M8 X 30 |
| 7 | 293900067 | BUSHING - Call your local BRP dealership |
| 8 | 234001410 | Flat Washer 10 mm |
| 9 | 233281434 | Hex. Flange Elastic Nut M8 |
| 10 | 708000506 | Rubber Stopper |
| 11 | 705201353 | ANCHOR - Call your local BRP dealership |
| 12 | 293150015 | Pop Rivet 1/8” |
