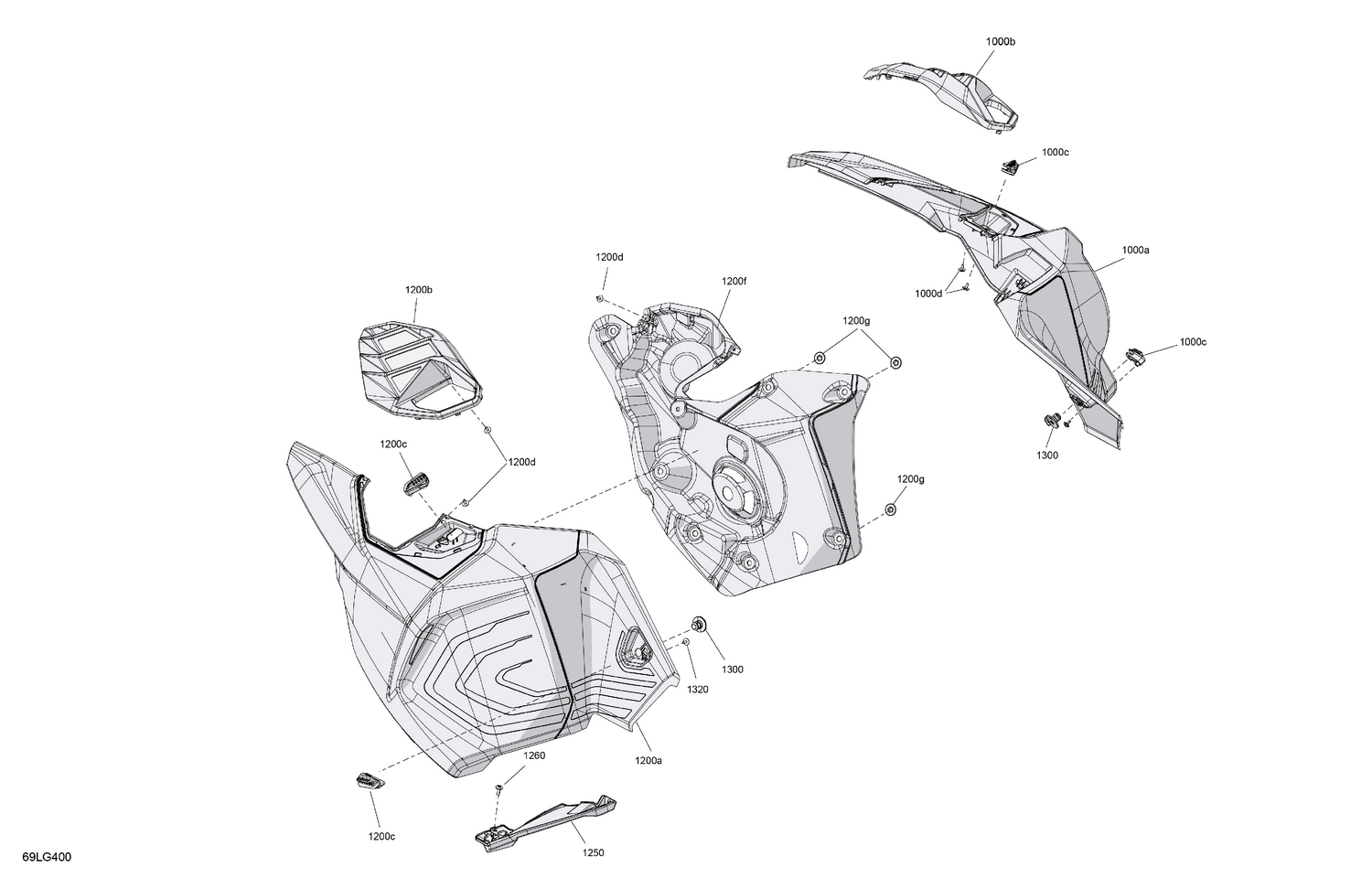

07- Body - Side Panels
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1000a | 517306823 | RH Side Panel 20" With Gearbox |
| 1000b | 517308589 | Deep Black, RH Grille Trim |
| 1000c | 517305773 | RH Rear Latch |
| 1000d | 250000805 | Plastite Screw M4 X 10 |
| 1200a | 517309389 | Panel LH Deep Black, |
| 1200b | 517308684 | Deep Black, LH Grille Trim |
| 1200c | 517308590 | Acoustic Panel |
| 1200d | 508000853 | Push Nut |
| 1200f | 517305774 | LH Rear Latch |
| 1200g | 250000805 | Plastite Screw M4 X 10 |
| 1250 | 517309750 | Guard_Snow LH |
| 1260 | 250000721 | Torx Truss Screw M6 X 16 |
| 1300 | 517305985 | Rear Stud |
