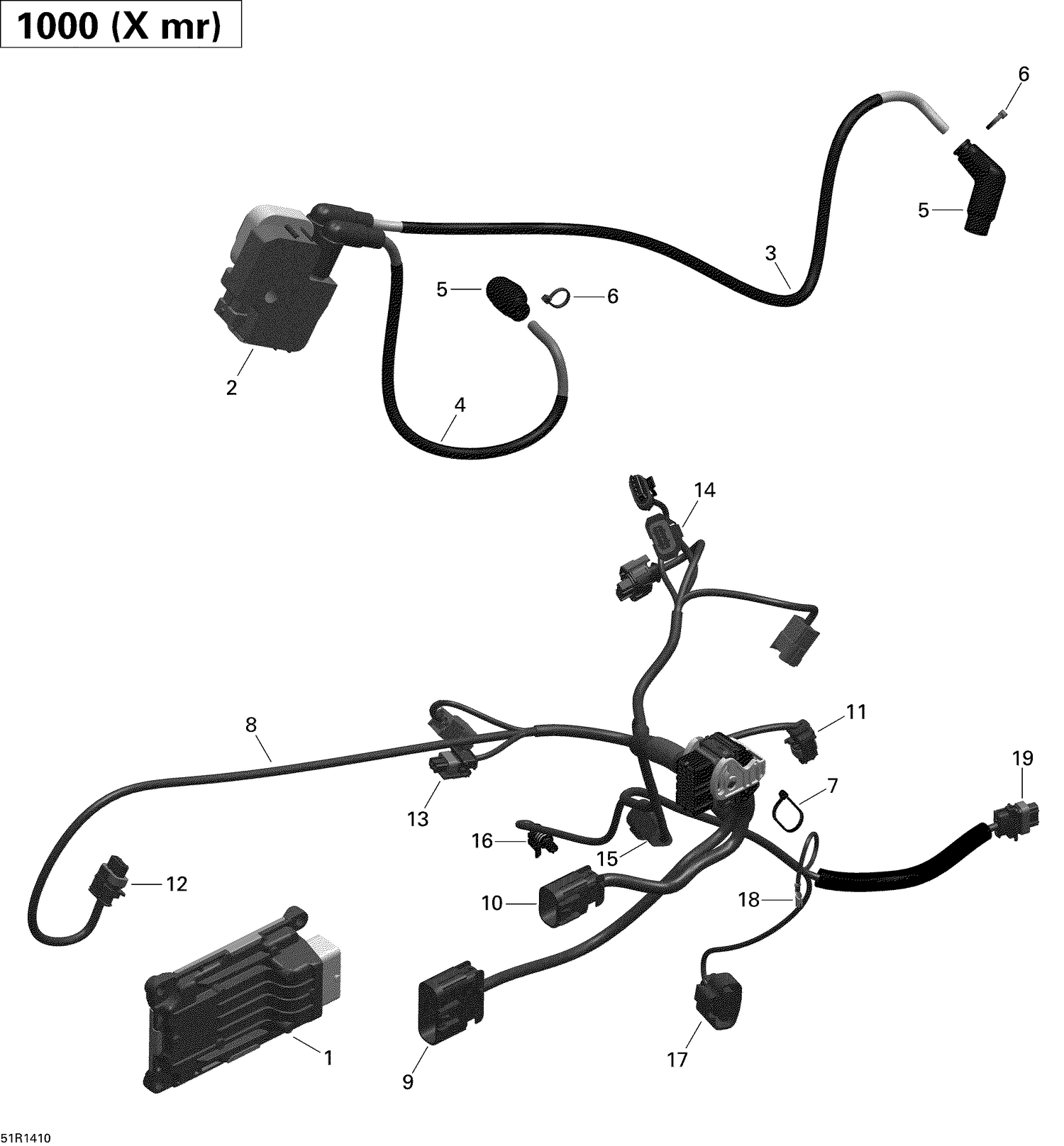

| Ref | Part Number | Description |
|---|
| 1 |
420266966 |
ECM CONNECTOR - Call your local BRP dealership |
| 2 |
278001546 |
Ignition Coil |
| 3 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420665330. |
| 4 |
420665333 |
Spark Plug Cable, 790 mm, Rear This part replaces 420664300. |
| 5 |
420265248 |
Spark Plug Connector |
| 6 |
420866710 |
Tie Rap |
| 7 |
293750001 |
Tie Wrap 94 mm |
| 9 |
Not |
Available As Spare Part - Housing |
| 10 |
Not |
Available As Spare Part - Housing |
| 11 |
278001005 |
Male Housing, 2 Circuits |
| 12 |
278000997 |
Male Housing, 3 Circuits |
| 13 |
278001005 |
Male Housing, 2 Circuits |
| 14 |
278001829 |
Housing Connector, 3 Circuits |
| 15 |
278002378 |
Male Housing This part replaces 409207000. |
| 16 |
278001012 |
Male Housing, 1 Circuit |
| 17 |
710000329 |
Male Housing, 4 Circuits |
| 18 |
Not |
Available As Spare Part - Female Terminal |
