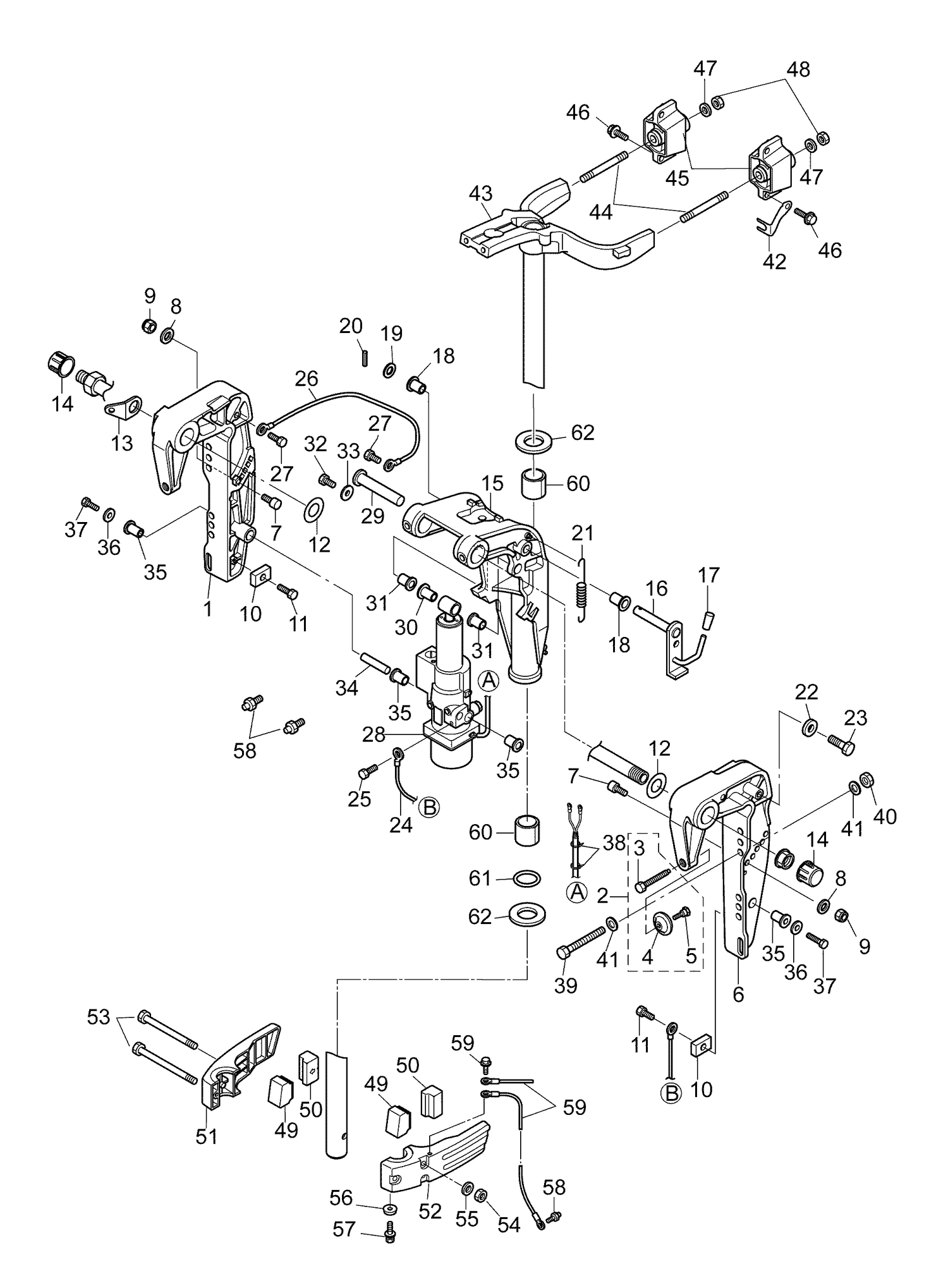

16-4_STERN & SWIVEL BRACKET (POWER TILT)
Parts (42)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5040790 | CLAMP SCREW KIT |
| 7 | 5041501 | TRIM LOCK PIN |
| 8 | 5041138 | Washer 8.1-16-1.5 |
| 9 | 5041458 | NYLON NUT |
| 10 | 5041015 | Anode |
| 13 | 5040319 | PLATE |
| 14 | 5040070 | CAP NUT BRACKET BOLT |
| 15 | 5041848 | SWIVEL BRACKET ASSEMBLY |
| 16 | 5041494 | TILT STOPPER |
| 17 | 5040153 | TILT STOPPER GRIP |
| 18 | 5040110 | Collar 10.2-12-12 |
| 20 | 5041689 | SPRING PIN |
| 21 | 5041146 | TILT STOPPER SPRING |
| 22 | 5040057 | Washer 6.5-23-1.5 |
| 24 | 5040243 | GROUND L=130 |
| 25 | 5041557 | BOULON This part replaces 5041530. |
| 26 | 5040243 | GROUND L=130 |
| 27 | 5041557 | BOULON This part replaces 5041530. |
| 28 | 5041847 | POWER TRIM & TILT HYDRAULIC ASSEMBLY |
| 29 | 5041152 | CYLINDER PIN (UPPER) |
| 30 | 5041499 | Bushing 13-16-31 |
| 31 | 5041153 | BUSHING 13-17-19.5 |
| 33 | 5040057 | Washer 6.5-23-1.5 |
| 34 | 5041500 | CYLINDER PIN (LOWER) |
| 35 | 5041499 | Bushing 13-16-31 |
| 36 | 5040011 | Washer 8.5-28-1 |
| 37 | 5041552 | BOLT |
| 39 | 5041555 | BOLT |
| 41 | 5041669 | WASHER |
| 42 | 5041220 | Lock Plate Water Pipe |
| 43 | 5041866 | STEERING SHAFT ASSEMBLY |
| 44 | 5041209 | Stud Bolt 10-95 |
| 48 | 5041656 | NYLON NUT |
| 49 | 5040675 | DAMPER (LOWER) |
| 50 | 5040674 | RUBBER MOUNT (LOWER) |
| 53 | 5041554 | BOLT |
| 55 | 5041138 | Washer 8.1-16-1.5 |
| 57 | 5041533 | BOLT |
| 58 | 5040055 | GREASE FITTING |
| 60 | 5041211 | Bushing 28-31-35 |
| 61 | 5041082 | O-Ring 3.5-25.7 |
| 62 | 5041083 | THRUST PLATE |
