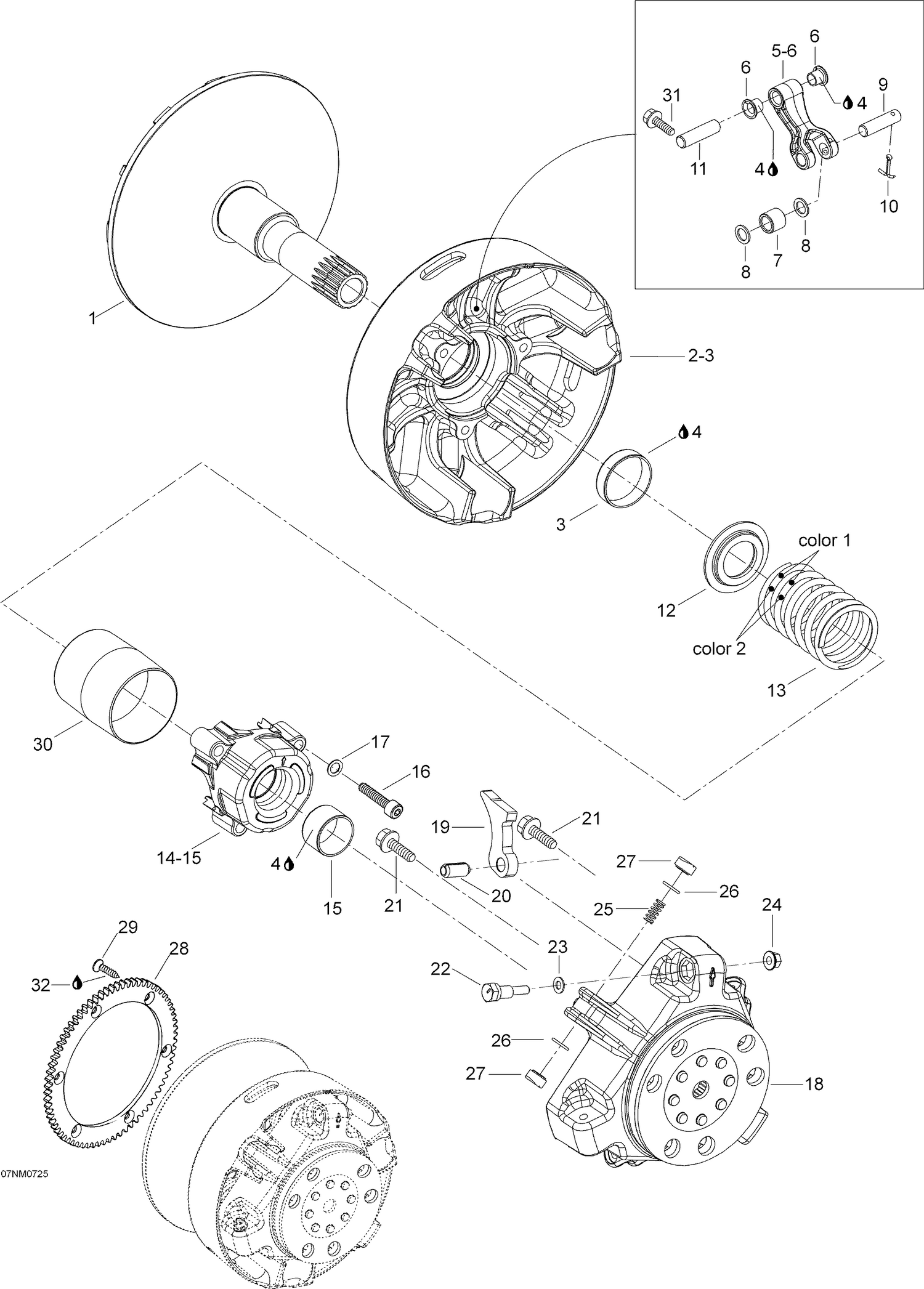

| Ref | Part Number | Description |
|---|
| 1 |
417222777 |
FIXE FLANGE - Call your local BRP dealership |
| 2 |
417222181 |
Sliding flange |
| 3 |
417004201 |
Bushing outer half |
| 4 |
413703100 |
Loctite 609 |
| 6 |
417004305 |
Flange bushing |
| 7 |
417222947 |
Roller This part replaces 417003900. |
| 8 |
417004302 |
Thrust washer |
| 10 |
250400060 |
Cotter Pin This part replaces 732958001. |
| 11 |
417223164 |
Lever Axle This part replaces 417009202. |
| 12 |
417222312 |
Spring seat |
| 15 |
417009204 |
Spring cover bushing |
| 16 |
205084044 |
Socket head screw M6 x 40 |
| 17 |
250200009 |
Washer |
| 18 |
417222213 |
Gouvernor cup ass'y |
| 20 |
250400050 |
Spring Pin M10 X 22 This part replaces 250400009. |
| 21 |
250000418 |
Flanged Hex. Screw M6 X 18, Scotch Grip This part replaces 250000059. |
| 22 |
417222955 |
CALIBRATION SCREW - Call your local BRP dealership This part replaces 417005500. |
| 23 |
417005600 |
Washer |
| 24 |
233061414 |
Locking nut M6 |
| 25 |
417005700 |
Spring |
| 26 |
732401030 |
O-Ring |
| 27 |
417223021 |
Slider Shoe This part replaces 417005800. |
| 28 |
417223043 |
RING GEAR - Call your local BRP dealership This part replaces 417222831. |
| 29 |
250000049 |
HEX. TORX SCREW M8 X 14.5 - Call your local BRP dealership |
| 30 |
417009205 |
Protector |
| 31 |
250000412 |
Flanged Hex. Screw M6 X 12, Scotch Grip This part replaces 210361296. |
