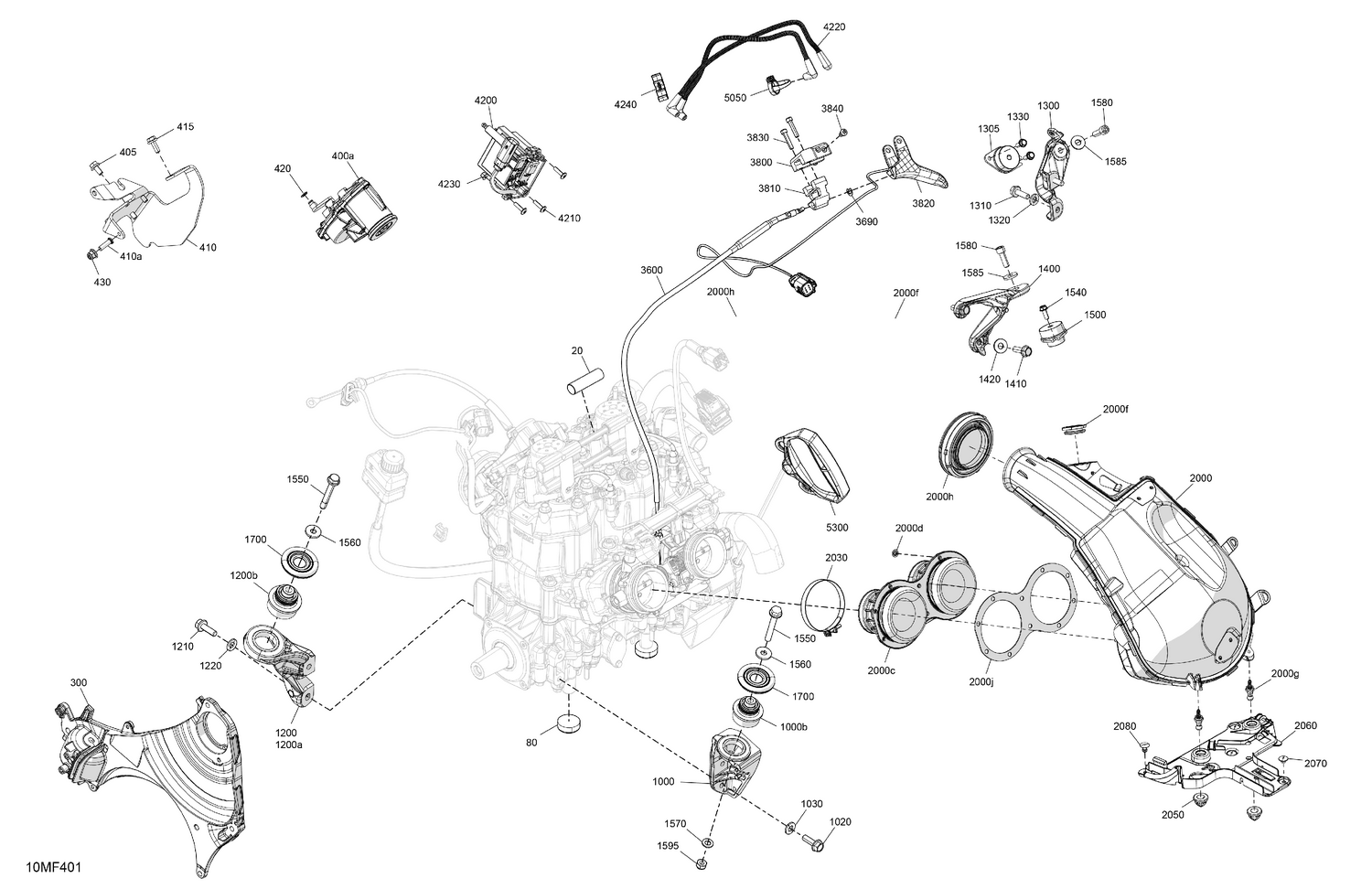

02- Engine - System
Parts (57)
| Ref | Part Number | Description |
|---|---|---|
| 20 | 515178492 | Braided Sleeve 60MM Long |
| 80 | 512061204 | Stopper |
| 300 | 512061696 | LH Machined Brace This part replaces 512061447. |
| 400a | 420889432 | Servo Motor Ass'y |
| 405 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 410a | 250300027 | Clinch Stud M6 X 20 |
| 415 | 207661636 | Hex. Flange Screw M6 X 16 |
| 420 | 293370122 | Circlip |
| 430 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 1000b | 512061582 | Vibration Damper |
| 1020 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1030 | 250200146 | Conical Spring Washer M8 |
| 1200a | 512061419 | SUPPORT_ENGINE FL - Call your local BRP dealership |
| 1200b | 512061582 | Vibration Damper |
| 1210 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1220 | 250200146 | Conical Spring Washer M8 |
| 1300 | 512061439 | RH Front Engine Support |
| 1305 | 512061454 | Vibration Damper |
| 1310 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1320 | 250200146 | Conical Spring Washer M8 |
| 1330 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1400 | 512061411 | RH Rear Engine Support Ass'y |
| 1410 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 1420 | 250200146 | Conical Spring Washer M8 |
| 1500 | 512061454 | Vibration Damper |
| 1540 | 250001062 | Hex. Flange Screw M6 X 16 |
| 1550 | 207586046 | Hex. Flange Screw Din.6921 S.Grip M8 x 60 |
| 1560 | 503183200 | Yellow, Washer |
| 1570 | 250200008 | Flat Washer With Teflon 8 mm |
| 1580 | 205082544 | Socket Head Screw M8 X 25 |
| 1585 | 503183200 | Yellow, Washer |
| 1595 | 232581414 | Hex. Elastic Stop Nut M8 |
| 1700 | 512061598 | Engine Stopper |
| 2000c | 508001006 | Intake Adapter |
| 2000d | 732610072 | Push Nut |
| 2000f | 512061083 | Rubber |
| 2000g | 420441840 | Screw |
| 2000h | 508000805 | Boot |
| 2000j | 508000845 | Intake Plate |
| 2030 | 293650212 | GEMI Clamp |
| 2050 | 420201630 | Rubber Cap |
| 2060 | 512061274 | Airbox Support |
| 2070 | 293150291 | Black, Pop Rivet 3/16 X ,425 |
| 2080 | 293150292 | Black, Pop Rivet 3/16 X ,550 |
| 3600 | 512061295 | Throttle Cable |
| 3690 | 414274500 | Circlip |
| 3800 | 512061365 | Upper Housing |
| 3810 | 512061294 | Lower Housing |
| 3820 | 512061266 | Throttle Ass'y |
| 3830 | 205052544 | Socket Screw M5 X 25 |
| 3840 | 250000991 | Flange Screw M5x12 |
| 4200 | 512061168 | Ignition Coil |
| 4210 | 250000724 | Torx Screw M5 X 20 |
| 4220 | 512061609 | Spark Plug Cable Ass'y |
| 4230 | 233251494 | Elastic Flange Nut M5 |
| 4240 | 512061238 | Spark Plug Wire Holder |
| 5050 | 512060993 | Clamp |
