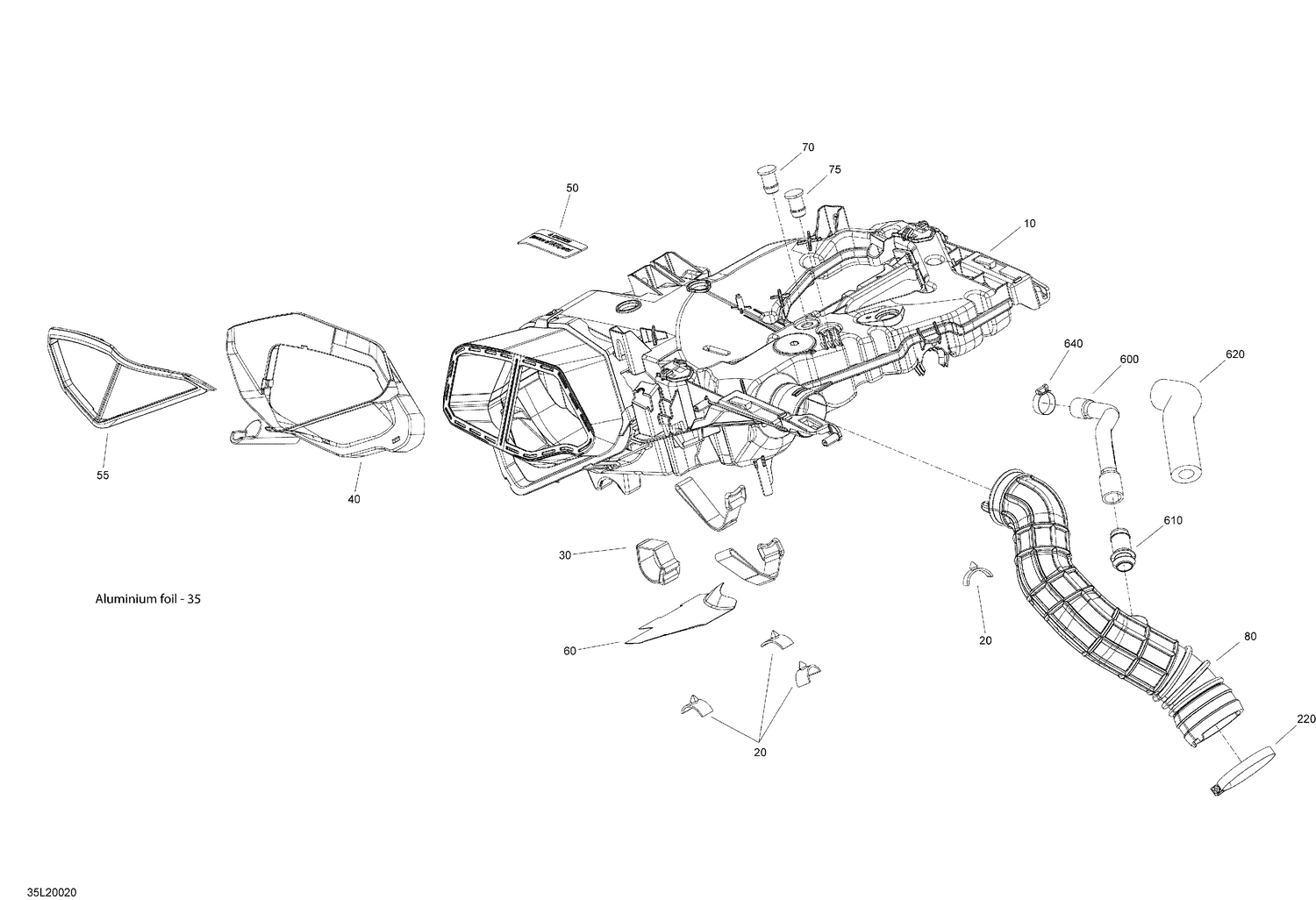

02- Engine - Air Intake
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 508000715 | Secondary Chamber Ass'y |
| 20 | 508000537 | Stopper |
| 30 | 508000820 | Velcro-Strip |
| 35 | 44110 | Aluminum Foil |
| 40 | 508001021 | Adapter |
| 50 | 516006903 | Hot Parts Decal |
| 55 | 508000609 | Air Filter |
| 60 | 508000622 | Reflective Sheet |
| 70 | 572092900 | Cap |
| 75 | 572092900 | Cap |
| 80 | 508000838 | Air Intake Hose |
| 220 | 293650229 | Gemi Clamp |
| 600 | 508000746 | Hose Vent |
| 610 | 273000234 | Breather |
| 620 | 508000648 | Tube Isolator |
