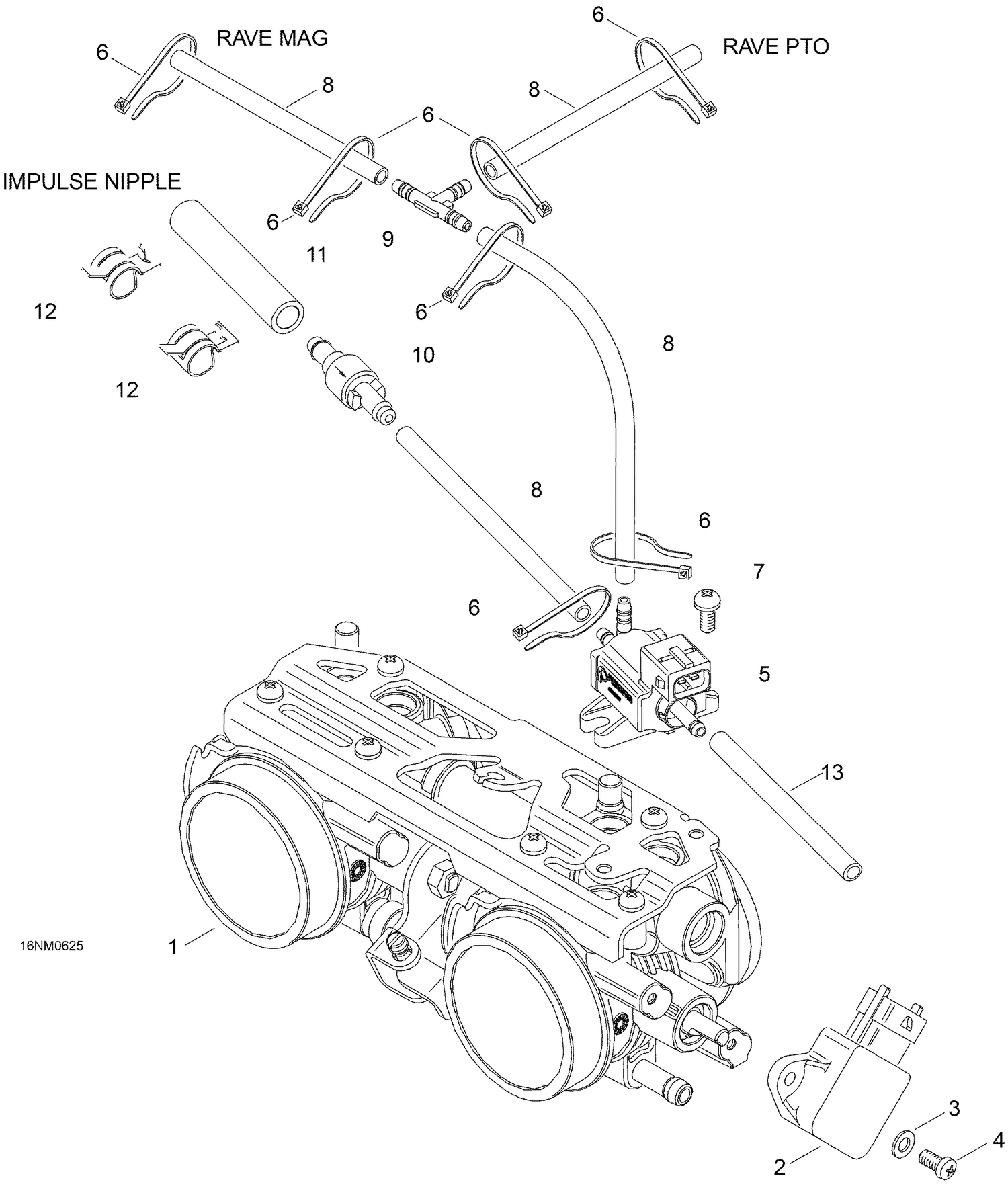

02- Throttlebody
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420889195 | Throttle body ass'y |
| 2 | 420866120 | Position Sensor This part replaces 270000251. |
| 3 | 234041600 | Washer |
| 4 | 208641660 | Screw M4 x 16 |
| 5 | 420664630 | Solenoid valve |
| 6 | 420866720 | Tie Rap This part replaces 420866718. |
| 7 | 420940011 | SCREW M5 X 10 - Call your local BRP dealership |
| 8 | 420660571 | Air hose, 180 mm |
| 9 | 293710068 | T-Fitting This part replaces 420660550. |
| 10 | 420660540 | Check valve |
| 11 | 420660562 | PRESSURE LINE - Call your local BRP dealership |
| 12 | 293650214 | Spring Clamp This part replaces 420853510. |
