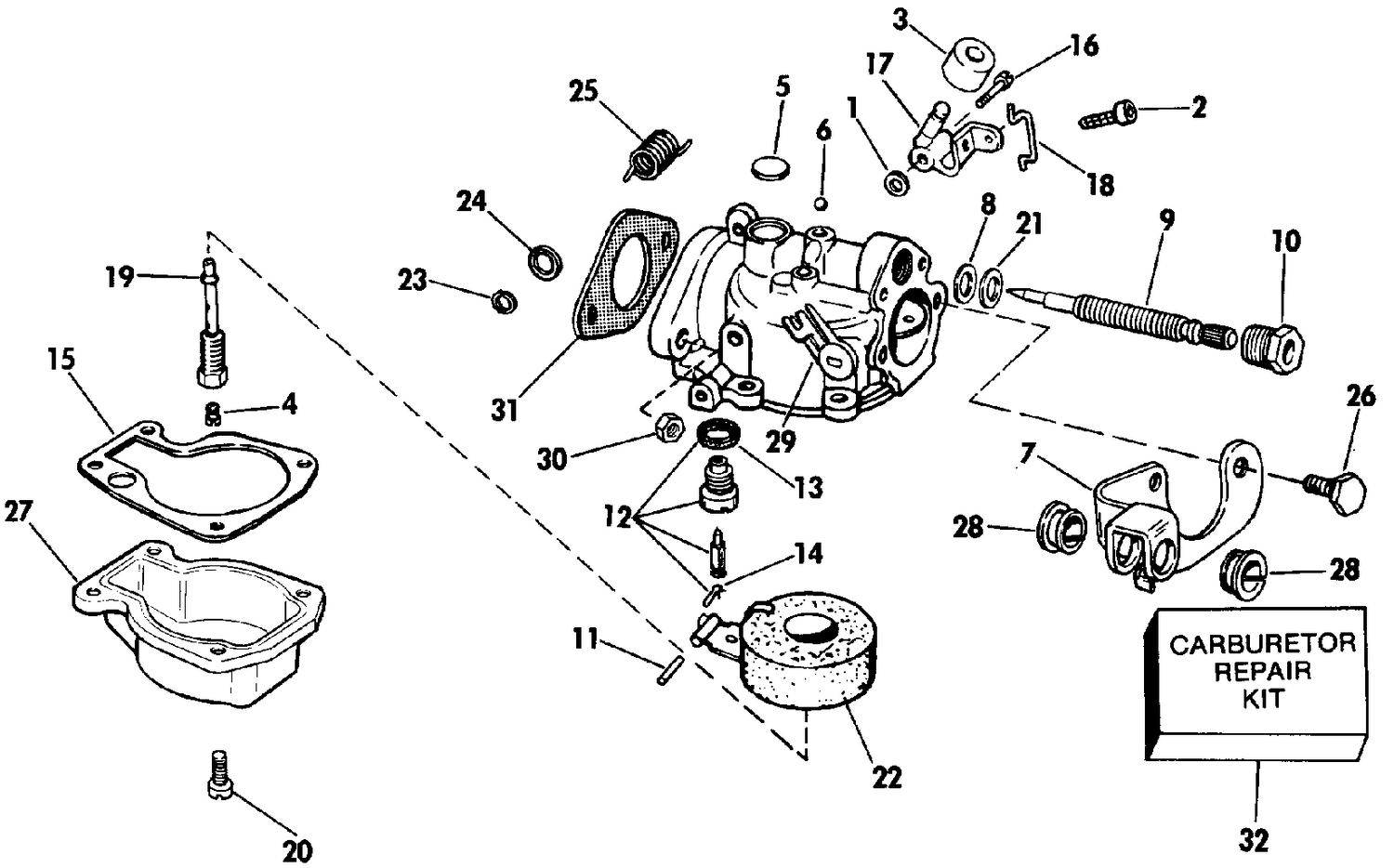

CARBURETOR
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 0325050 | ADAPTER, Choke plate to carb |
| 9 | 0431634 | NEEDLE VALVE ASSY., Slow speed adjustment |
| 14 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 15 | 0338878 | GASKET This part replaces 0331499. |
| 18 | 0330192 | LINK, Cam follower |
| 20 | 0330133 | SCREW, Breaker plate |
| 23 | 0203949 | E RING LINK This part replaces 0202755. |
| 26 | 0322285 | PLATE & SLEEVE ASSY. |
| 27 | 0330881 | FLOAT CHAMBER |
| 28 | 0318194 | BUSHING |
| 29 | 0324658 | LEVER, Choke shaft |
| 30 | 0328742 | NUT |
| 31 | 0323452 | GASKET |
| 0397524 | 0397524 | CARBURETOR ASSY. |
