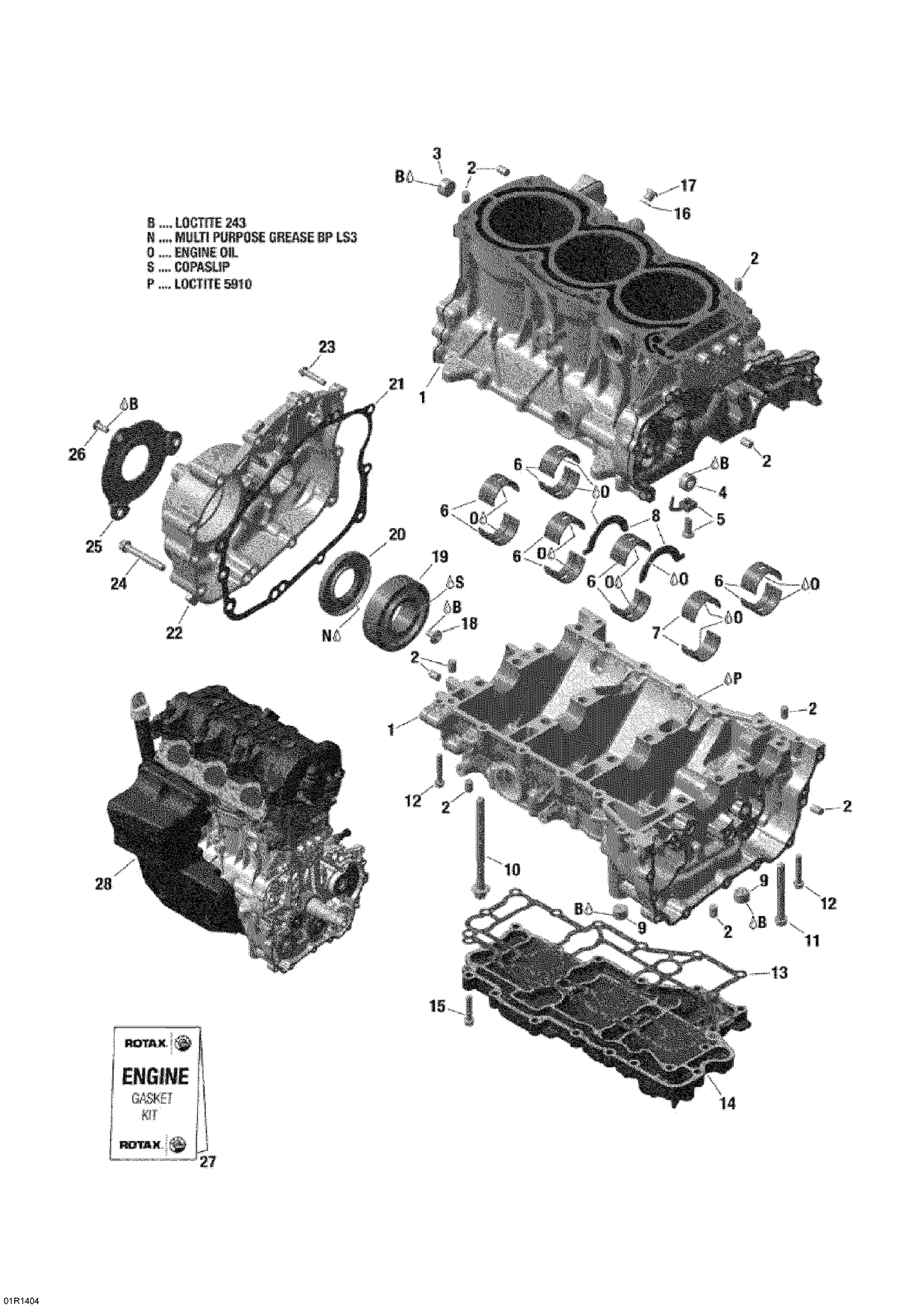

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| N |
Not |
Available As Spare Part - Dow Corning 111, 150 g |
| O |
779287 |
OIL 4T 0W40 SYNTHETIC 3,785L EU - Call your local BRP dealership This part replaces 619590115. |
| S |
619600013 |
Loctite 8151, anti seize |
| 2 |
420632010 |
Center Pin 8 X 12 |
| 3 |
420840410 |
Plug Screw M18 X 1.5-MK |
| 4 |
420240170 |
Plug Screw M18 X 1.5 |
| 5 |
420956826 |
OIL SPRAY NOZZLE - Call your local BRP dealership This part replaces 420956774. |
| 6 |
420933852 |
Plain Bearing |
| 7 |
420933862 |
Plain Bearing |
| 8 |
420933140 |
Ring Half 40,5X60X1,95 |
| 9 |
420240178 |
SCREW PLUG M16 X 1.5 - Call your local BRP dealership |
| 10 |
420940945 |
Flanged Torx Screw M9 X 113 |
| 11 |
420840211 |
Flanged Torx Screw M8 X 70 |
| 12 |
420440274 |
Flanged Torx Screw M6 X 35 |
| 13 |
420430770 |
Gasket |
| 14 |
420611822 |
OIL SUMP COVER - Call your local BRP dealership |
| 15 |
420440647 |
Flanged Torx Screw M6 X 30 |
| 16 |
420230150 |
Oil Seal |
| 17 |
420641733 |
Plug Screw M10 X 1 |
| 18 |
420241537 |
HEX. FLAT HEAD SCREW M6 X 13 T30 This part replaces 420241535. |
| 19 |
420432125 |
Ball Bearing |
| 20 |
420431402 |
Oil Seal This part replaces 420431401. |
| 21 |
420430760 |
Gasket |
| 22 |
420611845 |
PTO Cover |
| 23 |
420440647 |
Flanged Torx Screw M6 X 30 |
| 24 |
420641213 |
Flanged Torx Screw M8 X 55 |
| 25 |
420910240 |
Oil Seal Cover |
| 26 |
420440906 |
Countersunk Screw M6 X 16 |
| 27 |
420893054 |
Engine Gasket Kit This part replaces 420893053. |
| 28 |
300120303 |
ENGINE 1203 LONG BLOCK - Call your local BRP dealership |
